Hot-selling and scarce 74HC164D 8-bit serial-in, parallel-out shift register SOP14 spot stock

Product Descriptions

The 74HC164; 74HCT164 are high-speed Si-gate CMOS devices and are pin compatible with Low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.

The 74HC164; 74HCT164 are 8-bit edge-triggered shift registers with serial data entry and an output from each of the eight stages. Data is entered serially through one of two inputs (DSA or DSB); either input can be used as an active HIGH enable for data entry through the other input. Both inputs must be connected together or an unused input must be tied HIGH.

Data shifts one place to the right on each LOW-to-HIGH transition of the clock (CP) input and enters into Q0, which is the logical AND of the two data inputs (DSA and DSB) that existed one set-up time prior to the rising clock edge.

A LOW level on the master reset (MR) input overrides all other inputs and clears the register asynchronously, forcing all outputs LOW.​

Product Features

■ Gated serial data inputs

■ Asynchronous master reset

■ Complies with JEDEC standard no. 7A

■ ESD protection:

◆ HBM EIA/JESD22-A114-B exceeds 2000 V

◆ MM EIA/JESD22-A115-A exceeds 200 V.

■ Multiple package options

■ Specified from −40 °C to +85 °C and −40 °C to +125 °C.

Product Specification

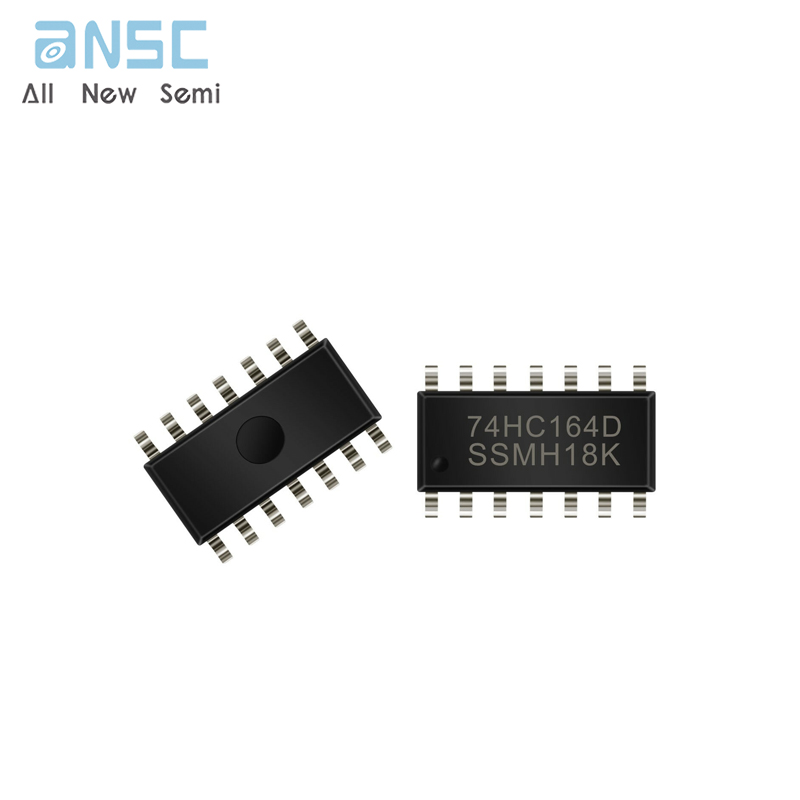

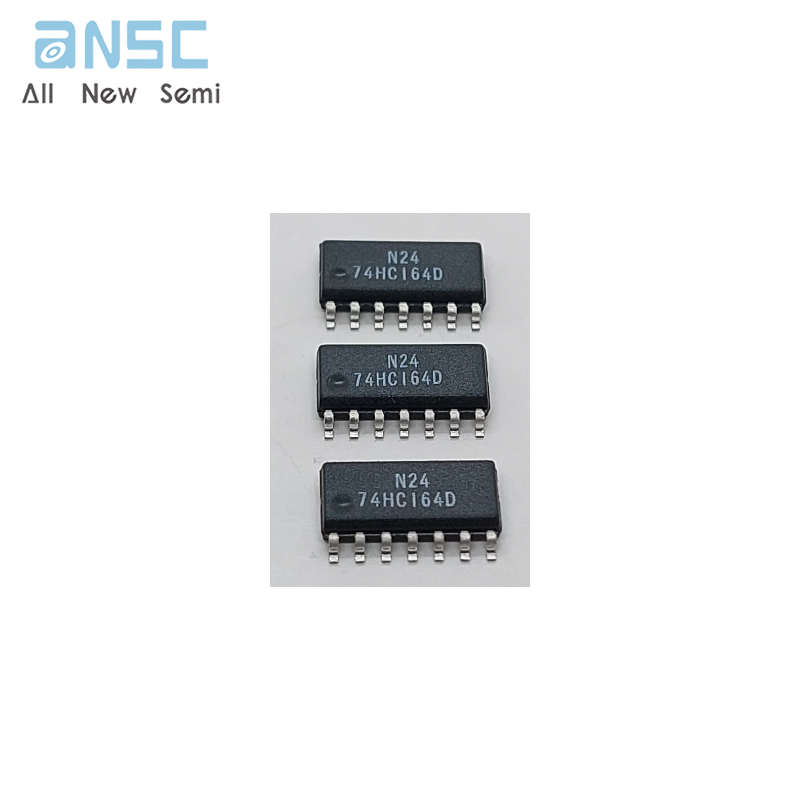

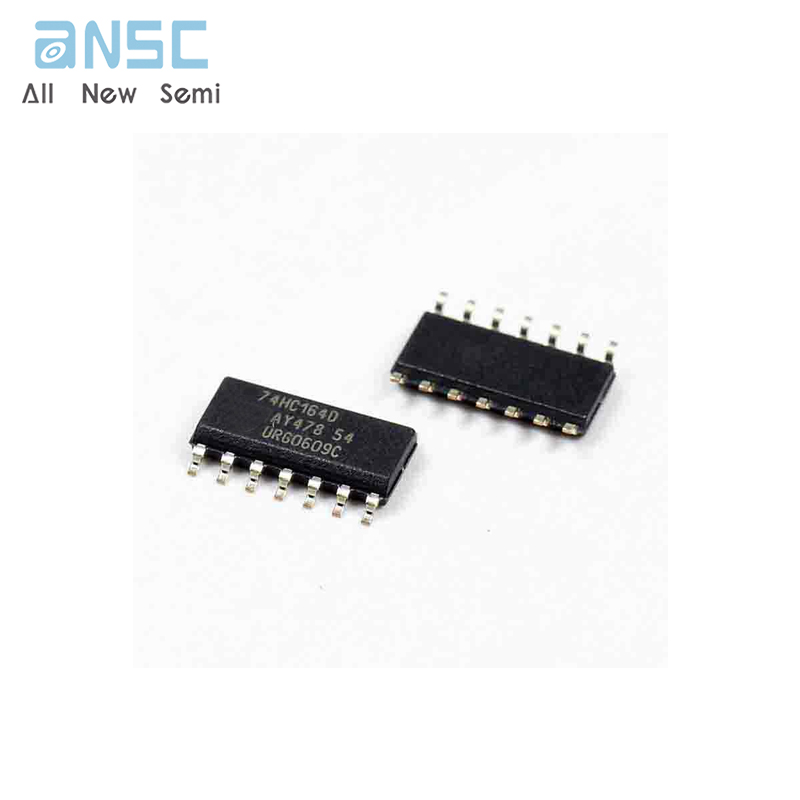

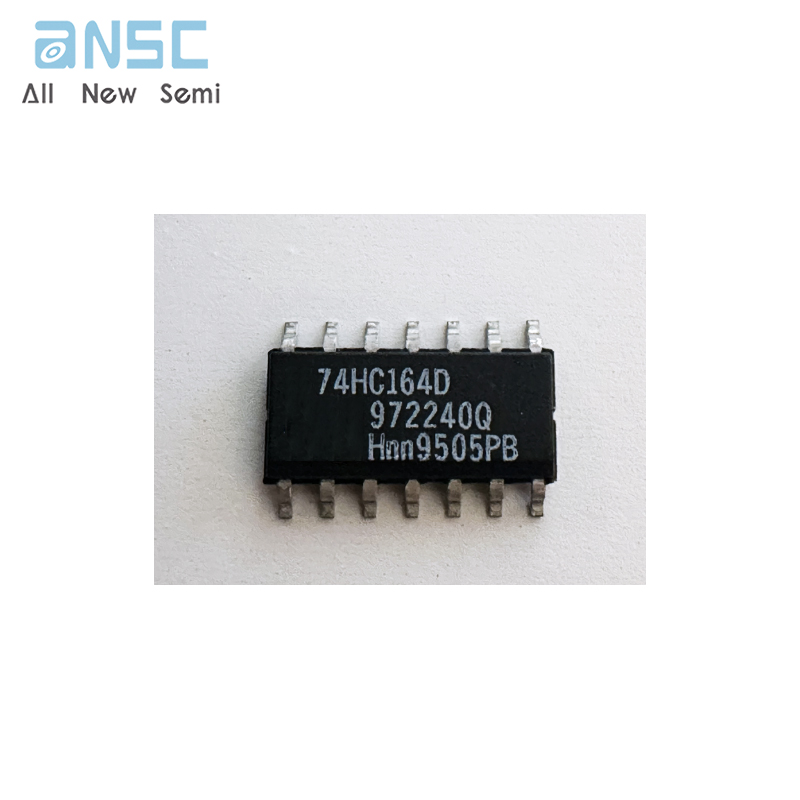

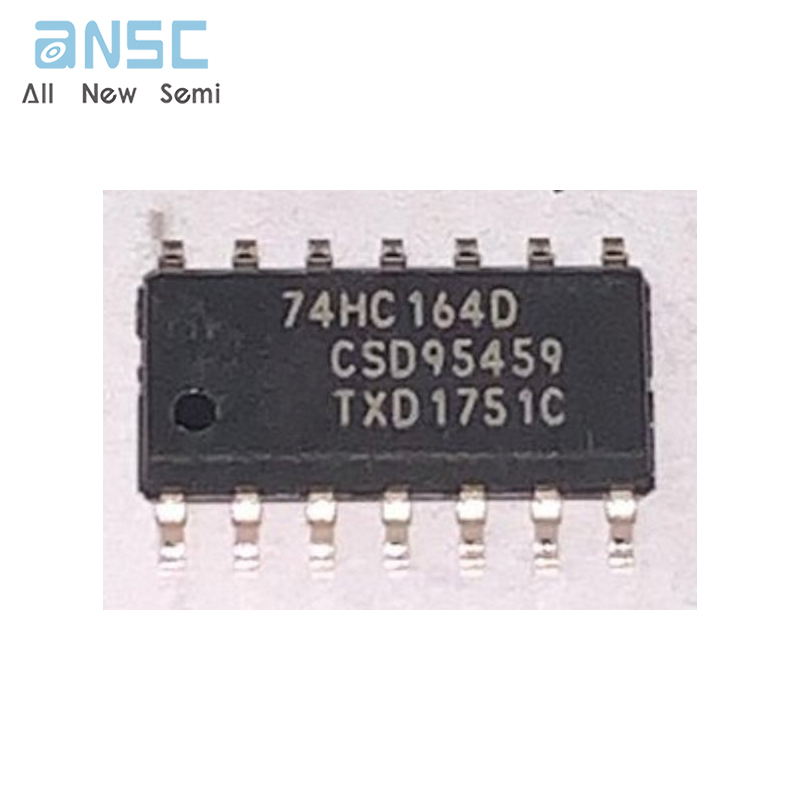

Product Photos

For more product information, please download the PDF
