Original spot sales of DS26528 Octal T1/E1/J1 Transceiver BGA

Product Descriptions

The DS26528 is a single-chip 8-port framer and line interface unit (LIU) combination for T1, E1, and J1 applications. Each channel is independently configurable, supporting both long-haul and short-haul lines.

Product Features

Eight Complete T1, E1, or J1 Long-Haul/ShortHaul Transceivers (LIU plus Framer)

Independent T1, E1, or J1 Selections for Each Transceiver

Internal Software-Selectable Transmit- and Receive-Side Termination for 100Ω T1 Twisted Pair, 110Ω J1 Twisted Pair, 120Ω E1 Twisted Pair, and 75Ω E1 Coaxial Applications

Crystal-Less Jitter Attenuator can be Selected for Transmit or Receive Path; Jitter Attenuator Meets ETS CTR 12/13, ITU-T G.736, G.742, G.823, and AT&T Pub 62411

External Master Clock can be Multiple of 2.048MHz or 1.544MHz for T1/J1 or E1 Operation; This Clock is Internally Adapted for T1 or E1 Usage in the Host Mode

Receive-Signal Level Indication from -2.5dB to -36dB in T1 Mode and -2.5dB to -44dB in E1 Mode in Approximate 2.5dB Increments

Transmit Open- and Short-Circuit Detection

LIU LOS in Accordance with G.775, ETS 300 233, and T1.231

Transmit Synchronizer

Flexible Signaling Extraction and Insertion Using Either the System Interface or Microprocessor Port

Alarm Detection and Insertion

T1 Framing Formats of D4, SLC-96, and ESF

J1 Support

E1 G.704 and CRC-4 Multiframe

T1-to-E1 Conversion

Product Applications

Routers

Channel Service Units (CSUs)

Data Service Units (DSUs)

Muxes

Switches

Channel Banks

T1/E1 Test Equipment

Product Specification

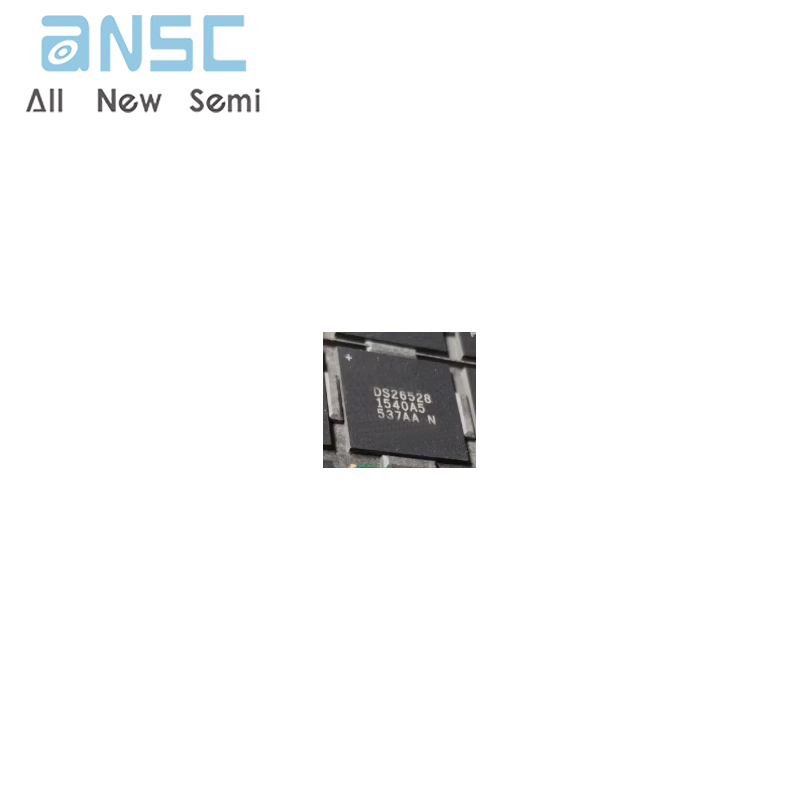

Product Photos

For more product information, please download the PDF
