Hot-selling and scarce ADE7758ARW Poly Phase Multifunction Energy Metering IC SOP28 spot stock

Product Descriptions

The ADE7758¹  is a high accuracy 3-phase electrical energymeasurement IC with a serial interface and two pulse outputs .The ADE7758 incorporates second-order ∑-∆ ADCs, a digitalintegrator, reference circuitry, temperature sensor, and all thesignal processing required to perform active, reactive, andapparent energy measurement and rms calculations .

The ADE7758 is suitable to measure active, reactive, andapparent energy in various 3-phase configurations, such asWYE or DELTA services, both with three or four wires . TheADE7758 provides system calibration features for each phase,i .e., rms offset correction, phase calibration, and powercalibration . The APCF logic output gives active powerinformation, and the VARCF logic output providesinstantaneous reactive or apparent power information .

Product Features

High accuracy, supports IEC 60687, IEC 61036, IEC 61268,

IEC 62053-21, IEC 62053-22, and IEC 62053-23

Compatible with 3-phase/3-wire, 3-phase/4-wire, and other

3-phase services

Less than 0.1% active energy error over a dynamic range of

1000 to 1 at 25°C

Supplies active/reactive/apparent energy, voltage rms,

current rms, and sampled waveform data

Two pulse outputs, one for active power and the other

selectable between reactive and apparent power with

programmable frequency

Digital power, phase, and rms offset calibration

On-chip user programmable thresholds for line voltage SAG

and overvoltage detections

On-chip digital integrator enables direct interface-to-current

sensors with di/dt output

A PGA in the current channel allows direct interface to

shunts and current transformers

A SPI® compatible serial interface with IRQ

Proprietary ADCs and DSP provide high accuracy over large

variations in environmental conditions and time

Reference 2.4 V (drift 30 ppm/°C typ) with external

overdrive capability

Single 5 V supply, low power (70 mW typ)

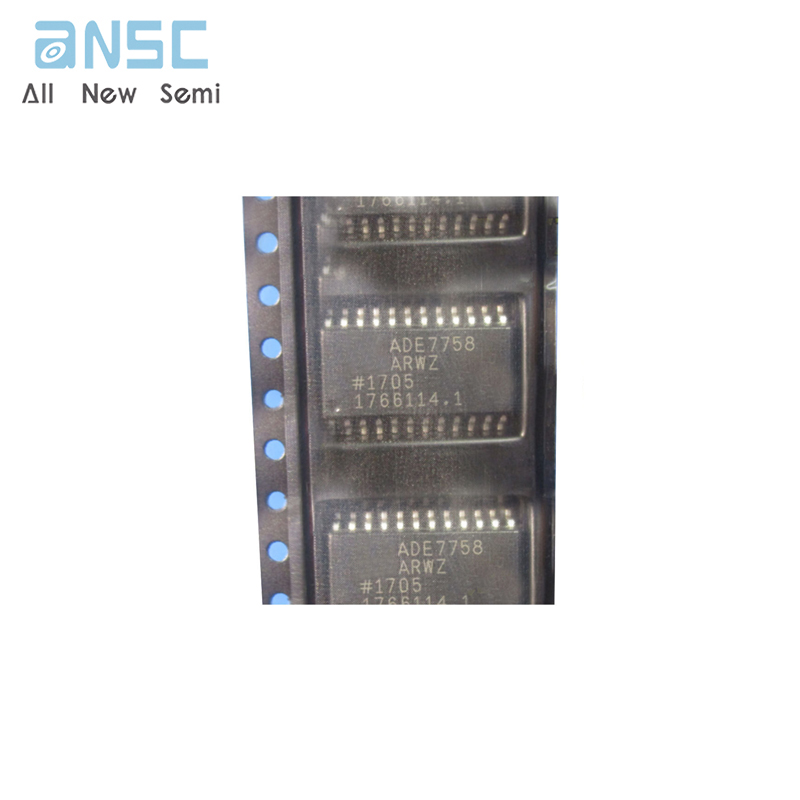

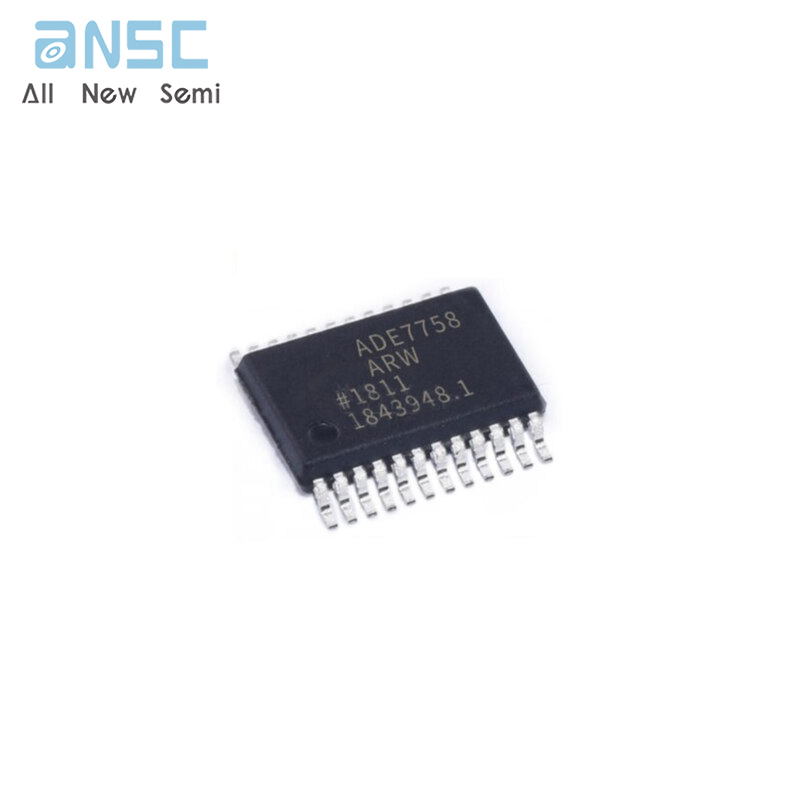

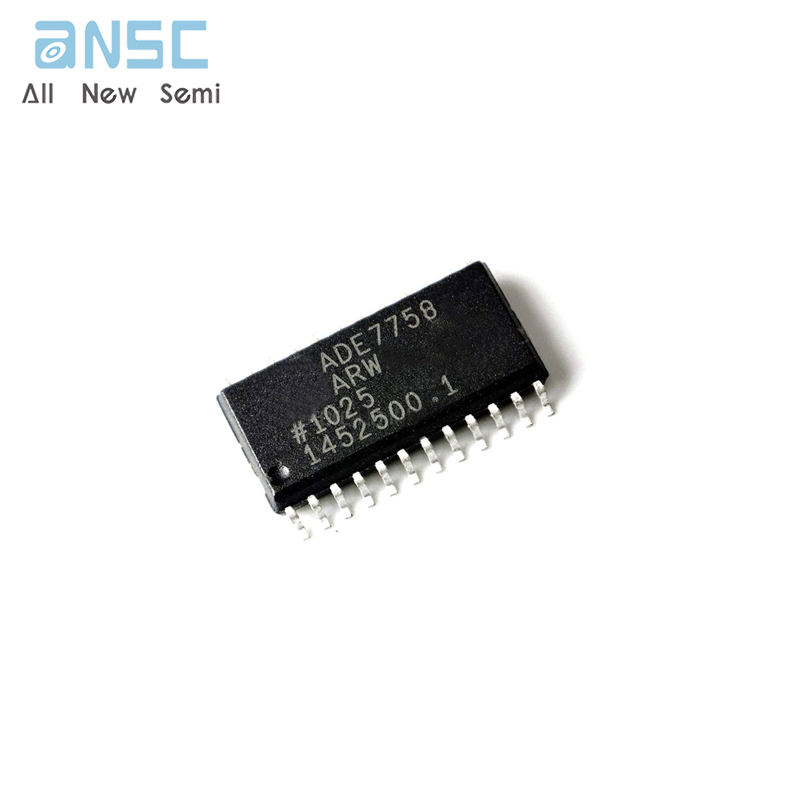

Product Photos

For more product information, please download the PDF
