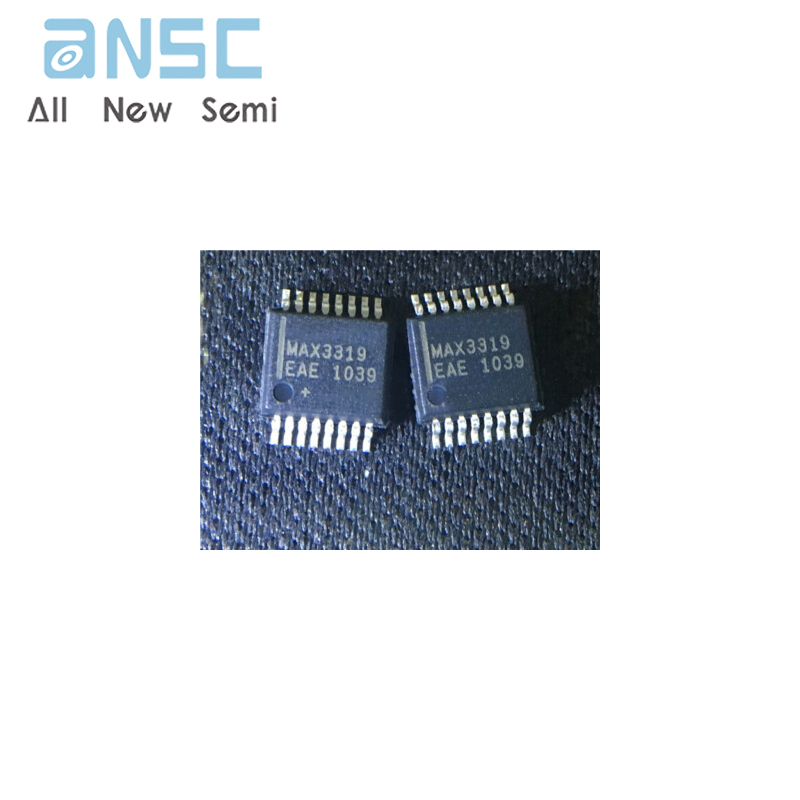

Hot-selling and scarce MAX3319EAE+ 2.5V 1uA 460kbps RS-232-Compatible Transceivers SSOP16 spot stock

Product Descriptions

The MAX3316–MAX3319 transceivers have a proprietary low-dropout transmitter output stage enabling RS-232- compatible performance from +2.25V to +3.0V with a dual-charge pump. These devices require only four 0.1µF capacitors, and are guaranteed to operate at data rates up to 460kbps.

The MAX3318/MAX3319 achieve a 1µA supply current using Maxim’s revolutionary AutoShutdown Plus™ feature. These devices automatically enter a low-power shutdown mode when the RS-232 cable is disconnected or the transmitters of the connected peripherals are inactive for more than 30 seconds. They turn on again when they sense a valid transition at any transmitter or receiver input. AutoShutdown Plus saves power without changes to the existing BIOS or operating system. The MAX3318 is a 2-Tx/2-Rx device while the MAX3319 is a 1-Tx/1-Rx device. These devices also feature a logic-level output (READY) that asserts when the charge pump is regulating and the device is ready to begin transmitting.

The MAX3316/MAX3317 are 2-Tx/2-Rx transceivers. The MAX3317 features a 1µA shutdown mode that can be entered by driving SHDN low. The MAX3317’s receivers remain active while in shutdown mode, allowing external devices such as modems to be monitored using only 1µA supply current.

These devices are available in space-saving packages: MAX3316 (16-pin SSOP and 20-pin TSSOP), MAX3317/ MAX3318 (20-pin SSOP and 20-pin TSSOP), and MAX3319 (16-pin SSOP).

Product Features    ​

♦ AutoShutdown Plus (MAX3318/MAX3319)

♦ 300µA Operating Supply Current

♦ 1µA Low-Power Shutdown with Receivers Active

♦ Guaranteed 460kbps Data Rate

♦ Guaranteed 4V/µs Slew Rate

♦ RS-232 Compatible Down to 2.25V

Product Applications

Palmtop Computers

Hand-Held Instruments

Pagers

Cellular Phones

GPS

Handy Terminals

Hand-Held Electronic Books
