TLP283
Description
TLP283 PROGRAMMABLE CONTROLLERS AC adapters for PDAs/ on-board power supplies I/O interface boards SOP4
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
TLP283 and TLP283-4 is a very small and thin coupler,suitable for surface mount assembly in applications such as on-board power supplies,programmable controllers.
TLP283 and TLP283-4 consist of photo transistor,optically coupled to a gallium arsenide infrared emitting diode.
Product Features
Collector-Emitter Voltage : 100 V (MIN)
Current Transfer Ratio : 100% (MIN)@IF=1mA
1 Pulse delay time(Note 1) : 100us(MAX)@IF=1mA,RL=10kΩ
Isolation Voltage : 2500 Vrms (MIN)
UL Recognized : UL1577 , File No. E67349
Note 1 : 1 Pulse delay time = tON+tOFF
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TLP283 |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | - |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Current Transfer Ratio (Max) | 400% @ 1mA |
| Turn On / Turn Off Time (Typ) | 7.5µs, 70µs |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 100V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-SOP |
| Base Product Number | TLP283 |

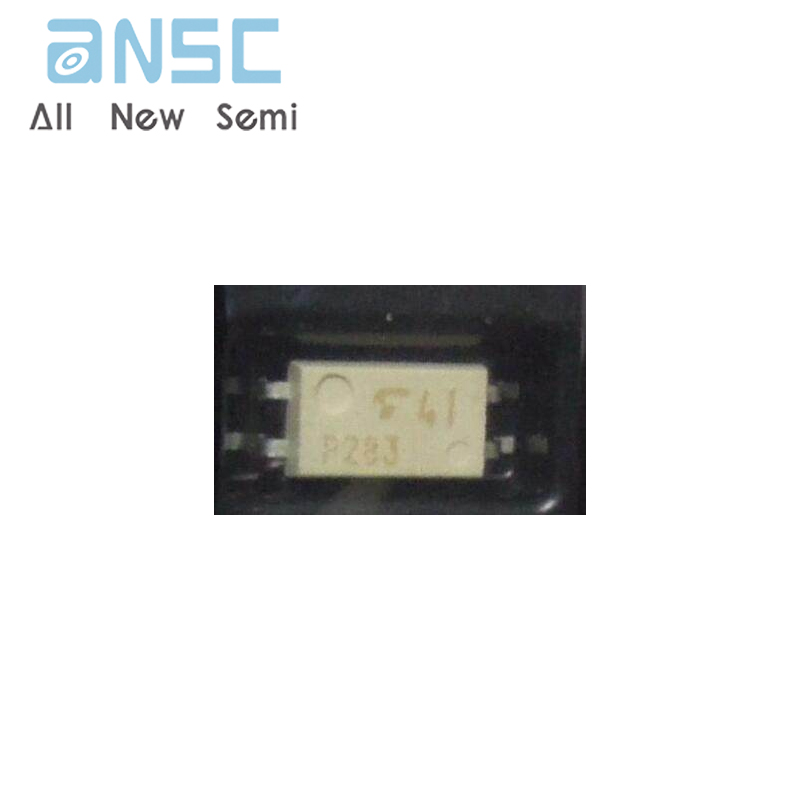

Product photos
