Hot-selling and scarce DS125BR820NJYR Low-Power 12.5 Gbps 8-Channel Linear Repeater WQFN-54 spot stock

Product Descriptions

The DS125BR820 is an extremely low-power highperformance repeater/redriver  designed to supporteight  channels carrying high speed interface up to12.5 Gbps, such as 40G-CR4, 40G-KR4, SAS/SATA,and PCIe .  The receiver's continuous time linearequalizer (CTLE) provides high frequency boost thatis programmable from 3 to 10 dB at 6 GHz (12 Gbps)followed by a linear output driver . The CTLE receiveris capable of opening an input eye that is completelyclosed due to inter symbol  interference (ISI) inducedby interconnect medium such as board traces or twinaxial-copper cables . The programmable equalizationmaximizes the flexibility of physical  placement withinthe interconnect   channel    and improves  overallchannel performance .

When operating in 40G-CR4/KR4,  SAS/SATA,  andPCIe  applications,   the  DS125BR820  preservestransmit  signal  characteristics,  thereby allowing thehost controller and the end point to negotiate transmit​ equalizer coefficients .  This transparency in the linktraining   protocol        facilitates   system  levelinteroperability and minimizes latency .

The programmable settings can be applied easily viapin control, software (SMBus or I2C), or direct loadingfrom an external  EEPROM .  In EEPROM mode, theconfiguration information is automatically loaded onpower  up,   thereby eliminating the need for  anexternal microprocessor or software driver .

Product Features

•   Low 70 mW/Channel (Typ) Power Consumption, with Option to Power Down Unused Channels

•   Seamless Link Training Support

•   Enables Host ASIC to Meet Front-Port Eye Mask Requirements over Longer Reach

•   Advanced Configurable Signal Conditioning I/O

– Receive CTLE up to 10 dB at 6 GHz

– Linear Output Driver

– Variable Output Voltage Range up to 1200 mVp-p

•   Programmable via Pin Selection, EEPROM, or SMBus Interface

•   Single Supply Voltage: 2.5 V or 3.3 V

•   −40°C to 85°C Operating Temperature Range

•   Flow-Thru Layout in 10 mm × 5.5 mm 54-Pin Leadless WQFN Package

Product Applications

•   Front-Port 40G-CR4/SR4/LR4 Link Extension

•   Backplane 40G-KR4 Link Extension

•   SAS/SATA/PCIe Link Extension

•   Other Proprietary High Speed Interfaces up to 12.5 Gbps

Product Specification

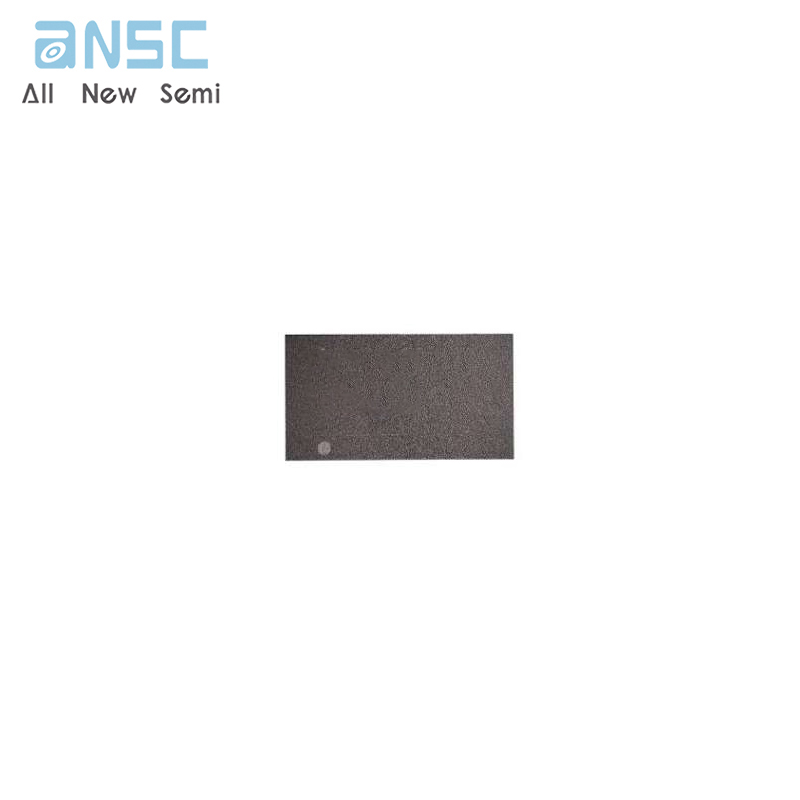

Product Photos

For more product information, please download the PDF
