Hot-selling and scarce TSOP34136 IR Receiver Modules for Remote Control Systems DIP-3spot stock
Manufacturer Product Number
TSOP34136
Description
TSOP34136 IR Receiver Modules for Remote Control Systems DIP-3spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TSOP341.., TSOP343.. series are miniaturized receivers for infrared remote control systems. A PIN diode and a preamplifier are assembled on a lead frame, the epoxy package acts as an IR filter.
The demodulated output signal can be directly decoded by a microprocessor. The TSOP341.. is compatible with all common IR remote control data formats. The TSOP343.. is optimized to better suppress spurious pulses from energy saving fluorescent lamps but will also suppress some data signals.
This component has not been qualified according to automotive specifications.
Product Features
• Very low supply current
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Improved shielding against EMI
• Supply voltage: 2.5 V to 5.5 V
• Improved immunity against ambient light
• Insensitive to supply voltage ripple and noise
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TSOP34136 |
| Category | Sensors, Transducers |
| Optical Sensors | |
| Photo Detectors - Remote Receiver | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Sensing Distance | 45m |
| B.P.F. Center Frequency | 36.0kHz |
| Voltage - Supply | 2.5 V ~ 5.5 V |
| Current - Supply | 350 µA |
| Orientation | Side View |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Base Product Number | TSOP34136 |

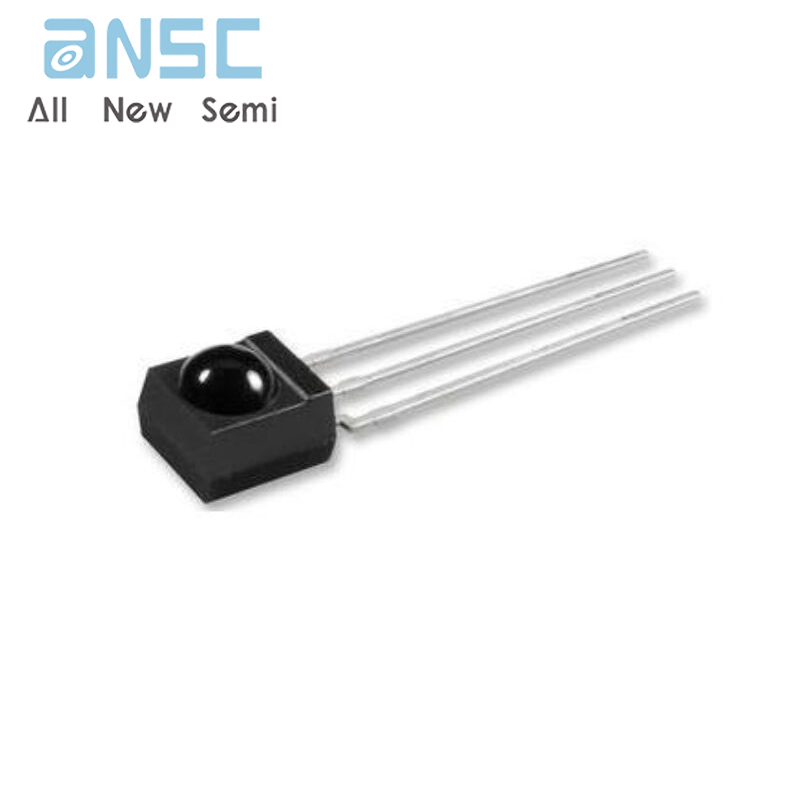

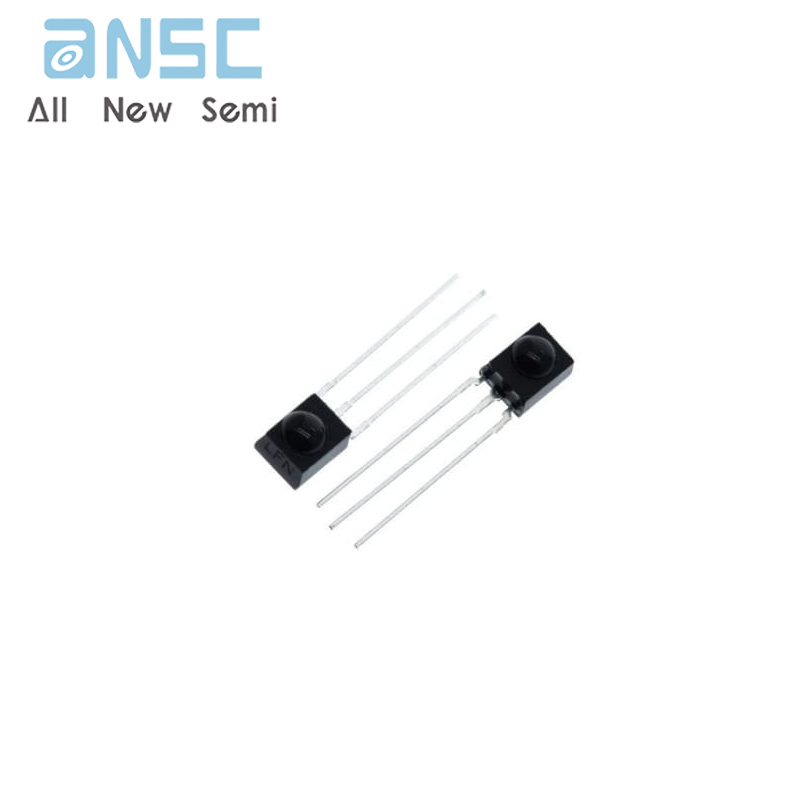

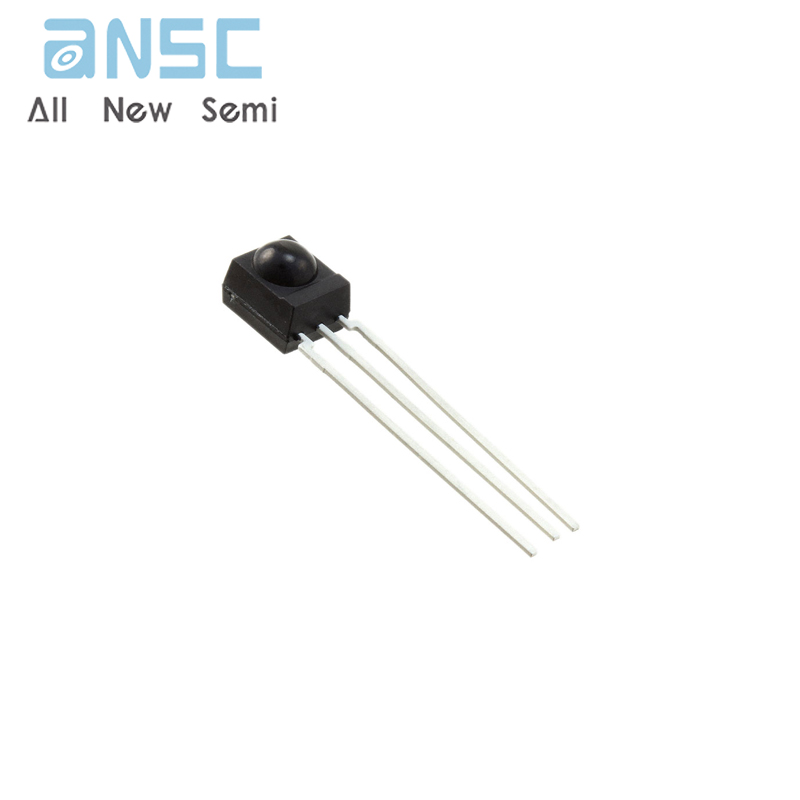

Product Photos
For more product information, please download the PDF
