Spot sales of TOP248Y Family Extended Power, Design Flexible,Integrated Off-line Switcher TO-220-6

Product Descriptions

TOPSwitch-GX uses the same proven topology as TOPSwitch, cost effectively integrating the high voltage power MOSFET, PWM control, fault protection and other control circuitry onto a single CMOS chip. Many new functions are integrated to reduce system cost and improve design flexibility, performance and energy efficiency.

Depending on package type, the TOPSwitch-GX family has either 1 or 3 additional pins over the standard DRAIN, SOURCE and CONTROL terminals. allowing the following functions: line sensing (OV/UV, line feedforward/DC max reduction), accurate externally set current limit, remote on/off, and synchronization to an external lower frequency and frequency selection (132 kHz/66 kHz).

All package types provide the following transparent features: Soft-start, 132 kHz switching frequency (automatically reduced at light load), frequency jittering for lower EMI, wider DCMAX, hysteretic thermal shutdown and larger creepage packages. In addition, all critical parameters (i.e. current limit, frequency, PWM gain) have tighter temperature and absolute tolerance, to simplify design and optimize system cost.

Product Features

• Extended power range to 250 W

• Features eliminate or reduce cost of external components

• Fully integrated soft-start for minimum stress/overshoot

• Externally programmable accurate current limit

• Wider duty cycle for more power, smaller input capacitor

• Separate line sense and current limit pins on Y/R packages

• Line under-voltage (UV) detection: no turn off glitches

• Line overvoltage (OV) shutdown extends line surge limit

• Line feed forward with maximum duty cycle (DCMAX) reduction rejects line ripple and limits DCMAX at high line

• Frequency jittering reduces EMI and EMI filtering costs

• Regulates to zero load without dummy loading

• 132 kHz frequency reduces transformer/power supply size

• Half frequency option in Y/R packages for video applications

• Hysteretic thermal shutdown for automatic fault recovery

• Large thermal hysteresis prevents PC board overheating

​

Product Applications

• Extremely low consumption in remote off mode (80 mW @ 110 VAC, 160 mW @ 230 VAC)

• Frequency lowered with load for high standby efficiency

• Allows shutdown/wake-up via LAN/input port

Product Specification

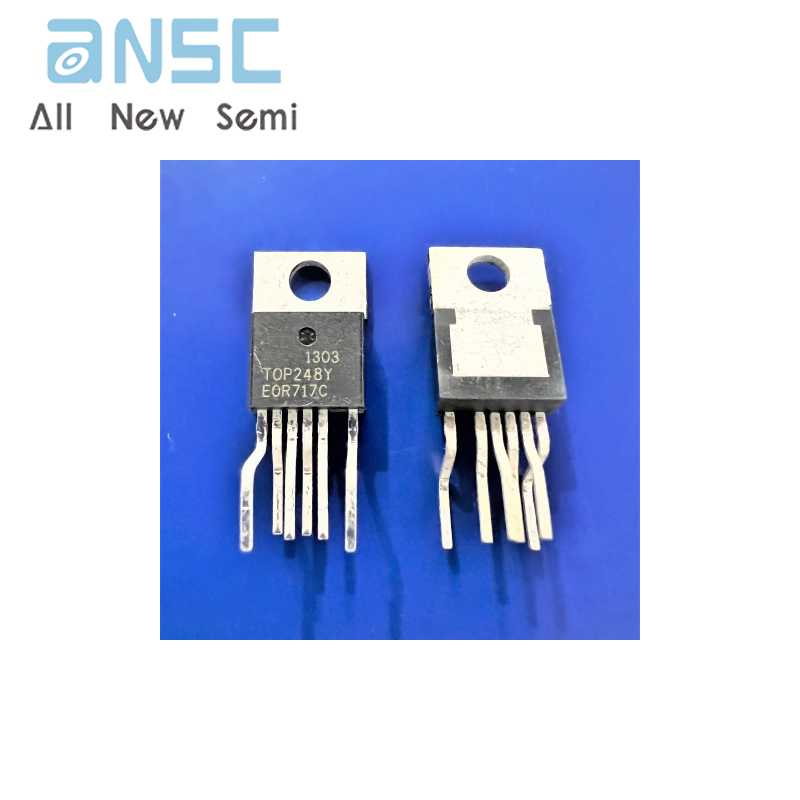

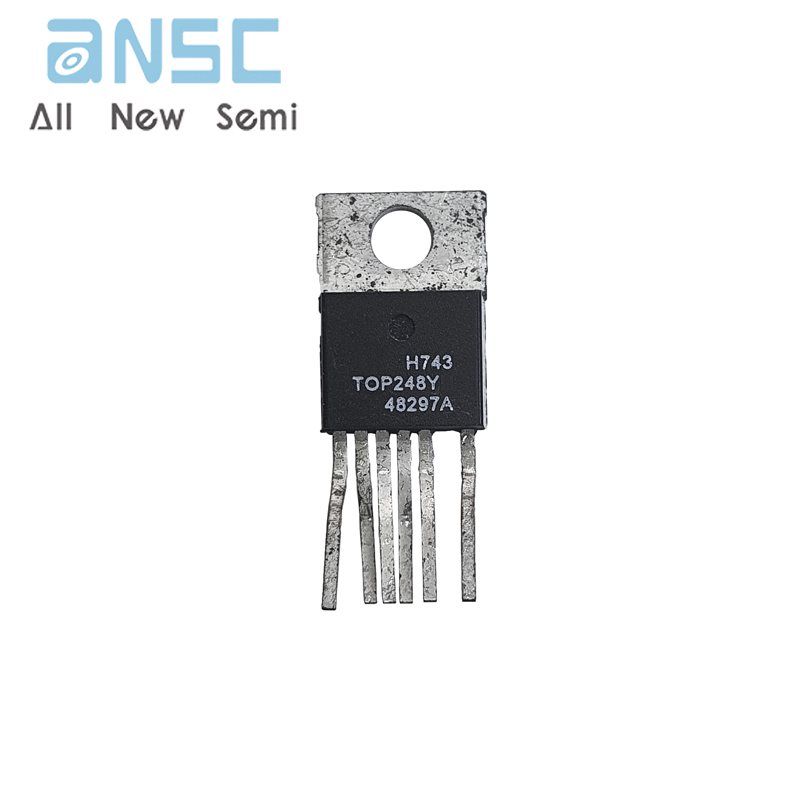

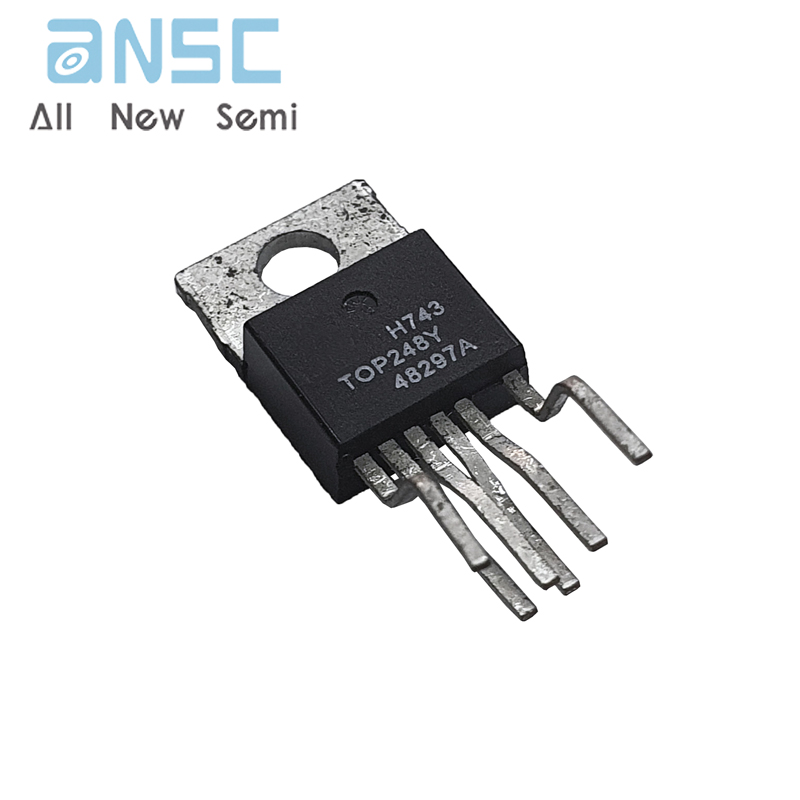

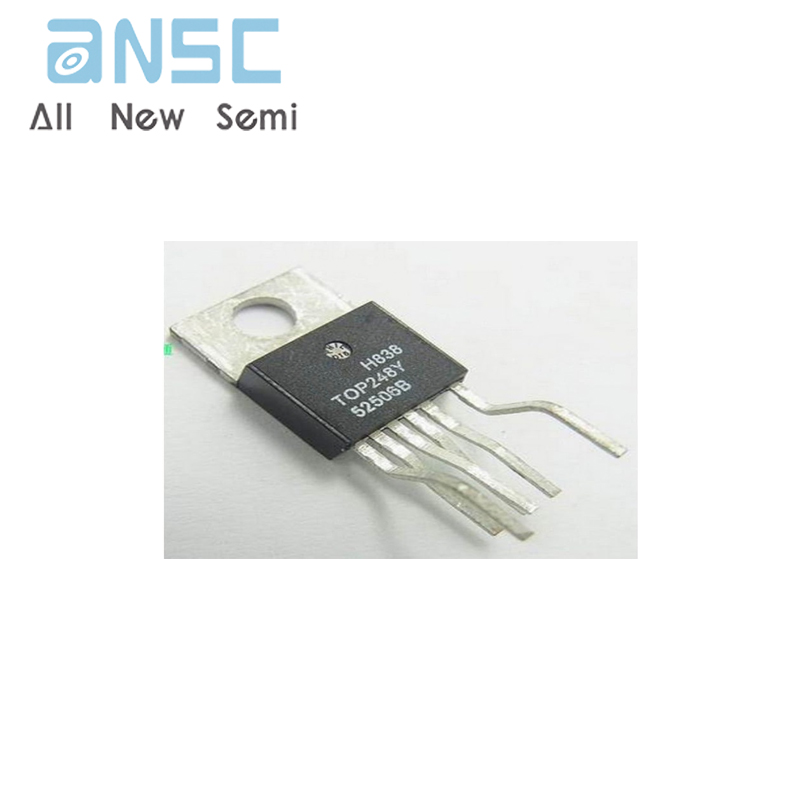

Product Photos

For more product information, please download the PDF
