Hot-selling and scarce AD9380KSTZ-100 Analog/HDMI Dual-Display Interface QFP100 spot stock

Product Descriptions

The AD9380 offers designers the flexibility of an analoginterface and high definition multimedia interface (HDMI)receiver integrated on a single chip. Also included is support forhigh bandwidth digital content protection (HDCP).

The AD9380 is a complete 8-bit, 150 MSPS, monolithic analoginterface optimized for capturing component video (YPbPr)and RGB graphics signals . Its 150 MSPS encode rate capabilityand full power analog bandwidth of 330 MHz supports allHDTV formats (up to 1080p and FPD resolutions up to SXGA(1280 × 1024 @ 75 Hz).

The analog interface includes a 150 MHz triple ADC withinternal 1.25 V reference, a phase-locked loop (PLL), andprogrammable gain, offset, and clamp control. The user providesonly 1.8 V and 3.3 V power supplies, analog input, and HSYNC .Three-state CMOS outputs can be powered from 1.8 V to 3.3 V.An on-chip PLL generates a pixel clock from HSYNC .

Product Features

Internal key storage for HDCP

Analog/HDMI dual interface

Supports high bandwidth digital content protection

RGB-to-YCbCr 2-way color conversion

Automated clamping level adjustment

1.8 V/3.3 V power supply

100-lead, Pb-free LQFP

RGB and YCbCr output formats

Analog interface

8-bit triple ADC

100 MSPS maximum conversion rate

Macrovision® detection

2:1 input mux

Full sync processing

Sync detect for hot plugging

Midscale clamping

Digital video interface

HDMI 1.1, DVI 1.0

150 MHz HDMI receiver

Supports HDCP 1.1

Digital audio interface

HDMI 1.1-compatible audio interface

S/PDIF (IEC90658-compatible) digital audio output

Multichannel I2S audio output (up to 8 channels)

Product Applications

Advanced TVs

HDTV

Projectors

LCD monitor

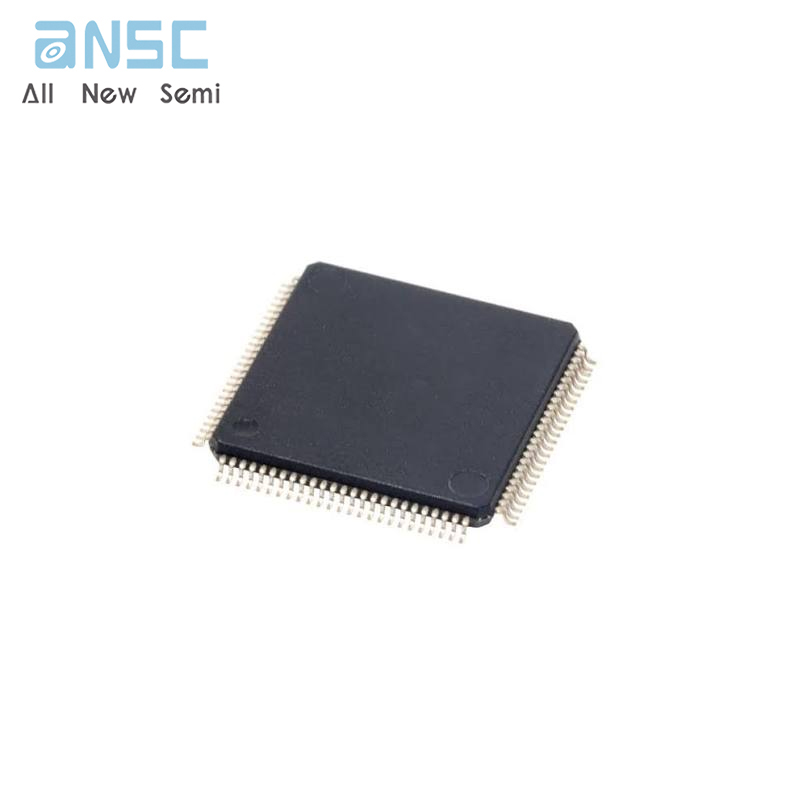

Product Photos

For more product information, please download the PDF
