Spot sales of W24010S-70LL 128K x 8 CMOS STATIC RAM IC SOP-32

Product Descriptions

The W24010 is a normal-speed, very low-power CMOS static RAM organized as 131072 x 8 bits thatoperates on a single 5-volt power supply. This device is manufactured using Winbond's highperformance CMOS technology.

Product Features

· Low power consumption:

- Active: 350 mW (max.)

- Standby: 250 W (max.)

· Access time: 55/70 nS (max.)

· Single 5V power supply

· Fully static operation

· All inputs and outputs directly TTL compatible

· Three-state outputs.

· Battery back-up operation capability

· Data retention voltage: 2V (min.)

· Packaged in 32-pin 600 mil DIP, 450 mil SOP,standard type one TSOP (8 mm x 20 mm) andsmall type one TSOP (8 mm x 13.4 mm)

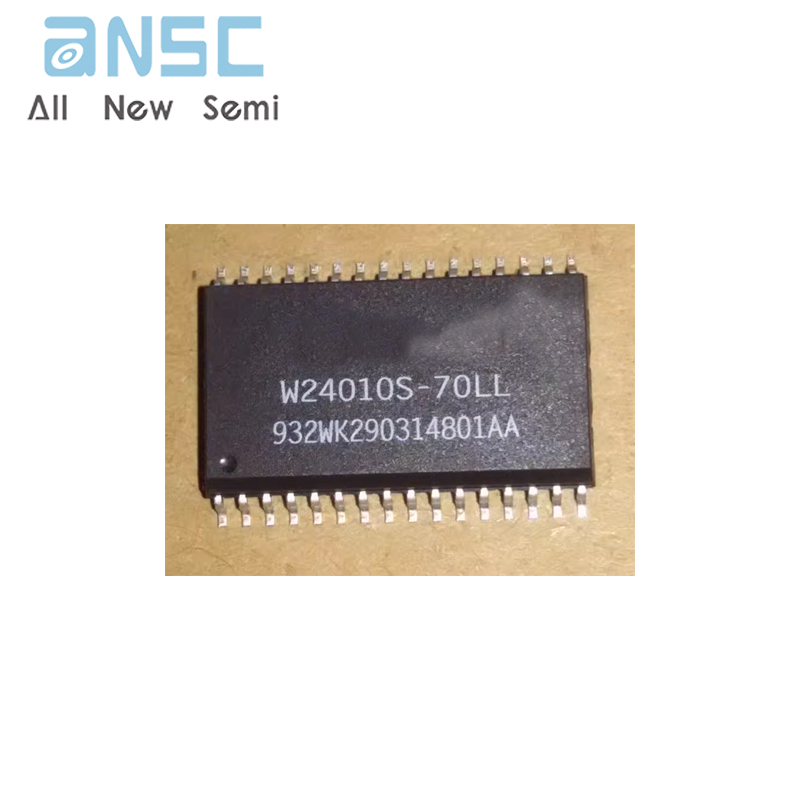

Product Photos

For more product information, please download the PDF
