Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce SN74HC139D DUAL 2-LINE TO 4-LINE DECODERS/DEMULTIPLEXERS SOP16 spot stock
Manufacturer Product Number
SN74HC139D
Description
SN74HC139D DUAL 2-LINE TO 4-LINE DECODERS/DEMULTIPLEXERS SOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Targeted Specifically for High-Speed Memory Decoders and Data-Transmission Systems
Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up To 10 LSTTL Loads
Low Power Consumption, 80-µA Max ICC
Typical tpd = 10 ns
±4-mA Output Drive at 5 V
Low Input Current of 1 µA Max
Incorporate Two Enable Inputs to Simplify Cascading and/or Data Reception
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74HC139D |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | - |
| Series | 74HC |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Decoder/Demultiplexer |
| Circuit | 1 x 2:4 |
| Independent Circuits | 2 |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74HC139 |

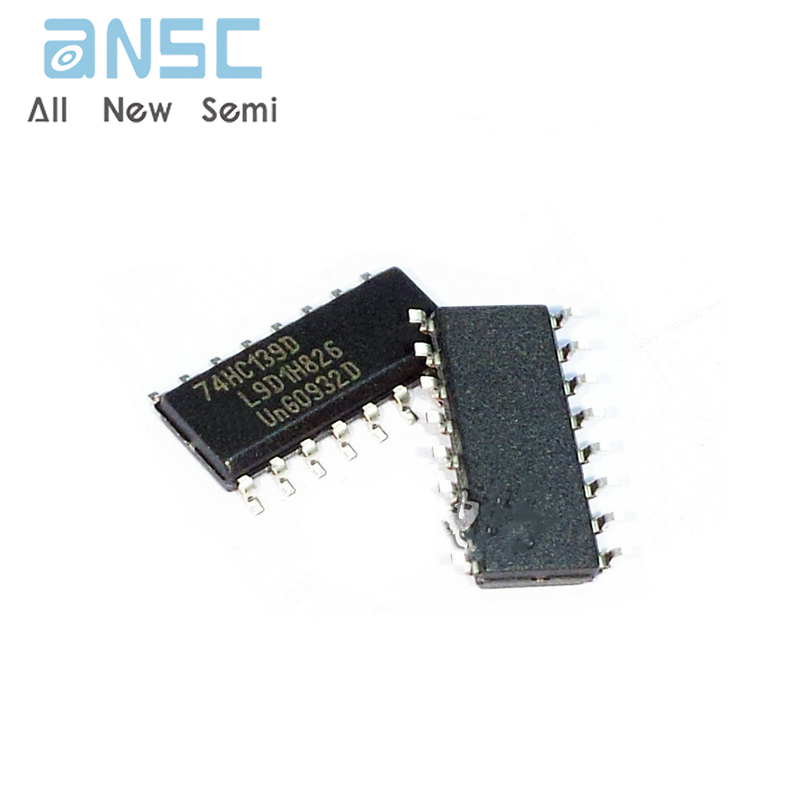

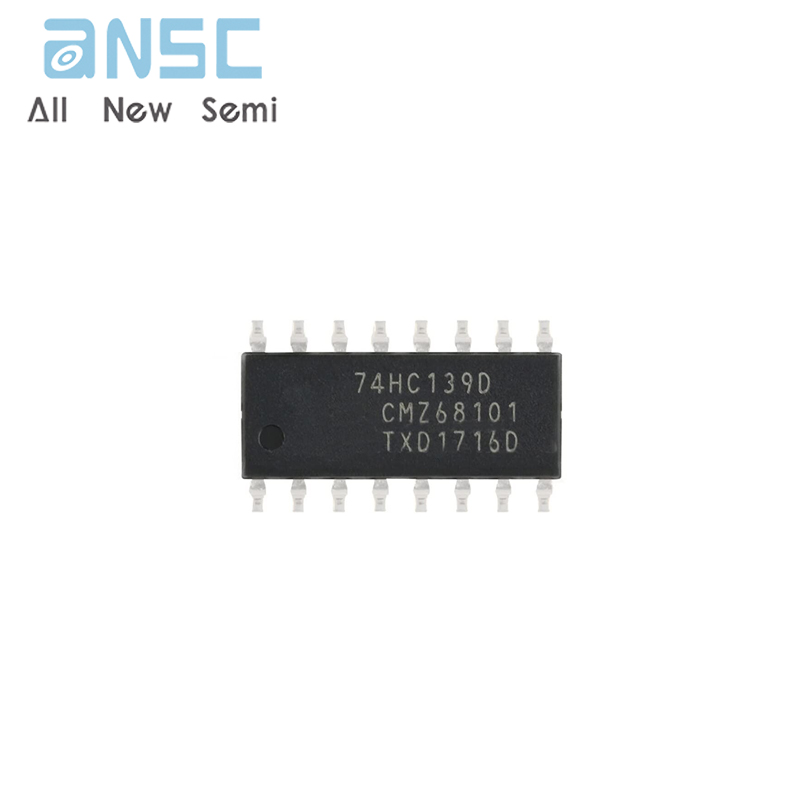

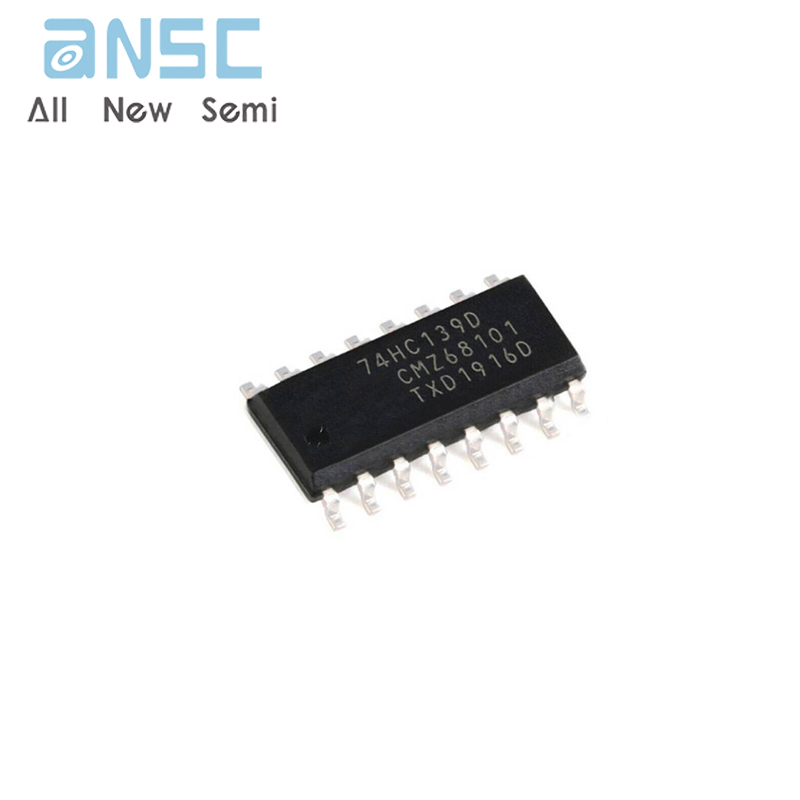

Product Photos
、
For more product information, please download the PDF
