Hot-selling and scarce 54F109 Dual JK Positive Edge-Triggered Flip-Flop spot stock

Product Descriptions

The’F109 consists of two high-speed,completely independent transition clocked JK flip-flops.The clocking operation is independent of rise and fall times of the clock waveform. The JK design allows operation as a D flip-flop (refer to’F74 data sheet)by connecting the J and K inputs

Asynchronous Inputs:

LOW input to S_D sets Q to HIGH level

LOW input to C_D sets Q to LOW level

Clear and Set are independent of clock

Simultaneous LOW on C_D and S_D makes both Q and Q HIGH

Product Features

Guaranteed 4000V minimum ESD protection.

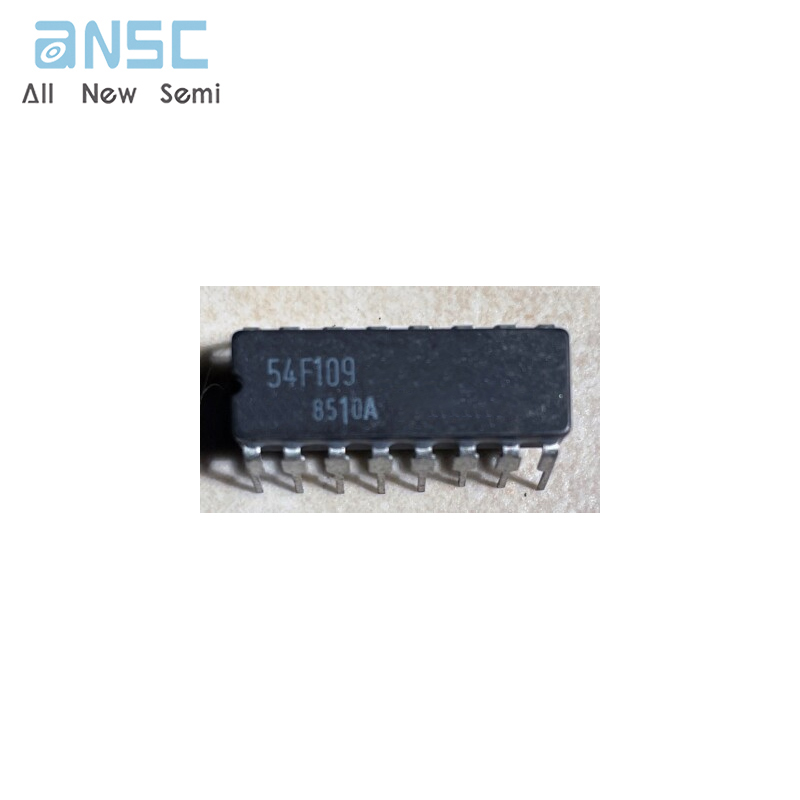

Product Photos

For more product information, please download the PDF
