Hot-selling and scarce ISL6141IBZ Negative Voltage Hot Plug Controller SOP8

Product Descriptions

The ISL6141 is an 8-pin, negative voltage hot plug controller that allows a board to be safely inserted and removed from a live backplane. Inrush current is limited to a programmable value by controlling the gate voltage of an external Nchannel pass transistor. The pass transistor is turned off if the input voltage is less than the Under-Voltage threshold, or greater than the Over-Voltage threshold. The IntelliTripTM electronic circuit breaker and programmable current limit features protect the system against short circuits. When the Over-Current threshold is exceeded, the output current is limited for 600s before the circuit breaker shuts down the FET. If the fault disappears before the 600s time-out, normal operation resumes. In addition, the IntelliTripTM electronic circuit breaker has a fast Hard Fault shutdown with a threshold set at 4 times the current limit value. When activated, the GATE is immediately turned off and then slowly turned back on for a single retry (soft-start). The active low PWRGD signal can be used to directly enable a power module (with a low enable input). The ISL6151 is the same device but has an active high PWRGD output.

Product Features

• Operates from -20V to -80V (-100V Absolute Max Rating)

• Programmable Inrush Current

• Programmable Over-Voltage Protection

• Programmable Under-Voltage Protection

- 135mV of hysteresis

- Equals ~4.6V of hysteresis at the power supply

• UVLO (Under-Voltage Lock-Out) ~ 16.5V

• Programmable Current Limit with 600s time-out

• IntelliTripTM electronic circuit breaker distinguishes between Over-Current and Hard Fault conditions

- Fast shutdown for Hard Faults with a single retry (fault current > 4X current limit value).

• Pin Compatible with ISL6140/50.

• Power Good Control Output

- Monitors both the DRAIN (voltage drop across the FET) and the GATE voltage; once both are OK, the Power Good output is latched in the active state.

- PWRGD active high: ISL6151 (H version)

- PWRGD active low: ISL6141 (L version)

• Pb-free available

Product Applications

• VoIP (Voice over Internet Protocol) Servers

• Telecom systems at -48V

• Negative Power Supply Control

• +24V Wireless Base Station Power

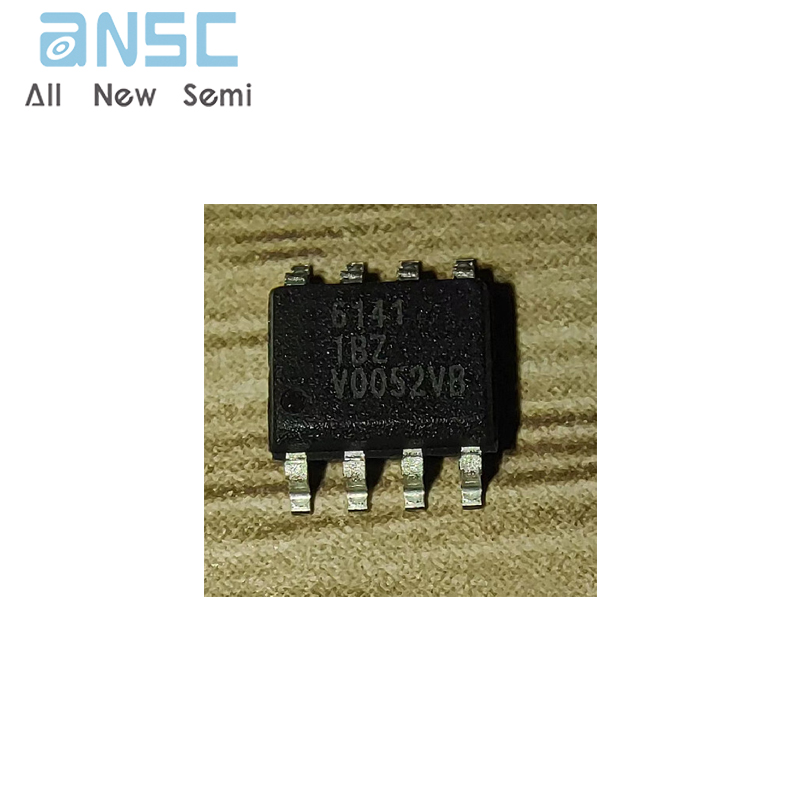

Product Photos

For more product information, please download the PDF
