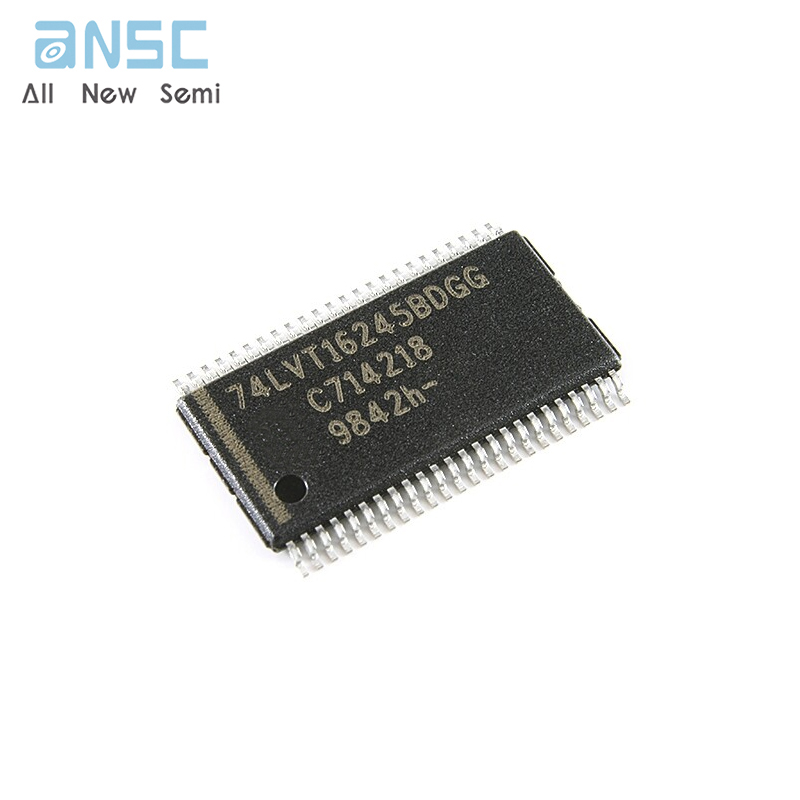

Hot-selling and scarce 74LVT16245BDGG 3.3 V 16-bit transceiver 3-state TSSOP spot stock

Product Descriptions

The 74LVT16245B; 74LVTH16245B is a high-performance BiCMOS product designed for V CC operation at 3.3 V.

This device is a 16-bit transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. The control function implementation minimizes external timing requirements. The device features an output enable input (nOE) for easy cascading and a direction input (nDIR) for direction control.

Product Features

16-bit bidirectional bus interface

3-state buffers

Output capability: +64 mA and −32 mA

TTL input and output switching levels

Input and output interface capability to systems at 5 V supply

Bus hold data inputs eliminate need for external pull-up resistors to hold unused inputs

Live insertion and extraction permitted

Power-up 3-state

No bus current loading when output is tied to 5 V bus

Latch-up protection:

JESD78B Class II exceeds 500 mA

ESD protection:

HBM JESD22-A114F exceeds 2000 V

MM JESD22-A115-A exceeds 200 V

Product Photos

For more product information, please download the PDF
