Hot-selling and scarce AP7365-25WG-7 600mA, Low Quiescent Current, Fast Transient Low Dropout Linear Regulator SOT23-5

Product Descriptions

The AP7365 is a 600mA, adjustable and fixed output voltage,  low dropout linear regulator. The device included pass  element, error amplifier, band-gap, current limit and thermal  shutdown circuitry. The device is turned on when EN pin is  set to logic high level.

The characteristics of low dropout voltage and low quiescent  current make it suitable for low power applications, for  example, battery powered devices. The typical quiescent  current is approximately 35μA. Built-in current-limit and  thermal-shutdown functions prevent IC from damage in fault  conditions.

This device is available with adjustable output from 0.8V to  5.0V, and fixed version with 0.8V, 1.0V, 1.2V, 1.5V, 1.8V,  2.0V, 2.5V, 2.8V, 3.0V, 3.3V and 3.9V outputs. Please  contact your local sales office for any other voltage options.

The AP7365 is available in SOT25, SOT89/R-3L, SOT223/R- 3L, and DFN2020-6 packages. ​

Product Features

• 600mA Low Dropout Regulator with EN

• Very low IQ: 35µA

• Wide input voltage range: 2V to 6V

• Wide adjustable output: 0.8V to 5.0V

• Fixed output options: 0.8V to 3.9V (0.1V step size possible)

• High PSRR: 65dB at 1kHz

• Fast start-up time: 200µs

• Stable with low ESR, 1µF ceramic output capacitor

• Excellent Load/Line Transient Response

• Low dropout: 300mV at 600mA

• Current limit and short circuit protection

• Thermal shutdown protection

• Ambient temperature range: -40ºC to 85ºC

• SOT25, SOT89/R-3L, SOT223/R-3L, DFN2020-6:

Available in “Green” Molding Compound

• Lead Free Finish/ RoHS Compliant

Product Applications

• Servers and notebook computers

• Low and medium power applications

• FPGA and DSP core or I/O power

• Consumer Electronics

Product Specification

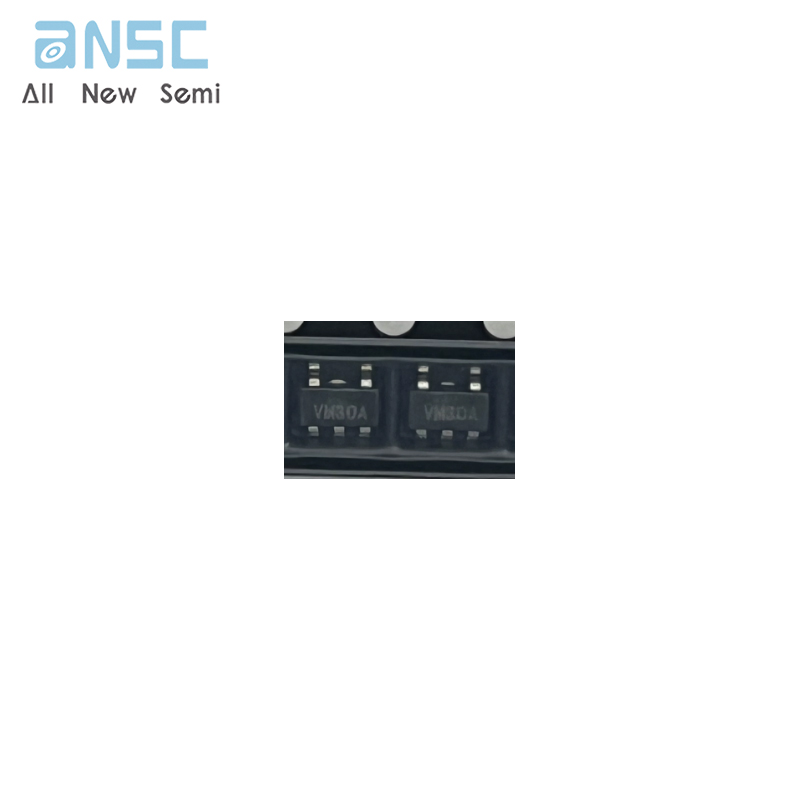

Product Photos

For more product information, please download the PDF
