Hot-selling and scarce MP2120DQ-LF-Z 2.5A, 5.5V Synchronous Step-Down Switching Regulator QFN

Product Descriptions

The MP2120 is an internally compensated 1.5MHz fixed frequency PWM synchronous step-down regulator. MP2120 operates from a 2.7V to 5.5V input and generates an output voltage as low as 0.8V.

The MP2120 integrates an 80mΩ high-side switch and a 60mΩ synchronous rectifier for high efficiency without an external Schottky diode. With peak current mode control and internal compensation, the MP2120 based solution delivers a very compact footprint with a minimum component count.

The MP2120 is available in a small 3mm x 3mm 10-lead QFN package.

Product Features

 2.5A Output Current

 Input Operation Range: 2.7V to 5.5V

 All Ceramic Capacitor Design

 Up to 95 PERCENT Efficiency

 1.5MHz Fixed Switching Frequency

 Adjustable Output from 0.8V to 0.9xVIN

 Internal Soft-Start

 Frequency Synchronization Input

 Power Good Output

 Cycle-by-Cycle Current Limiting

 Hiccup Short Circuit Protection

 Thermal Shutdown

 3mm x 3mm 10-lead QFN Package

Product Applications

 µP/ASIC/DSP/FPGA Core and I/O Supplies

 Printers and LCD TVs

 Network and Telecom Equipment

 Point of Load Regulators

Product Specification

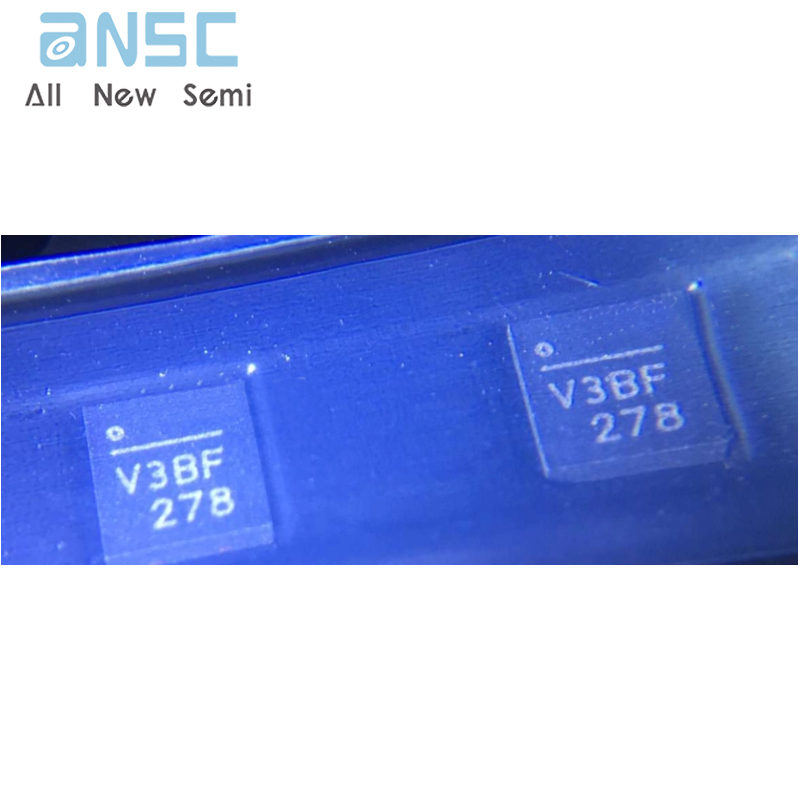

Product Photos

For more product information, please download the PDF
