Hot-selling and scarce IRF7524D1PBF MOSFET & Schottky Diode MSOP8 spot stock
Manufacturer Product Number
IRF7524D1PBF
Description

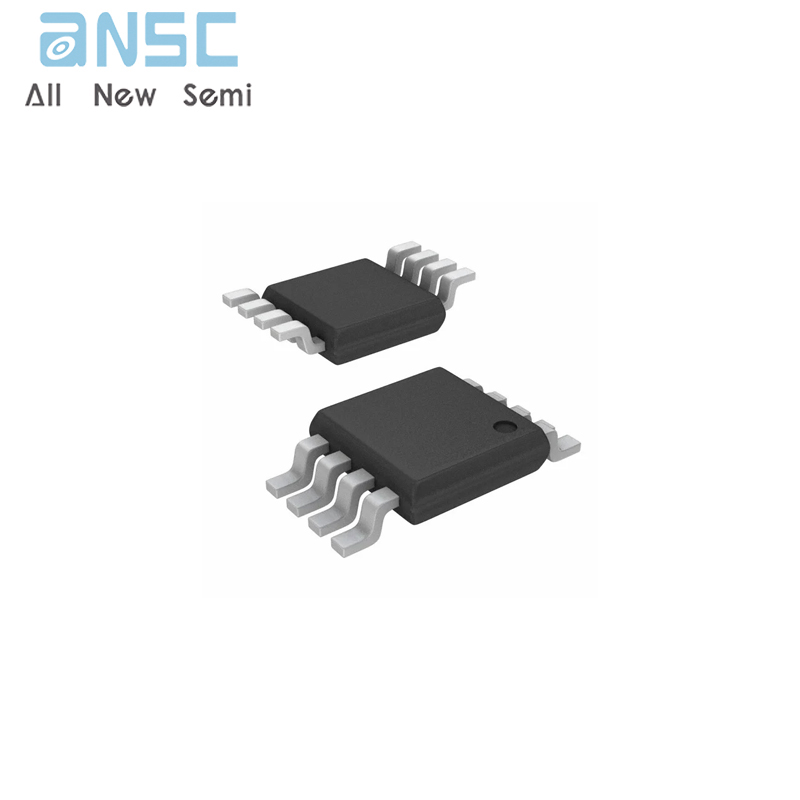

IRF7524D1PBF MOSFET & Schottky Diode MSOP8 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The innovative board space saving solution for switching regulator applications. Generation 5 HEXFETs utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. Combining this technology with International Rectifier's low forward drop Schottky rectifiers results in an extremely efficient device suitable for use in a wide variety of portable electronics applications like cell phone, PDA, etc.
The new Micro8 package, with half the footprint area of the standard SO-8, provides the smallest footprint available in an SOIC outline. This makes the Micro8 an ideal device for applications where printed circuit board space is at a premium. The low profile (<1.1mm) of the Micro8 will allow it to fit easily into extremely thin application environments such as portable electronics and PCMCIA cards.
Product Features
Co-packaged HEXFET® Power MOSFET and Schottky Diode
P-Channel HEXFET
Low VF Schottky Rectifier
Generation 5 Technology
Micro8 Footprint
Lead-Free
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-IRF7524D1PBF |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | - |
| cms-filter-header-series | FETKY™ |
| Packaging | Tube |
| Part Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 4.5V |
| Rds On (Max) @ Id, Vgs | 270mOhm @ 1.2A, 4.5V |
| Vgs(th) (Max) @ Id | 700mV @ 250µA (Min) |
| Gate Charge (Qg) (Max) @ Vgs | 8.2 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 240 pF @ 15 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 1.25W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Micro8™ |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
