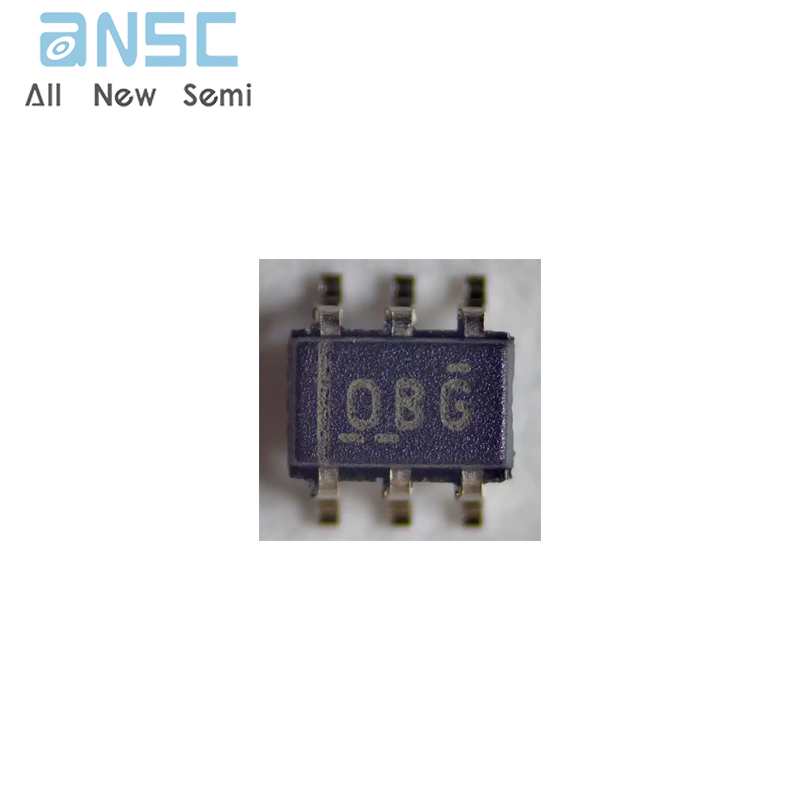

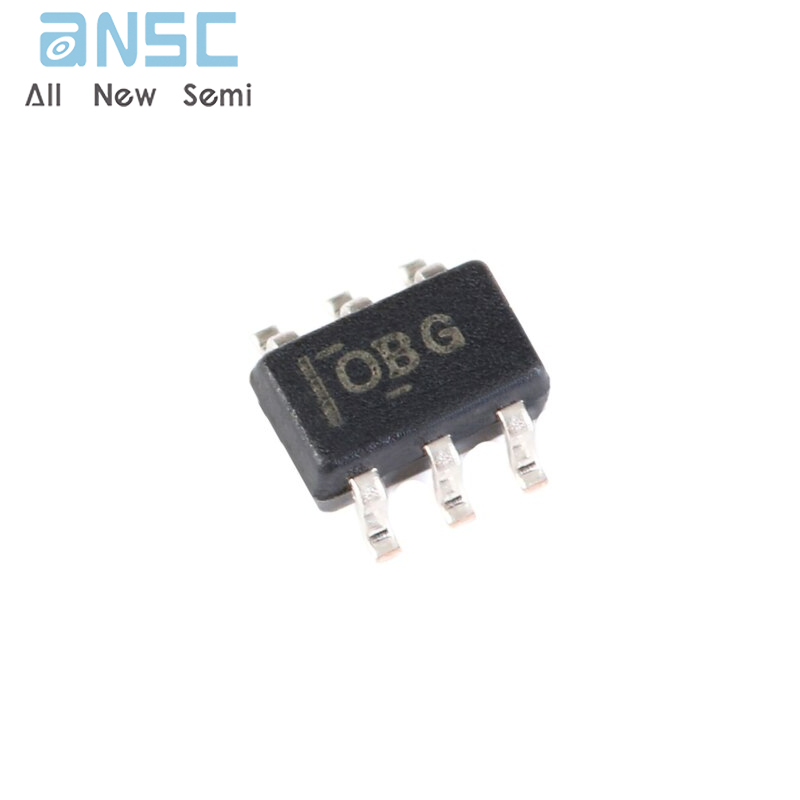

Hot-selling and scarce INA199A1DCKR Zero-Drift, Low- or High-Side, Voltage-Output, Current-Shunt Monitor SC70-6

Product Descriptions

The INA199 series of voltage-output, current-shunt monitors (also called current-sense amplifiers) are commonly used for overcurrent protection, precisioncurrent measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunt resistors at commonmode voltages from –0.3 V to 26 V, independent of the supply voltage. Three fixed gains are available: 50 V/V, 100 V/V, and 200 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.

These devices operate from a single 2.7-V to 26- V power supply, drawing a maximum of 100 µA of supply current. All versions are specified from – 40°C to 125°C, and offered in both SC70-6 and thin UQFN-10 packages.

Product Features

• Wide Common-Mode Range: –0.3 V to 26 V

• Offset Voltage: ±150 μV (Maximum) (Enables Shunt Drops of 10-mV Full-Scale)

• Accuracy:

– Gain Error (Maximum Over Temperature):

• ±1 percent (C Version)

• ±1.5 percent (A and B Versions)

– 0.5-μV/°C Offset Drift (Maximum)

– 10-ppm/°C Gain Drift (Maximum)

• Choice of Gains:

– INA199x1: 50 V/V

– INA199x2: 100 V/V

– INA199x3: 200 V/V

• Quiescent Current: 100 μA (Maximum)

• Packages: 6-Pin SC70, 10-Pin UQFN

Product Applications

• Notebook Computers

• Cell Phones

• Qi-Compliant Wireless Charging Transmitters

• Telecom Equipment

• Power Management

• Battery Chargers

Product Specification

Product Photos

For more product information, please download the PDF
