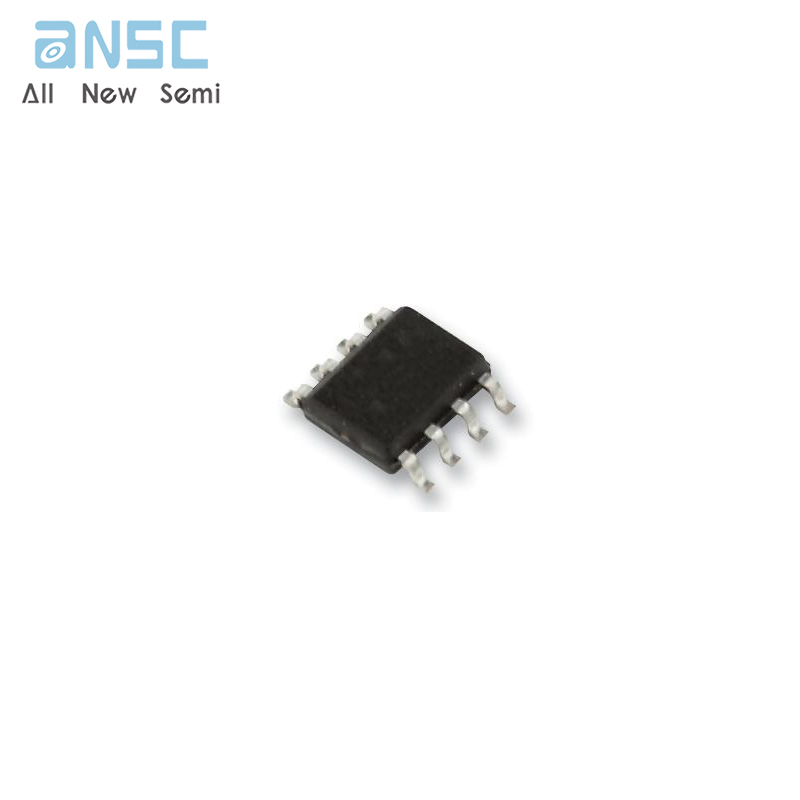

Hot-selling and scarce AD22100KR Voltage Output Temperature Sensor with Signal Conditioning SOP8 spot stock

Product Descriptions

The AD22100 is a monolithic temperature sensor with on-chip signal conditioning. It can be operated over the temperature range –50°C to +150°C, making it ideal for use in numerous HVAC, instrumentation and automotive applications.

The signal conditioning eliminates the need for any trimming, buffering or linearization circuitry, greatly simplifying the system design and reducing the overall system cost.

The output voltage is proportional to the temperature times the supply voltage (ratiometric). The output swings from 0.25 V at –50°C to +4.75 V at +150°C using a single +5.0 V supply.

Due to its ratiometric nature, the AD22100 offers a cost effective solution when interfacing to an analog-to-digital converter. This is accomplished by using the ADC’s +5 V power supply as a reference to both the ADC and the AD22100 (See Figure 1), eliminating the need for and cost of a precision reference.

Product Features

200°C Temperature Span

Accuracy Better than ±2% of Full Scale

Linearity Better than ±1% of Full Scale

Temperature Coefficient of 22.5 mV/°C

Output Proportional to Temperature × V+

Single Supply Operation

Reverse Voltage Protection

Minimal Self Heating

High Level, Low Impedance Output

Product Applications

HVAC Systems

System Temperature Compensation

Board Level Temperature Sensing

Electronic Thermostats

Product Specification

Product Photos

For more product information, please download the PDF
