Spot sales of MSP430F437IPZ MIXED SIGNAL MICROCONTROLLER QFP
Manufacturer Product Number
MSP430F437IPZ
Description
MSP430F437IPZ MIXED SIGNAL MICROCONTROLLER QFP
Package Condition
Tray
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
-
Low Supply-Voltage Range, 1.8 V to 3.6 V
-
Ultralow-Power Consumption:
− Active Mode: 280 µA at 1 MHz, 2.2 V
− Standby Mode: 1.1 µA
− Off Mode (RAM Retention): 0.1 µA
-
Five Power Saving Modes
-
Wake-Up From Standby Mode in Less Than 6 µs
-
16-Bit RISC Architecture,
-
125-ns Instruction Cycle Time
-
12-Bit A/D Converter With Internal Reference, Sample-and-Hold and Autoscan Feature
-
16-Bit Timer_B With Three† or Seven‡ Capture/Compare-With-Shadow Registers
-
16-Bit Timer_A With Three Capture/Compare Registers
-
On-Chip Comparator
-
Serial Communication Interface (USART), Select Asynchronous UART or Synchronous SPI by Software:
− Two USARTs (USART0, USART1)†
− One USART (USART0)‡
-
Brownout Detector
-
Supply Voltage Supervisor/Monitor With Programmable Level Detection
-
Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MSP430F437IPZ |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | MSP430x4xx |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 8MHz |
| Connectivity | SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, LCD, POR, PWM, WDT |
| Number of I/O | 48 |
| Program Memory Size | 32KB (32K x 8 + 256B) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| Base Product Number | MSP430F437 |

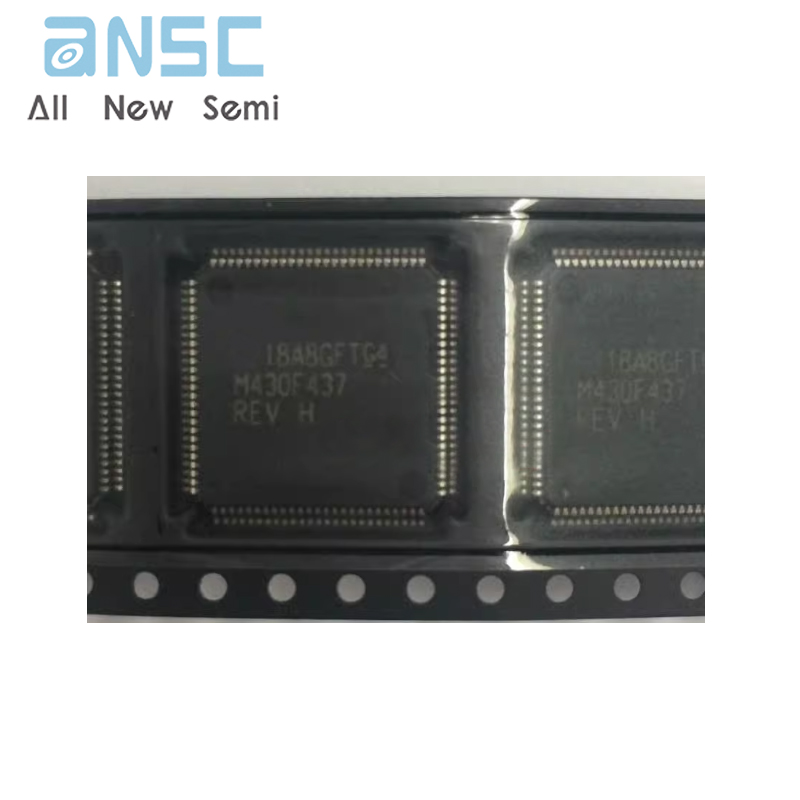

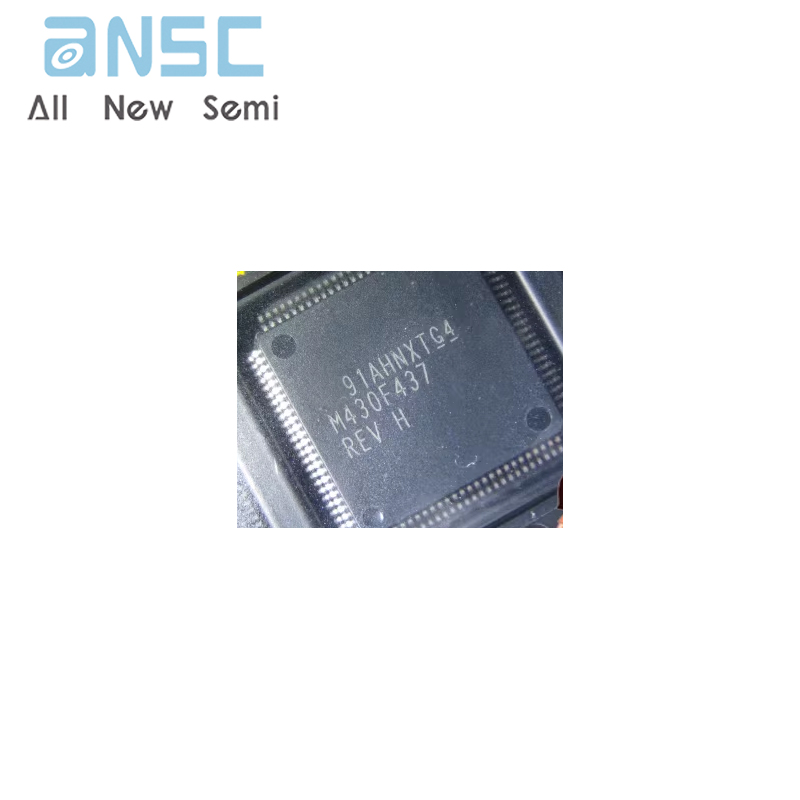

Product Photos
For more product information, please download the PDF
