ADG904BCPZ Wideband 2.5 GHz, 37 dB Isolation at 1 GHz, CMOS 1.65V to 2.75V, 4:1 Mux/SP4T QFN spot stock

Product Descriptions

The ADG904 and ADG904-R are wideband analog 4:1  multiplexers that use a CMOS process to provide high isolation  and low insertion loss to 1 GHz. The ADG904 is an  absorptive/matched mux with 50 Ω terminated shunt legs; the  ADG904-R is a reflective mux. These devices are designed such  that the isolation is high over the dc to 1 GHz frequency range.

The ADG904 and ADG904-R switch one of four inputs to a  common output, RFC, as determined by the 3-bit binary  address lines A0, A1, and EN. A Logic 1 on the EN pin disables  the device.

The parts have on-board CMOS control logic, which eliminates  the need for external control circuitry. The control inputs  are both CMOS and LVTTL compatible. The low power  consumption of these devices makes them ideally suited  for wireless applications and general-purpose high  frequency switching.

Product Features

Wideband switch: –3 dB @ 2.5 GHz

ADG904: absorptive 4:1 mux/SP4T

ADG904-R: reflective 4:1 mux/SP4T

High off isolation (37 dB @ 1 GHz)

Low insertion loss (1.1 dB dc to 1 GHz)

Single 1.65 V to 2.75 V power supply

CMOS/LVTTL control logic

20-lead TSSOP and 4 mm × 4 mm LFCSP packages

Low power consumption (1 μA maximum)

Qualified for automotive applications

Product Applications

Wireless communications

General-purpose RF switching

Dual-band applications

High speed filter selection

Digital transceiver front end switch

IF switching

Tuner modules

Antenna diversity switching

Product Specification

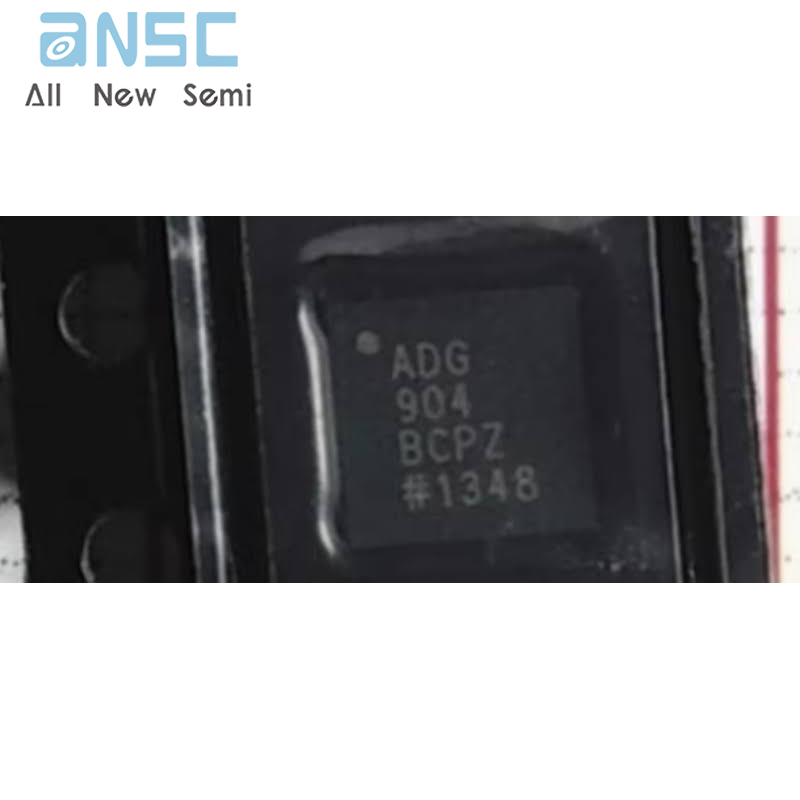

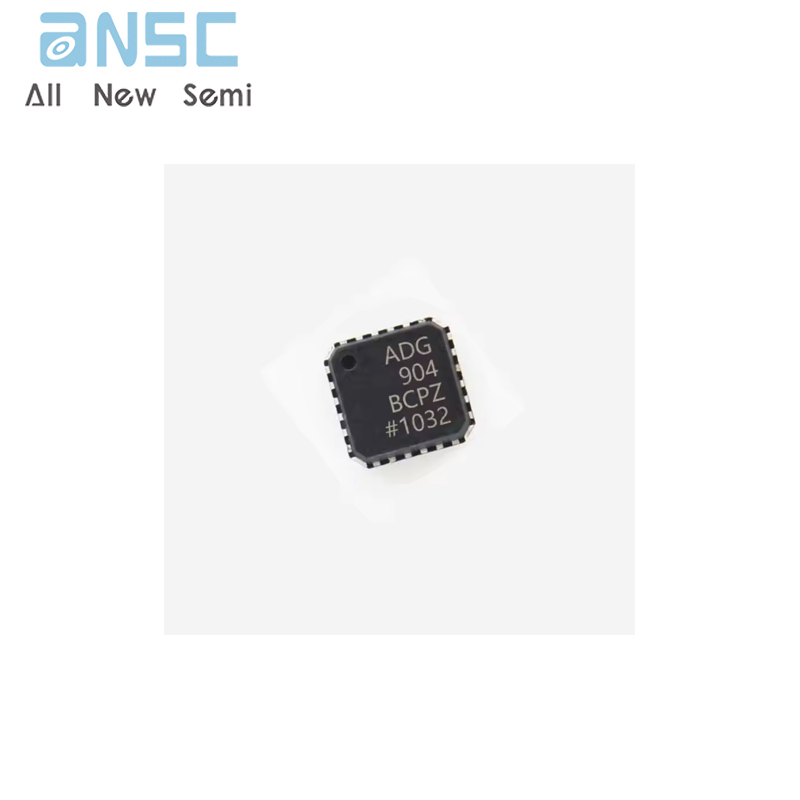

Product Photos

For more product information, please download the PDF
