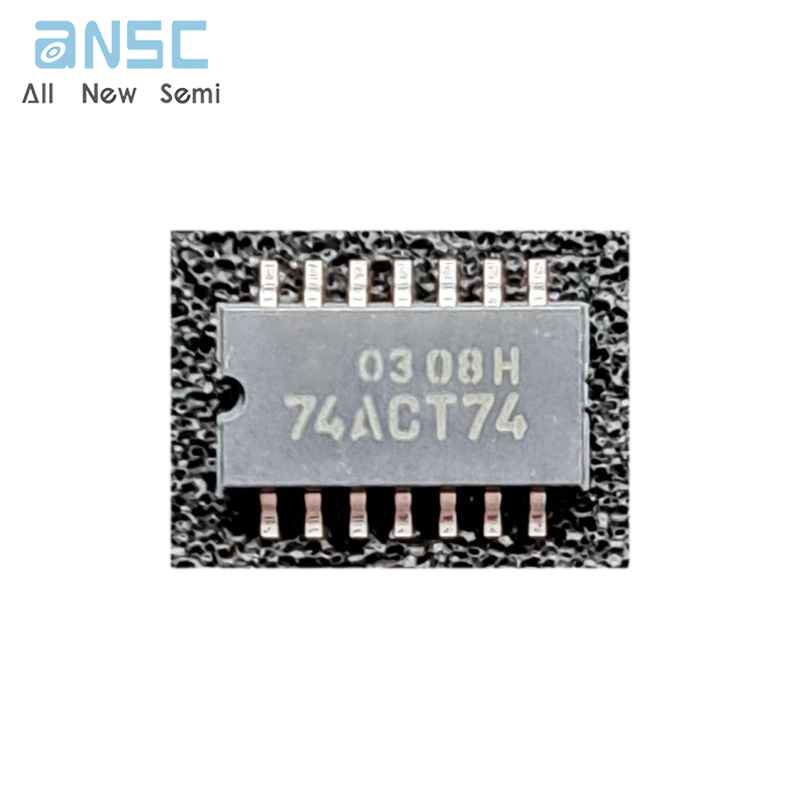

Hot-selling and scarce TC74ACT74F Dual D-Type Flip Flop with Preset and Clear SOP14 spot stock

Product Descriptions

The TC74ACT74 is an advanced high speed CMOS D-FLIP  FLOP fabricated with silicon gate and double-layer metal wiring  C2MOS technology.

It achieves the high speed operation similar to equivalent  Bipolar Schottky TTL while maintaining the CMOS low power  dissipation.

This device may be used as a level converter for interfacing  TTL or NMOS to High Speed CMOS. The inputs are compatible  with TTL, NMOS and CMOS output voltage levels.

The signal level applied to the D INPUT is transferred to Q  OUTPUT during the positive going transition of the CK pulse.

CLR and PR are independent of the CK and are  accomplished by setting the appropriate input to an “L” level.

All inputs are equipped with protection circuits against static  discharge or transient excess voltage.

Product Features

• High speed: fmax = 180 MHz (typ.) at VCC = 5 V

• Low power dissipation: ICC = 4 μA (max) at Ta = 25°C

• Compatible with TTL outputs: VIL = 0.8 V (max) VIH = 2.0 V (min)

• Symmetrical output impedance: |IOH| = IOL = 24 mA (min) Capability of driving 50 Ω transmission lines.

• Balanced propagation delays: tpLH ∼− tpHL

• Pin and function compatible with 74F74

Product Photos

For more product information, please download the PDF
