Hot-selling and scarce SN74ALVCH162244GR 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS TSSOP48 spot stock

Product Descriptions

This 16-bit buffer/driver is designed for 1.65-V to 3.6-V VCC operation.

The SN74ALVCH162244 is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. It provides true outputs and symmetrical active-low output-enable (OE) inputs.

The outputs, which are designed to sink up to 12 mA, include equivalent 26-Ω resistors to reduce overshoot and undershoot.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.

The SN74ALVCH162244 is characterized for operation from -40°C to 85°C.

Product Features

• Member of the Texas Instruments Widebus™ Family

• EPIC™ (Enhanced-Performance Implanted CMOS) Submicron Process

• Output Ports Have Equivalent 26-Ω Series Resistors, So No External Resistors Are Required

• ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors

• Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages

Product Specification

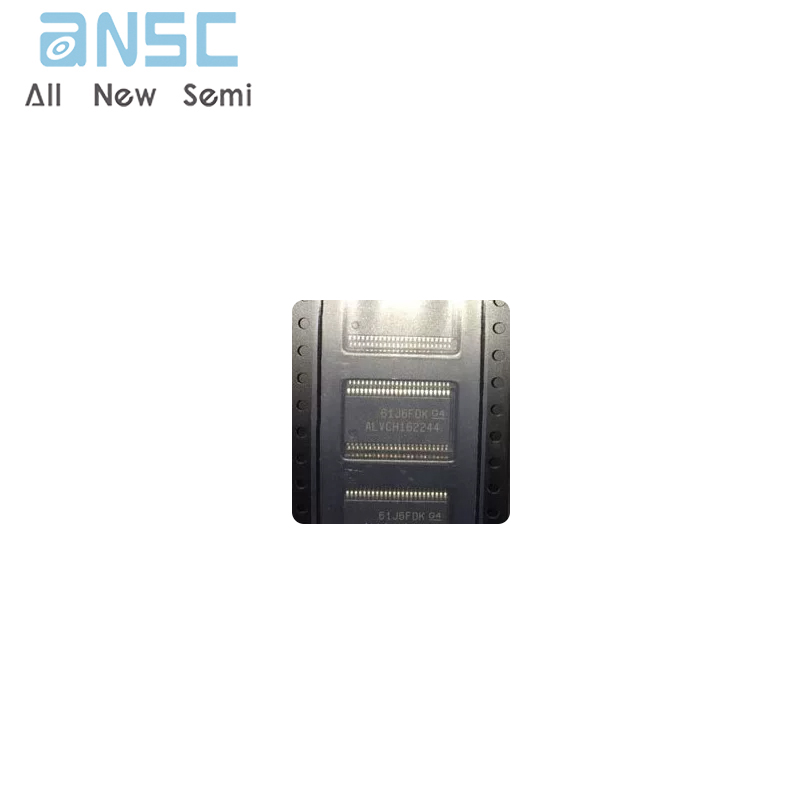

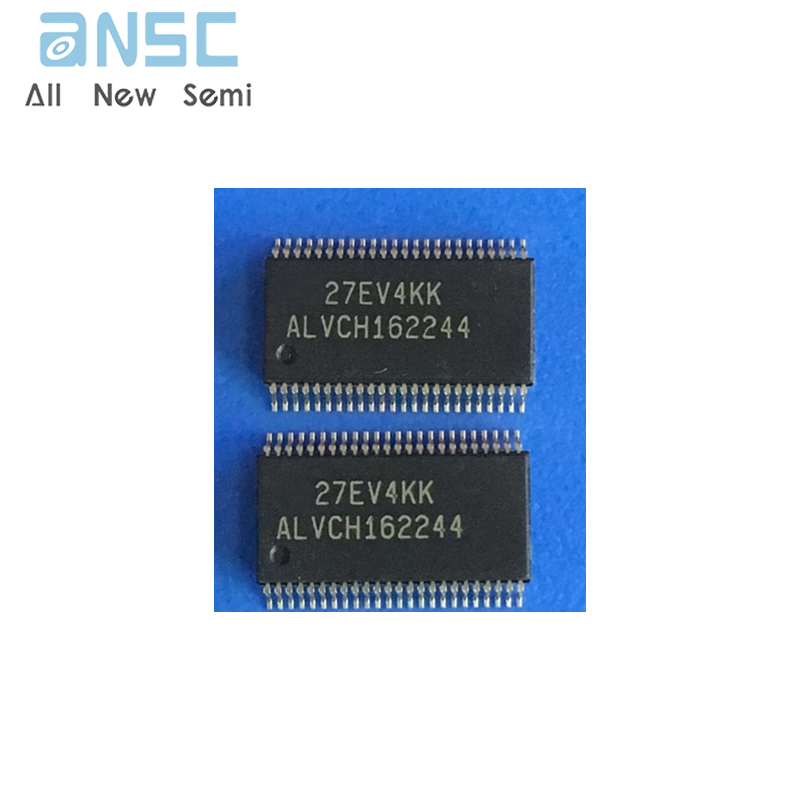

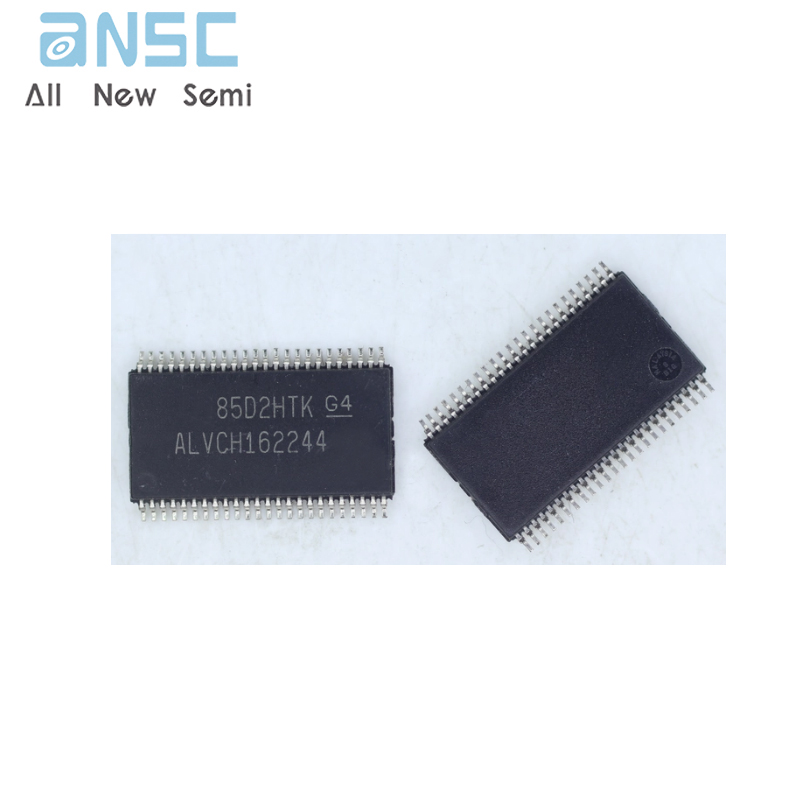

Product Photos

For more product information, please download the PDF
