Hot-selling and scarce TLV70233DBVT 300-mA Low-IQ Low-Dropout Regulator SOT23-5 spot stock

Product Descriptions

The TLV702xx series of low-dropout (LDO) linear regulators are low quiescent current devices with excellent line and load transient performance. These LDOs are designed for power-sensitive applications. A precision bandgap and error amplifier provides overall 2 percent accuracy. Low output noise, very high power-supply rejection ratio (PSRR), and low-dropout voltage make this series of devices ideal for a wide selection of battery-operated handheld equipment. ALL device versions have thermal shutdown and curren limit for safety.

Furthermore, these devices are stable with an effective output capacitance of only 0.1 μF. This feature enables the use of cost-effective capacitors that have higher bias voltages and temperature derating. The devices regulate to specified accuracy with no output load.

The TLV702xxP series also provides an active pulldown circuit to quickly discharge the outputs.

The TLV702xx series of LDO linear regulators are available in SOT23-5 and 1,5mm × 1,5mm SON-6 packages.

Product Features

• Very Low Dropout:

– 37 mV at IOUT = 50 mA, VOUT = 2.8 V

– 75 mV at IOUT = 100 mA, VOUT = 2.8 V

– 220mV at IOUT = 300 mA, VOUT = 2.8 V

• 2 percent Accuracy

• Low IQ: 35 μA

• Fixed-Output Voltage Combinations Possible from 1.2 V to 4.8 V

• High PSRR: 68 dB at 1 kHz

• Stable with Effective Capacitance of 0.1 μF

• Thermal Shutdown and Overcurrent Protection

• Packages: SOT23-5 and 1,5mm × 1,5mm SON-6

Product Applications

• Wireless Handsets

• Smart Phones, PDAs

• MP3 Players

• ZigBee® Networks

• Bluetooth® Devices

• Li-Ion Operated Handheld Products

• WLAN and Other PC Add-on Cards

Product Specification

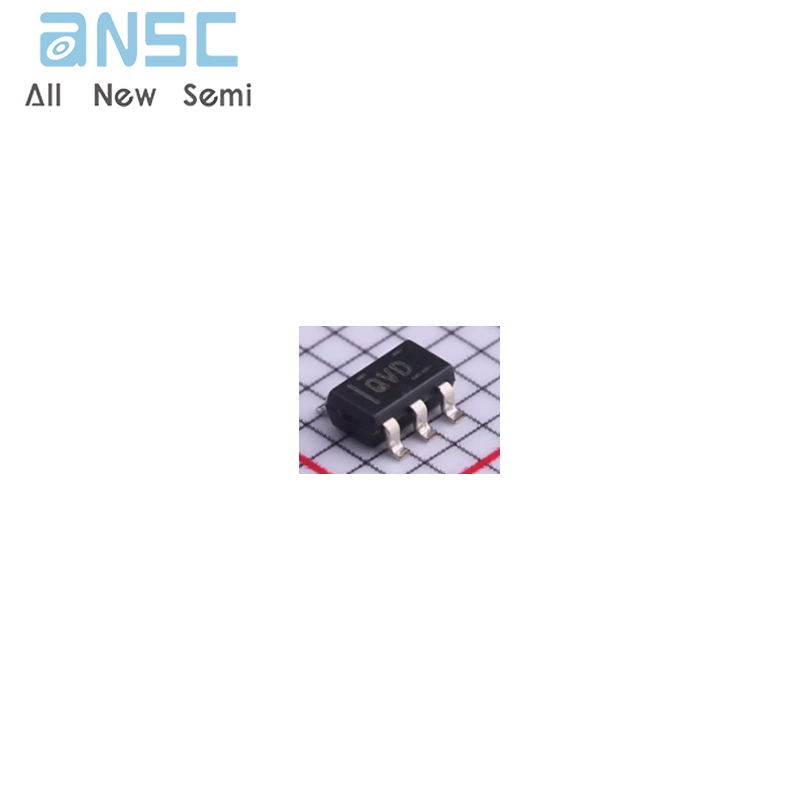

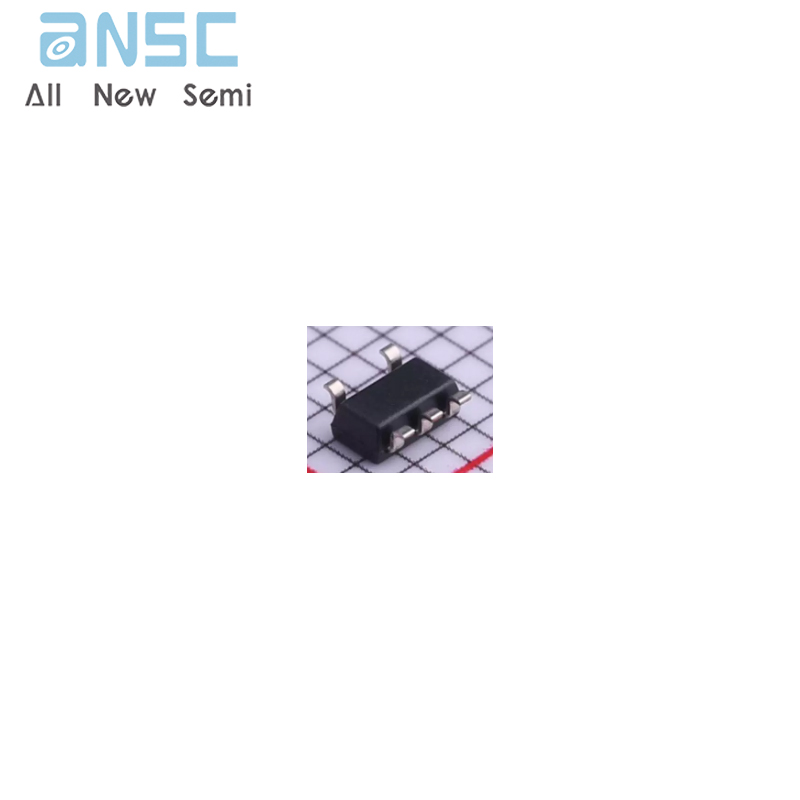

Product Photos

For more product information, please download the PDF
