Hot-selling and scarce UT62256CSC-70LL 32K X 8 BIT LOW POWER CMOS SRAM SOP28 spot stock
Manufacturer Product Number
UT62256CSC-70LL
Description
UT62256CSC-70LL 32K X 8 BIT LOW POWER CMOS SRAM SOP28 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The UT62256C is a 262,144-bit low power CMOS static random access memory organized as 32,768 words by 8 bits.It is fabricated using high performance,high reliability CMOS technology.
The UT62256C is designed for high-speed and low power application. It is particularly well suited for battery back-up nonvolatile memory application.
The UT62256C operates from a single 5V power supply and all inputs and outputs are fully TTL compatible.
Product Features
Access time :35/70ns (max.)
Low power consumption:
Operating :40/30 mA (typical.)
Standby : 3mA (typical)normal
2uA (typical)L-version
1uA (typical)LL-version
Single 5V power supply
All inputs and outputs are TTL compatible
Fully static operation
Three state outputs
Data retention voltage :2V (min.)
Package :28-pin 600 mil PDIP
28-pin 330 mil SOP
28-pin 8mmx13 .4mm STSOP

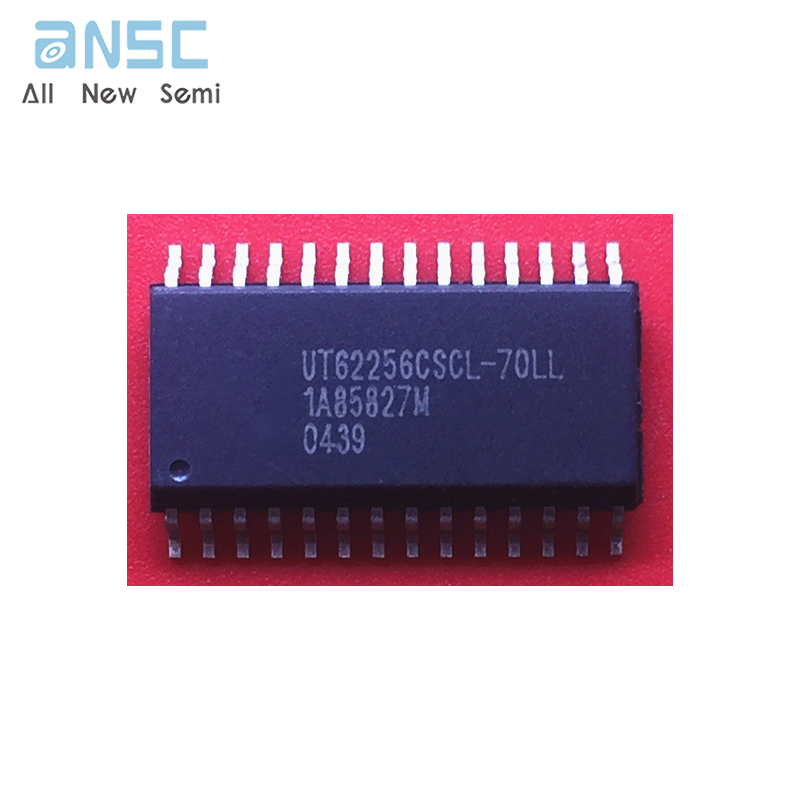

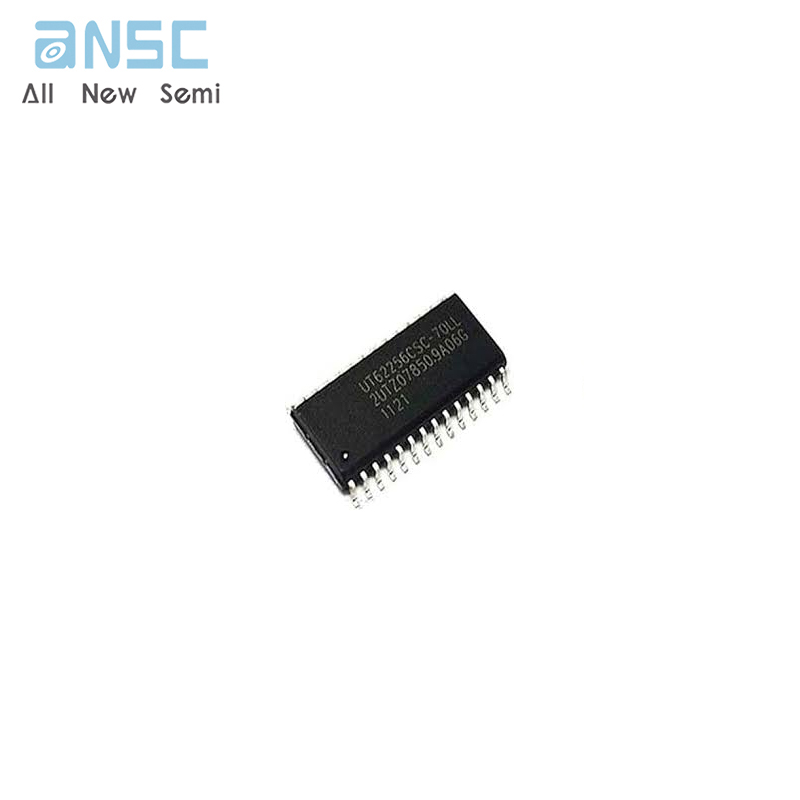

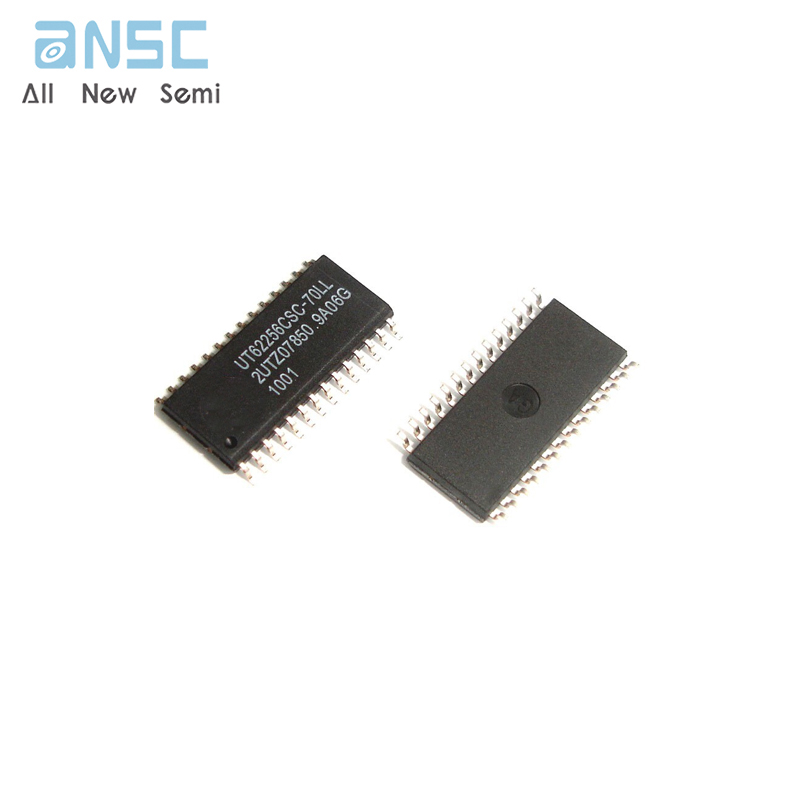

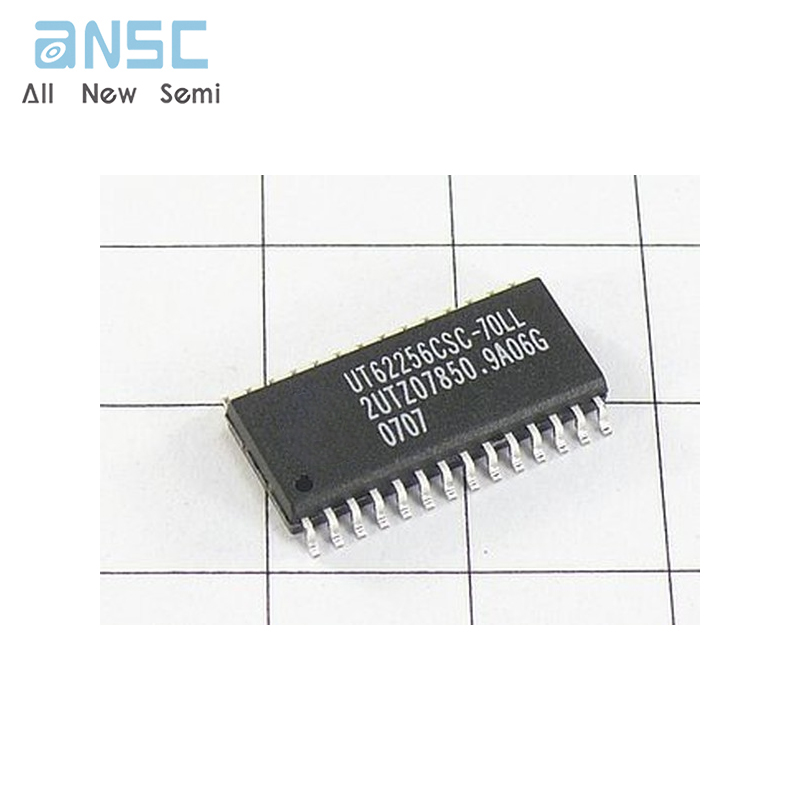

Product Photos
For more product information, please download the PDF
