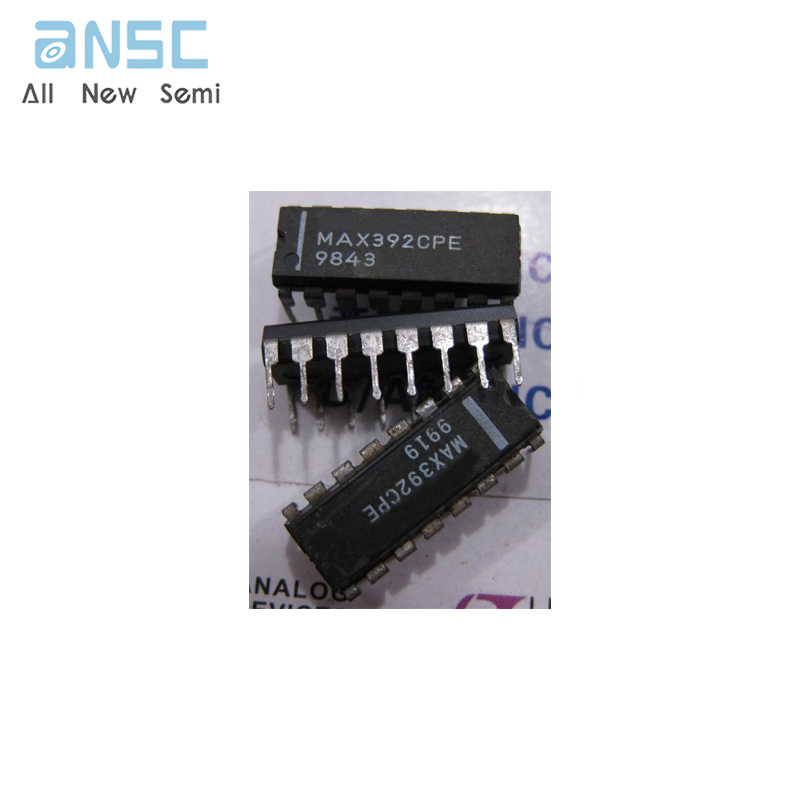

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce MAX392CPE+ Precision, Quad, SPST Analog Switches IC DIP spot stock
Manufacturer Product Number
MAX392CPE+
Description
MAX392CPE+ Precision, Quad, SPST Analog Switches IC DIP spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MAX391/MAX392/MAX393 are precision, quad, single-pole/single-throw (SPST) analog switches designed to operate at +3V, +5V, or ±5V. The MAX391 has four normally closed (NC) switches, and the MAX392 has four normally open (NO) switches. The MAX393 has two NO and two NC switches. All three devices offer low leakage (100pA max) and fast switching speeds (tON ≤ 130ns, tOFF ≤ 75ns). Power consumption is just 1µW—ideal for battery-operated equipment. All devices operate from a single +3V to +15V supply or from dual ±3 .0V to ±8V supplies.
With ±5V supplies, the MAX391/MAX392/MAX393 offer guaranteed 2Ω max channel-to-channel matching, 30Ω max on-resistance (RON), and 4Ω max RON flatness over the specified range.
These switches are also fully specified for single +5V operation, with 2Ω max RON match, 60Ω max RON, and6Ω max flatness.
These low-voltage switches also offer 5pC max charge injection, and ESD protection is greater than 2000V, per method 3015.7.
Product Features
♦ Low On-Resistance, 20Ω Typical
♦ Guaranteed On-Resistance Match Between Channels, <2Ω
♦ Guaranteed On-Resistance Flatness Over Signal Range, 4Ω Max
♦ Guaranteed Charge Injection, <5pC
♦ Improved Leakage Over Temperature,<2 .5nA at +85°C
♦ Electrostatic Discharge >2000V per Method 3015.7
♦ Single-Supply Operation (+3V to +15V) Bipolar-Supply Operation (±3V to ±8V)
♦ Low Power Consumption, <1µW
♦ TTL/CMOS-Logic Compatible
Product Applications
Battery-Operated Systems
Heads-Up Displays
Audio and Video Switching
Test Equipment
±5V DACs and ADCs
Sample-and-Hold Circuits
Guidance and Control Systems
Military Radios
Communications Systems
PBX, PABX
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MAX392CPE+ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 3V ~ 15V |
| Voltage - Supply, Dual (V+) | ±3V ~ 8V |
| Switch Time (Ton, Toff) (Max) | 130ns, 75ns |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | MAX392 |
Product Photos
