Hot-selling and scarce MP3386EY-LF-Z 50V, 6 String White LED Driver SOP-28

Product Descriptions

The MP3386 is a step-up converter with 6- channel current sources designed for driving the white LED arrays for large size LCD panel backlighting applications.

The MP3386 uses current mode, fixed frequency architecture. The switching frequency can be selected at 1.25MHz or 625kHz. It generates an output voltage up to 50V from a 4.5V to 25V input supply. The MP3386 regulates the current in each LED string to the user programmed value set by an external current setting resistor.

The MP3386 applies 6 internal current sources in each LED string terminal to get current balance. And the current matching achieves 3 PERCENT regulation accuracy between strings. Its low 600mV regulation voltage on LED current sources reduces power loss and improves efficiency.

The MP3386 features external PWM dimming or DC input PWM dimming, which allows the flexible control of the backlighting luminance under wide range of the ambient brightness, and also avoids the possibility of PWM dimming audible noise. The dimming PWM signal can be generated internally, and the dimming frequency is programmed by an external setting capacitor.

Product Features

• High Efficiency and Small Size

• 4.5V to 25V Input Voltage Range

• 50V Maximum Step-up Voltage

• Balanced Driver for 6 Strings of WLED

• 3 PERCENT Current Matching Accuracy Between Strings

• Selectable Switching Frequency: 1.25MHz or 625kHz

• PWM or DC Input Burst PWM Dimming

• Programmable Over-voltage Protection Threshold

• Under Voltage Lockout

• Open and Short LED Protection

• Thermal Shutdown

• Small QFN24 (4x4mm) and 28-pin SOIC Package

Product Applications

• Notebook & Netbook PC

• Small LCD TV

• Handy Terminals Display

• Automotive System and Tablet Computer

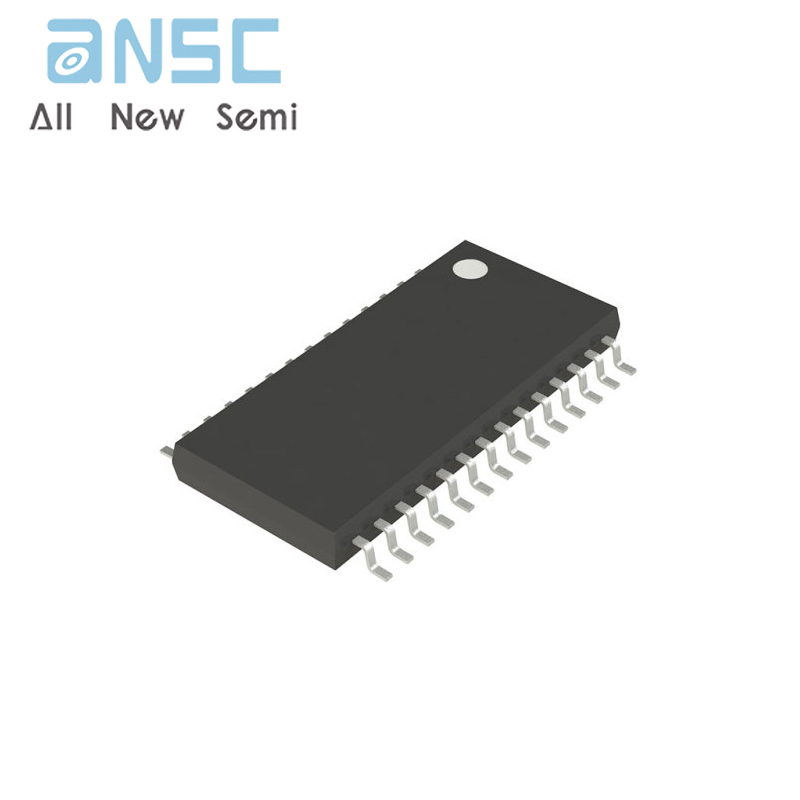

Product Photos

For more product information, please download the PDF
