Hot-selling and scarce HX1188FNL 100Base-TX Single Port Surface Mount Magnetics SMD spot stock
Manufacturer Product Number
HX1188FNL
Description
HX1188FNL 100Base-TX Single Port Surface Mount Magnetics SMD spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
RoHS peak reflow temperature rating: 245°C
Meets IEEE 802.3 specification
Compact footprint for use in the most spacerestrictive applications
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HX1188FNL |
| Category | Transformers |
| Pulse Transformers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Active |
| Transformer Type | Isolation and Data Interface (Encapsulated) |
| Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.500" L x 0.358" W (12.70mm x 9.09mm) |
| Height - Seated (Max) | 0.241" (6.12mm) |
| Operating Temperature | -40°C ~ 85°C |

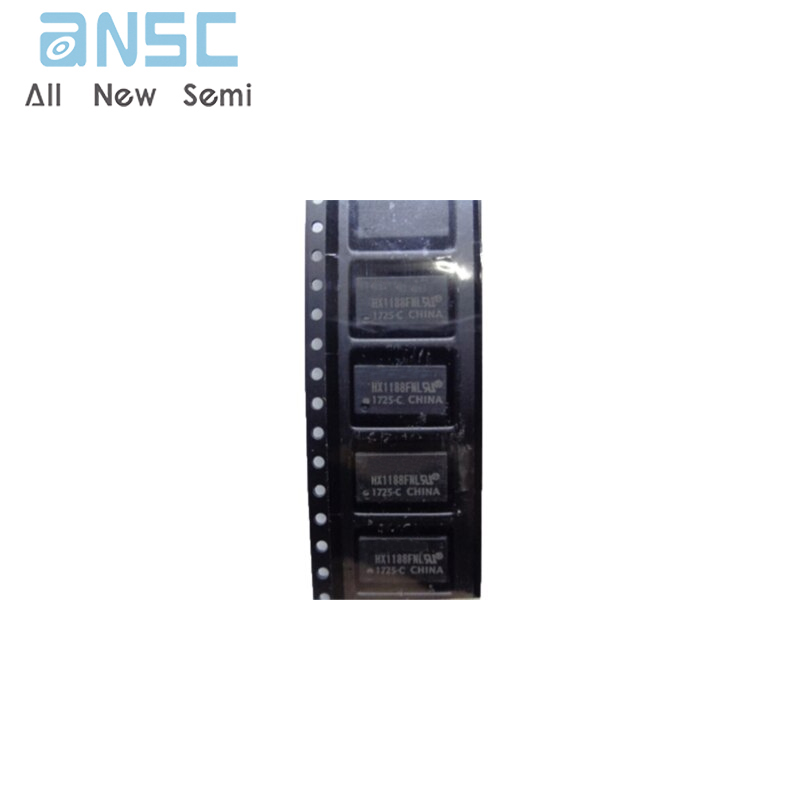

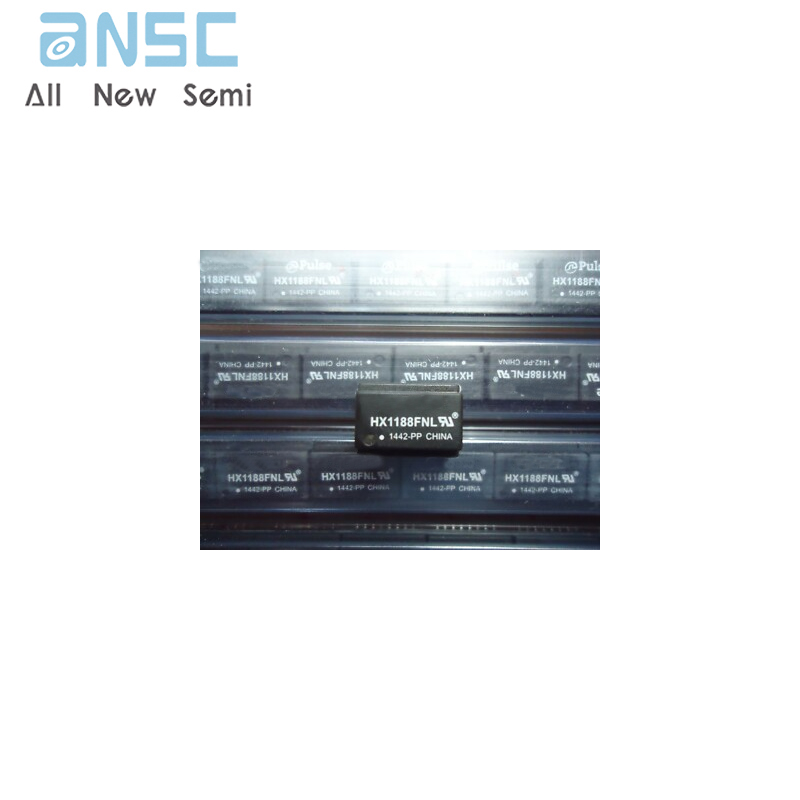

Product Photos
、
For more product information, please download the PDF
