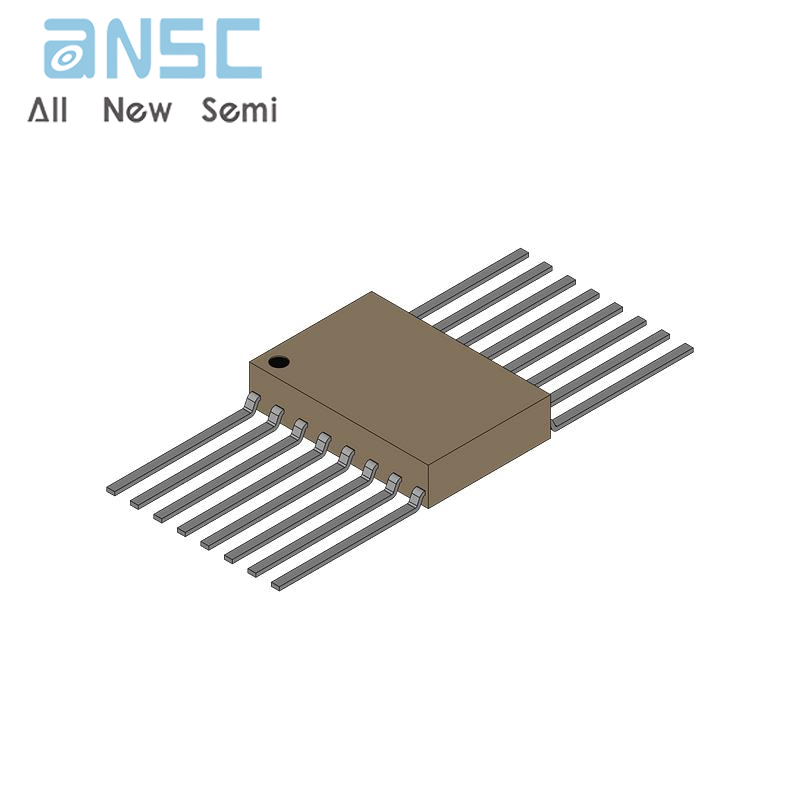

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce FAN1654MTFX 1.5A LDO, DDR Bus Termination Regulator TSSOP16 spot stock
Manufacturer Product Number
FAN1654MTFX
Description
FAN1654MTFX 1.5A LDO, DDR Bus Termination Regulator TSSOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The FAN1654 is a low-cost bi-directional LDO specifically designed for terminating DDR memory bus. It can both sink and source up to 1A continuous, 1.5A peak, providing enough current for most DDR applications. Load regulation meets the JEDEC spec, VTT = (VDDQ/2) ± 40mV.
The FAN1654 includes a buffered reference voltage capable of supplying up to 5mA current. On-chip thermal limiting provides protection against a combination of power overload and ambient temperature that would create an excessive junction temperature. A shutdown input puts the FAN1654 into a low power mode for laptop computer applications.
The FAN1654 regulator is available in a power-enhanced eTSSOP™-16 package, and the standard SOIC-14.
Product Features
• Sinks and sources 1A continuous, 1.5A peak
• -40°C to +125°C Operating Range
• Load regulation: (VDDQ/2) ± 40mV
• 5mA VREF buffer tracks VTT
• On-chip thermal limiting
• Power-enhanced eTSSOP™-16 package
• Low Current Shutdown Mode
• Output Short Circuit Protection
Product Applications
• DDR terminators
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-FAN1654MTFX |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Special Purpose Regulators | |
| Manufacturer | - |
| Packaging | Bulk |
| Part Status | Active |
| Applications | LDO (Linear), DDR |
| Voltage - Input | 2.3V ~ 3.6V |
| Number of Outputs | 1 |
| Voltage - Output | Multiple |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
| Base Product Number | FAN1654 |
