Hot-selling and scarce 80HCPS1848CRMI 18-Port 48-Lane 240Gbps Gen2 RapidIO Switch BGA spot stock

Product Descriptions

The CPS-1848 (80HCPS1848) is a RapidIO Specification (Rev. 2.1) compliant Secure Packet Switch whose functionality is central to  routing packets for distribution among DSPs, processors, FPGAs,  other switches, or any other RapidIO-based devices. It can also be  used in RapidIO backplane switching. The CPS-1848 supports Serial  RapidIO (S-RIO) packet switching (unicast, multicast, and an optional  broadcast) from any of its 18 input ports to any of its 18 output ports.

Product Features

• RapidIO ports

— 48 bidirectional S-RIO lanes

— Port widths of 1x, 2x, and 4x allow up to 20 Gbps per port

— Port speeds selectable: 6.25, 5, 3.125, 2.5, or 1.25 Gbaud

— Support Level I defined short or long haul reach, and Level II defined short-, medium-, or long-run reach for each PHY speed

— Error Management Extensions support

— Software-assisted error recovery, supporting hot swap

• I2C Interfaces

— Provides I2C port for maintenance and error reporting

— Master or Slave operation

— Master allows power-on configuration from external ROM

— Master mode configuration with external image compressing and checksum

• Switch

— 240 Gbps peak throughput

— Non-blocking data flow architecture

— Configurable for Cut-Through or Store-and-Forward data flow

— Very low latency for all packet lengths and load conditions

— Internal queuing buffer and retransmit buffer

— Standard transmitter- or receiver-controlled flow control

— Global routing or Local Port routing capability

— Supports up to 40 simultaneous multicast masks, with broadcast

— Performance monitoring counters for performance and diagnostics analysis. Per input port and output port counters

• SerDes

— Transmitter pre-emphasis and drive strength + receiver equalization provides best possible signal integrity

— Embedded PRBS generation and detection with programmable polynomials support Bit Error Rate testing

• Additional Information

— Packet Trace/Mirror. Each input port can copy all incoming packets matching user-defined criteria to a “trace” output port.

— Packet Filter. Each input port can filter (drop) all incoming packets matching user-defined criteria.

— Device configurable through any of S-RIO ports, I2C, or JTAG

— Full JTAG Boundary Scan Support (IEEE1149.1 and 1149.6)

— Lidless 784-FCBGA Package: 29  29 mm, 1.0 mm ball pitch

Product Applications

​

• High-performance computing

• Wireless

• Defense and aerospace

• Video and imaging

Product Specification

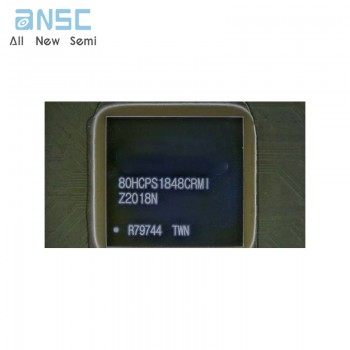

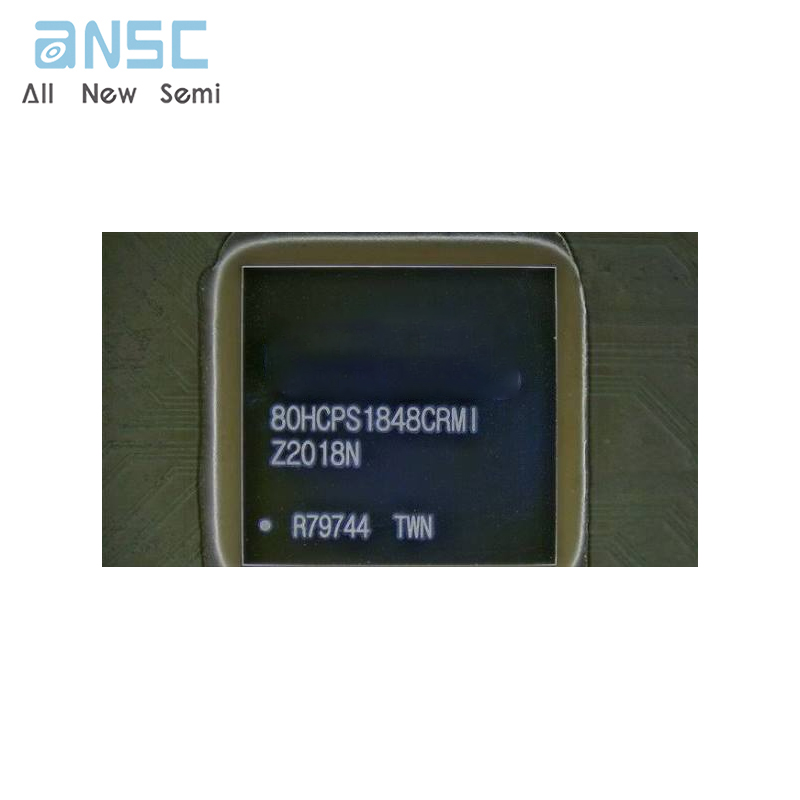

Product Photos

For more product information, please download the PDF
