Spot sales of HCF40102BE 8-STAGE PRESETTABLE SYNCHRONOUS DOWN COUNTERS DIP-16

Product Descriptions

The HCC40102B, HCC40103B, (extended temperature range) and the HCF40102B, HCF40103B (intermediate temperature range) are monolithic integrated circuits, available in 16-lead dual in-line plastic or ceramic package.

The HCC/HCF40102B, and HCC/HCF40103B consist of an 8-stage synchronous down counterwith asingle output whichisactivewhen the internal count is zero. The HCC/HCF40102B is configured as two cascaded 4-bit BCD counters, and the HCC/HCF40103B contains a single 8-bit binary counter. Each type has control inputs for enabling or disabling the clock, for clearing the counter to its maximum count, and for presetting the counter either synchronously or asynchronously.

All control inputs and the CARRY-OUT/ZERO-DETECT output are active-low logic. In normal operation, the counter is decremented by one count on each positive transition of the CLOCK. Counting is inhibited when the CARRY-IN/COUNTER ENABLE (CI/CE) input is high.

Product Features

. SYNCHRONOUS OR ASYNCHRONOUS PRESET

. MEDIUM-SPEED OPERATION : fCL = 3.6MHz (TYP.) @ VDD = 10V

. CASCADABLE

. QUIESCENT CURRENT SPECIFIED TO 20V FOR HCC DEVICE

. 5V, 10V AND 15V PARAMETRIC RATINGS

.INPUT CURRENT OF100 nA AT 18V AND 25°C FOR HCC DEVICE

. 100 percent TESTED FOR QUIESCENT CURRENT

. MEETS ALL REQUIREMENTS OF JEDECTENTATIVE STANDARD No 13 A, ”STANDARD SPECIFICATIONS FOR DESCRIPTION OF ”B” SERIES CMOS DEVICES”

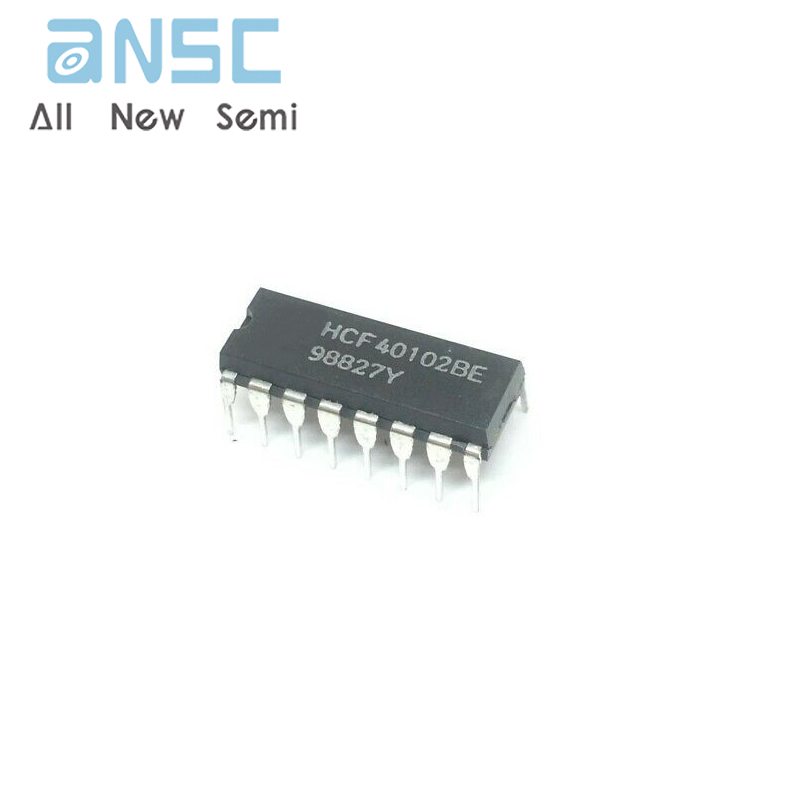

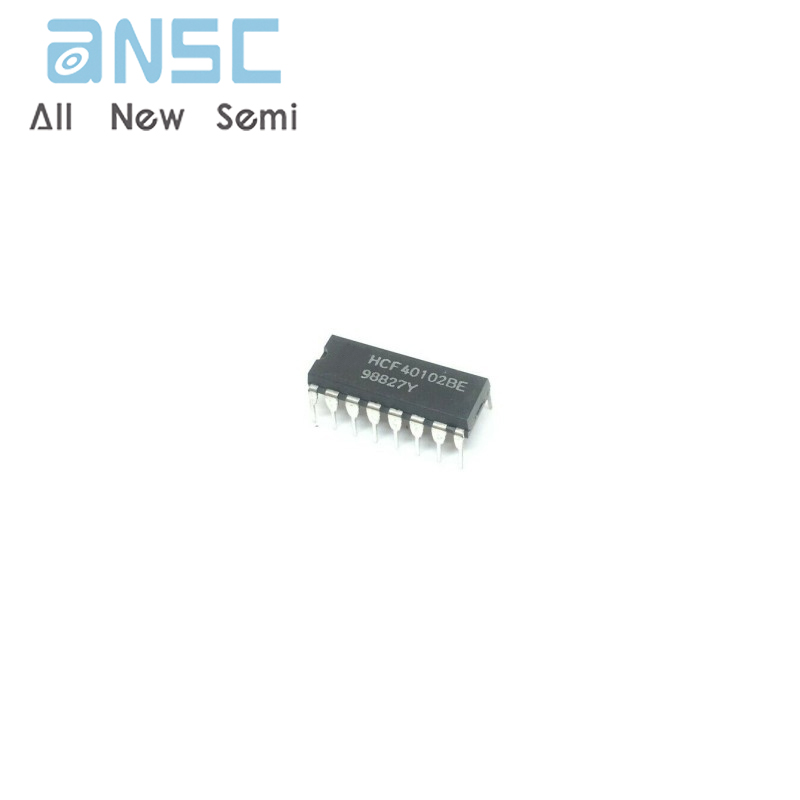

Product Photos

For more product information, please download the PDF
