Hot-selling and scarce HEF4094BT 8-stage shift-and-store bus register SOP16 spot stock

Product Descriptions

The HEF4094B is an 8-stage serial shift register having a storage latch associated with each stage for strobing data from the serial input to parallel buffered 3-state outputs O0 to O7. The parallel outputs may be connected directly to common bus lines. Data is shifted on positive-going clock transitions. The data in each shift register stage is transferred to the storage register when the strobe (STR) input is HIGH. Data in the storage register appears at the outputs whenever the output enable (EO) signal is HIGH.

Two serial outputs (Os and O’s) are available for cascading a number of HEF4094B devices. Data is available at Os on positive-going clock edges to allow high-speed operation in cascaded systems in which the clock rise time is fast. The same serial information is available at O’s on the next negative-going clock edge and provides cascading HEF4094B devices when the clock rise time is slow.

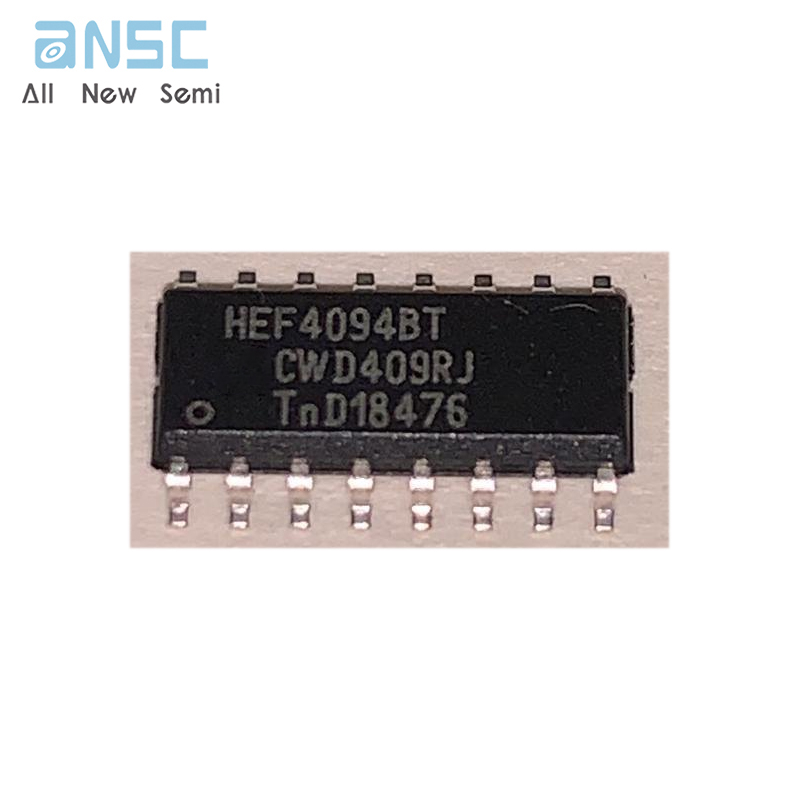

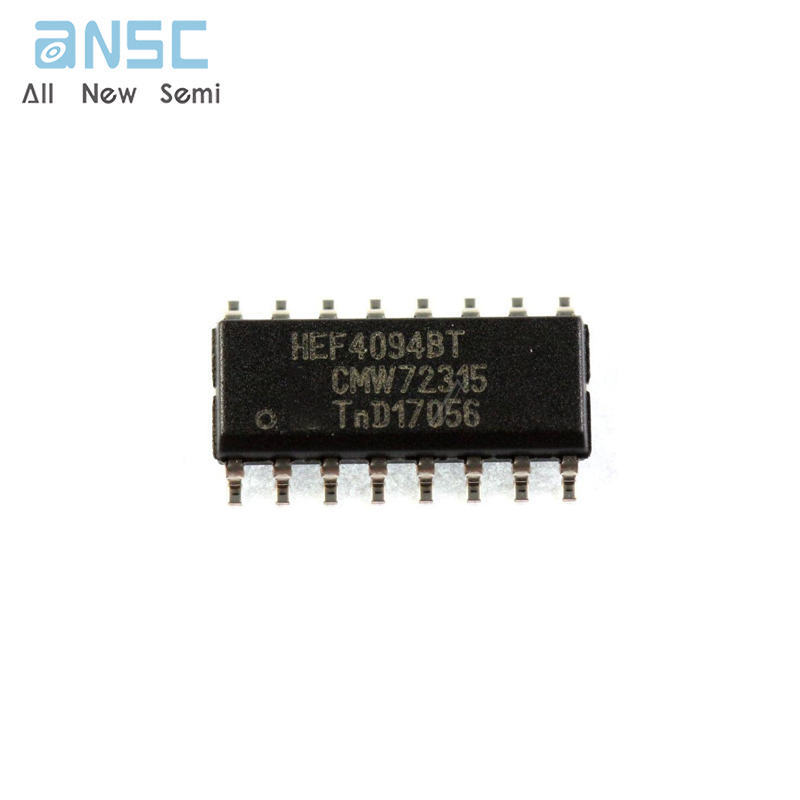

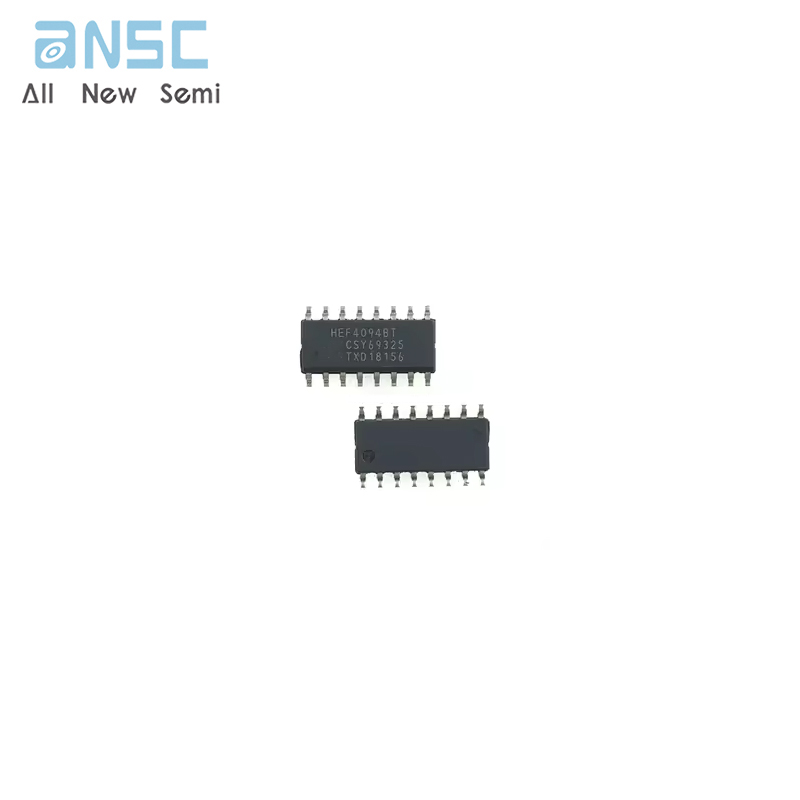

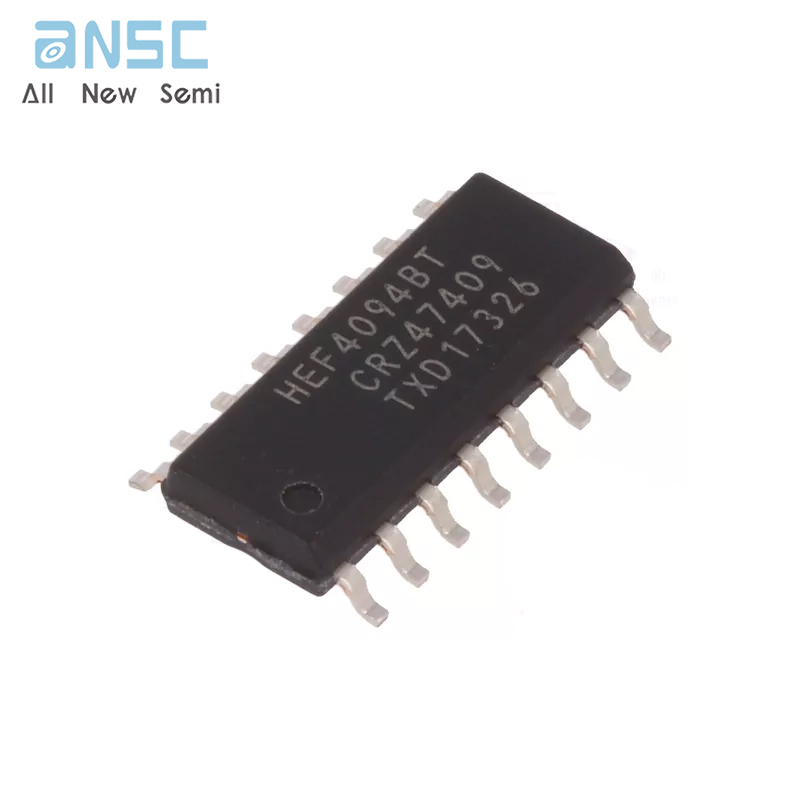

Product Photos

For more product information, please download the PDF
