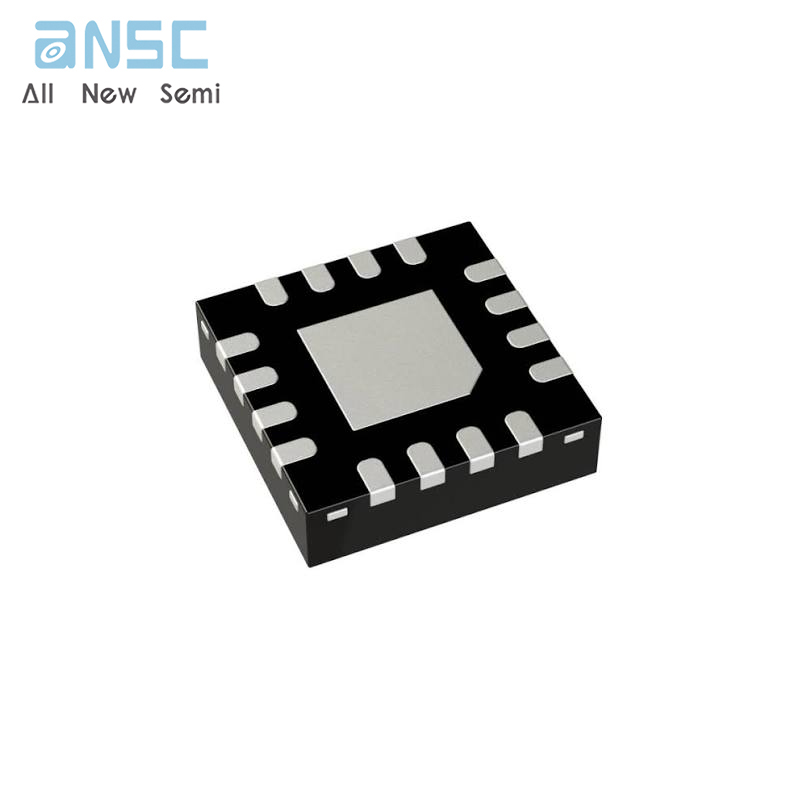

HMC540SLP3E 1 dB LSB SILICON MMIC 4-BIT DIGITAL POSITIVE CONTROL ATTENUATOR VFQFN16 spot stock

Product Descriptions

The  HMC540SLP3E  is  a  broadband  4-bit  SiliconIC digital attenuator  in a  low cost  leadless surface mount    package .    This    single    positive    control line  per  bit  digital  attenuator  utilizes  off  chip  ACground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications .Covering  0.1  to  8  GHz,  the  insertion  loss  is  less than  1  dB  typical .  The  attenuator  bit  values  are 1 (LSB), 2, 4 and 8 dB for a total attenuation of   15dB .  Attenuation  accuracy  is  excellent  at  ±  0.2  dB typical step error. The attenuator also features a IIP3of +56dBm . Four TTL/CMOS control inputs are used to select each attenuation state .  It can operate with a single Vdd ranging from +3.3V to 5V.​

Product Features

1 dB LSB Steps to 15 dB

± 0.2 dB Typical Step Error

Low Insertion Loss: =< 1 dB

High IP3: +56 dBm

Single Control Line Per Bit

TTL/CMOS Compatible Control

Single +3.3/+5V Supply

3x3 mm SMT Package

ESD rating: Class 2 (2kV HBM)

Drop-in Replacement for HMC540LP3E

Product Applications

The HMC540SLP3E is ideal for both RF and IF applications:

• Cellular Infrastructure

• Wireless Infrastructure

• Microwave Radio & VSAT

• Test Equipment and Sensors

Product Specification

Product Photos

For more product information, please download the PDF
