Hot-selling and scarce ADV7180WBCPZ 10-Bit 4× Oversampling SDTV Video Decoder QFN40 spot stock

Product Descriptions

The ADV7180 automatically detects and converts standardanalog baseband television signals compatible with worldwideNTSC, PAL, and SECAM standards into 4:2:2 component videodata compatible with the 8-bit ITU-R BT.656 interface standard

The simple digital output interface connects gluelessly to a widerange of MPEG encoders, codecs, mobile video processors, andAnalog Devices,Inc., digital video encoders,such as the ADV7391 .External HS, VS, and FIELD signals provide timing referencesfor LCD controllers and other video ASICs,if required .Accurate10-bit analog-to-digital conversion provides professional quality​ video performance for consumer applications with true 8-bitdata resolution.Three analog video input channels accept standardcomposite, S-Video, or component video signals, supporting awide range of consumer video sources.AGC and clamp-restorecircuitry allow an input video signal peak-to-peak range to 1.0 V.Alternatively, these can be bypassed for manual settings .

Product Features

Qualified for automotive applications

Worldwide NTSC/PAL/SECAM color demodulation support

One 10-bit ADC, 4× oversampling for CVBS, 2× oversampling

for Y/C mode, and 2× oversampling for YPrPb (per channel)

3 video input channels with on-chip antialiasing filter

CVBS (composite),Y/C (S-Video), and YPrPb (component)

video input support

5-line adaptive comb filters and CTI/DNR video

enhancement

Mini-TBC functionality provided by adaptive digital line

length tracking (ADLLT), signal processing, and enhanced

FIFO management

Integrated AGC with adaptive peak white mode

Macrovision copy protection detection

NTSC/PAL/SECAM autodetection

8-bit ITU-R BT.656 YCrCb 4:2:2 output and HS,VS, and FIELD 1

1.0 V analog input signal range

Full-featured VBI data slicer with teletext support (WST)

Power-down mode and ultralow sleep mode current

2-wire serial MPU interface (I2C compatible)

Product Applications

Digital camcorders and PDAs

Low cost SDTV PIP decoders for digital TVs

Multichannel DVRs for video security

AV receivers and video transcoding

PCI-/USB-based video capture and TV tuner cards

Personal media players and recorders

Smartphone/multimedia handsets

In-car/automotive infotainment units

Rearview camera/vehicle safety systems

Product Specification

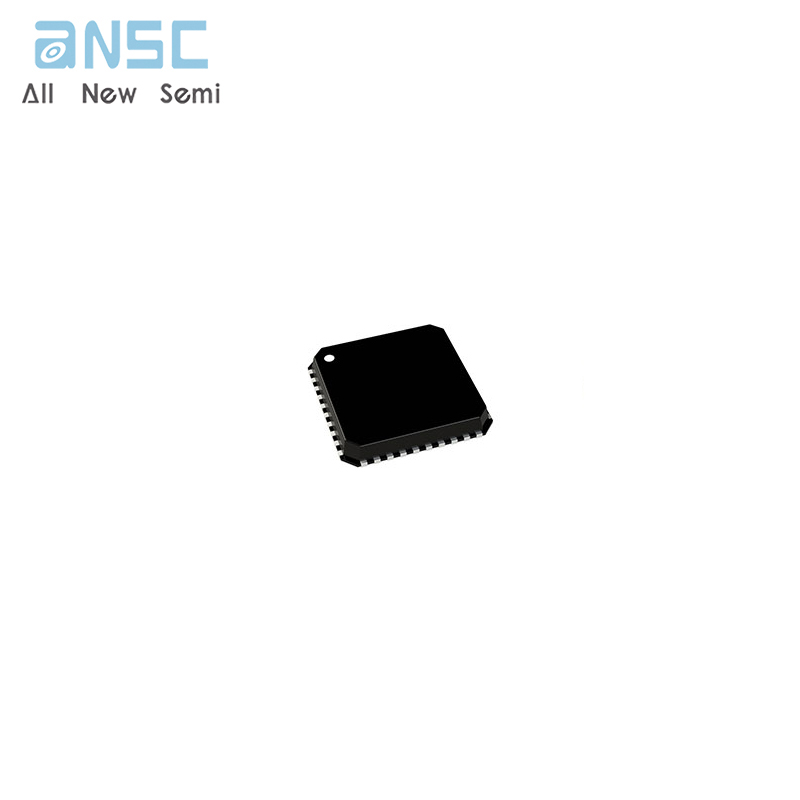

Product Photos

For more product information, please download the PDF
