Spot sales of CA3130E 15MHz, BiMOS Operational Amplifier with MOSFET Input/CMOS Output DIP-8
Manufacturer Product Number
CA3130E
Description
CA3130E 15MHz, BiMOS Operational Amplifier with MOSFET Input/CMOS Output DIP-8
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
CA3130A and CA3130 are op amps that combine the advantage of both CMOS and bipolar transistors.
Gate-protected P-Channel MOSFET (PMOS) transistors are used in the input circuit to provide very-high-input impedance, very-low-input current, and exceptional speed performance. The use of PMOS transistors in the input stage results in common-mode input-voltage capability down to 0.5V below the negative-supply terminal, an important attribute in single-supply applications.
A CMOS transistor-pair, capable of swinging the output voltage to within 10mV of either supply-voltage terminal (at very high values of load impedance), is employed as the output circuit.
The CA3130 Series circuits operate at supply voltages ranging from 5V to 16V, (2.5V to 8V). They can be phase compensated with a single external capacitor, and have terminals for adjustment of offset voltage for applications requiring offset-null capability. Terminal provisions are also made to permit strobing of the output stage.
Product Features
• MOSFET Input Stage Provides:
- Very High ZI = 1.5 T (1.5 x 1012) (Typ)
- Very Low II . . . . . . . . . . . . . 5pA (Typ) at 15V Operation
. . . . . . . . . . . . . . . . . . . . . = 2pA (Typ) at 5V Operation
• Ideal for Single-Supply Applications
• Common-Mode Input-Voltage Range Includes
Negative Supply Rail; Input Terminals can be Swung 0.5V
Below Negative Supply Rail
• CMOS Output Stage Permits Signal Swing to Either (or both) Supply Rails
• Pb-Free Plus Anneal Available (RoHS Compliant)
Product Applications
• Ground-Referenced Single Supply Amplifiers
• Fast Sample-Hold Amplifiers
• Long-Duration Timers/Monostables
• High-Input-Impedance Comparators
(Ideal Interface with Digital CMOS)
• High-Input-Impedance Wideband Amplifiers
• Voltage Followers (e.g. Follower for Single-Supply D/A Converter)
• Voltage Regulators (Permits Control of Output Voltage Down to 0V)
• Peak Detectors
• Single-Supply Full-Wave Precision Rectifiers
• Photo-Diode Sensor Amplifiers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CA3130E |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | - |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 30V/µs |
| Gain Bandwidth Product | 15 MHz |
| Current - Input Bias | 5 pA |
| Voltage - Input Offset | 8 mV |
| Current - Supply | 10mA |
| Current - Output / Channel | 45 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 16 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | CA3130 |

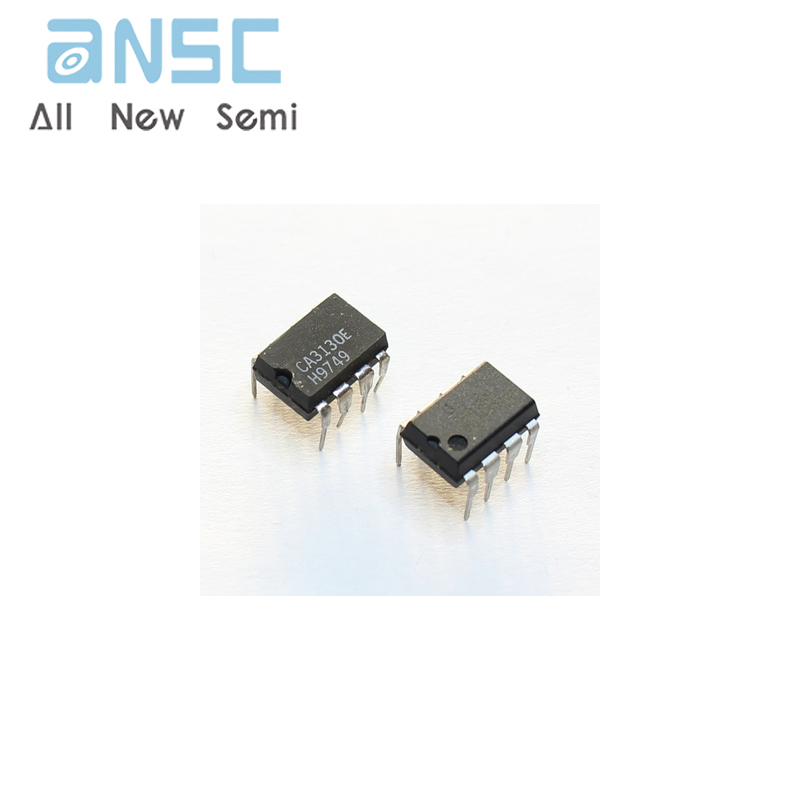

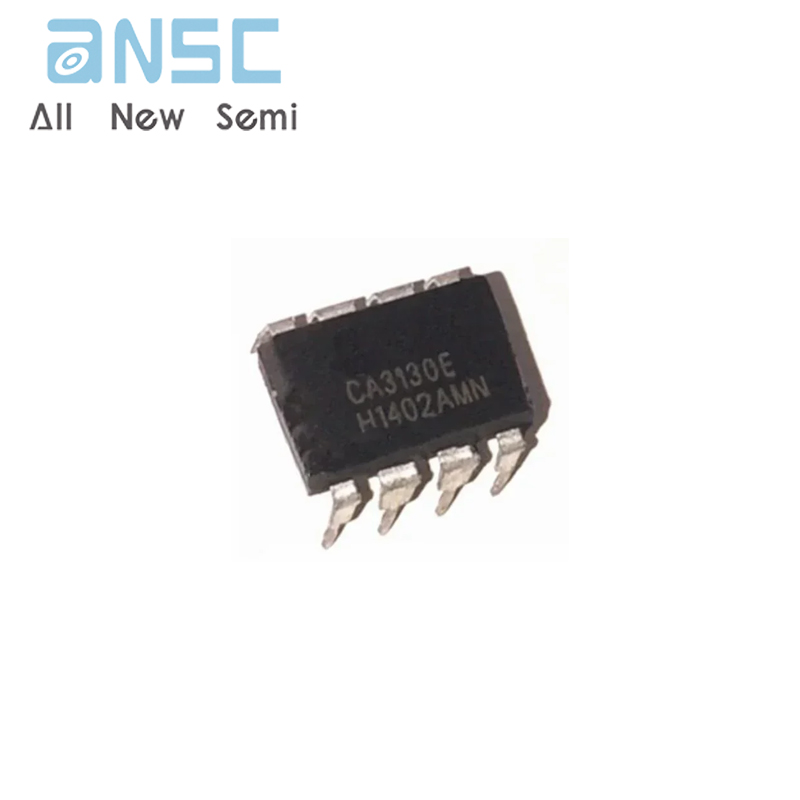

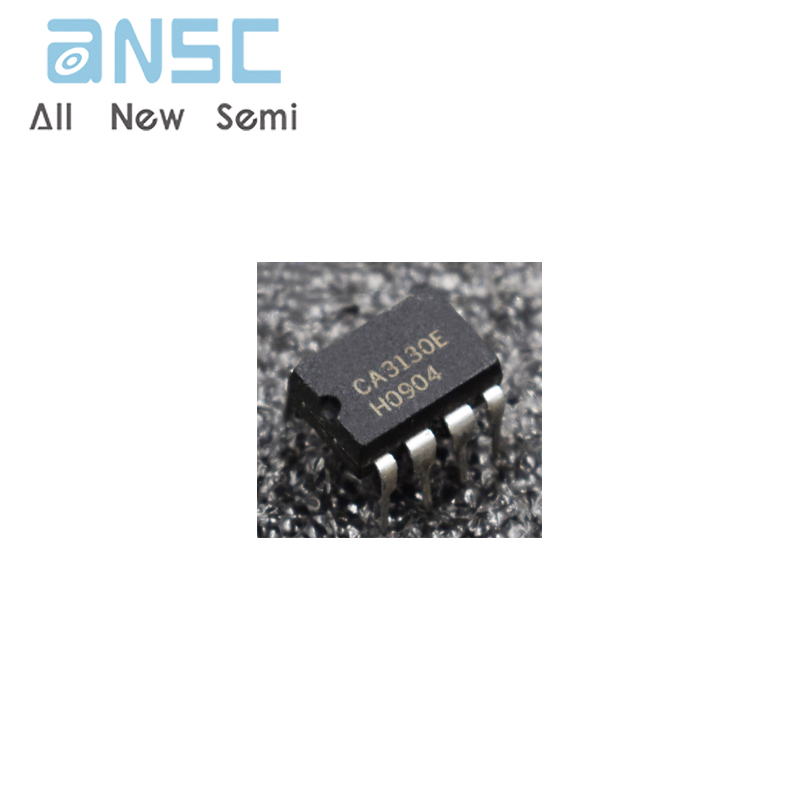

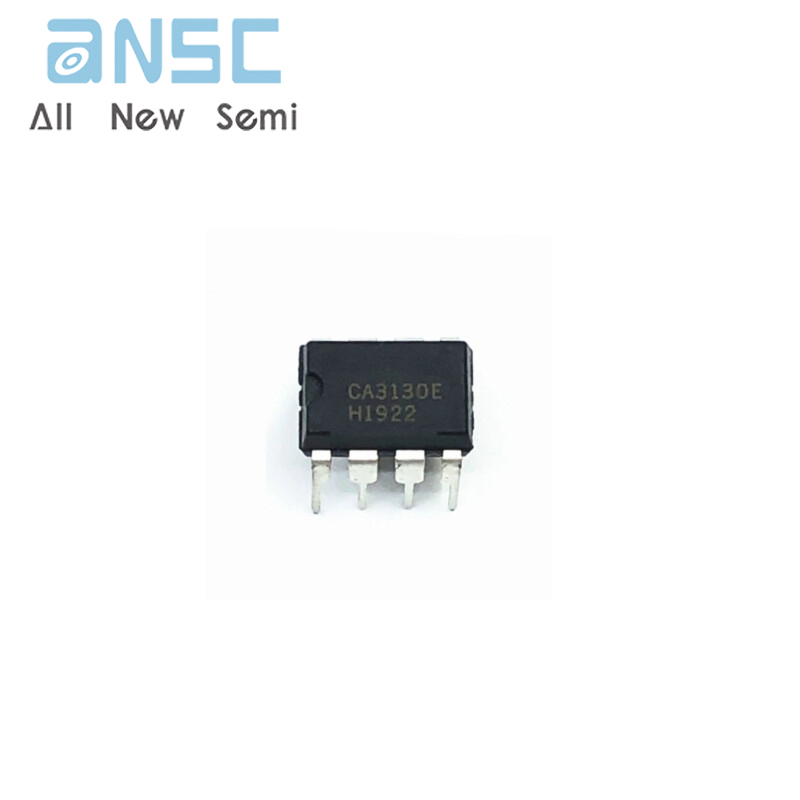

Product Photos
