Hot-selling and scarce KA3525A SMPS Controller IC DIP16 spot stock
Manufacturer Product Number
KA3525A
Description

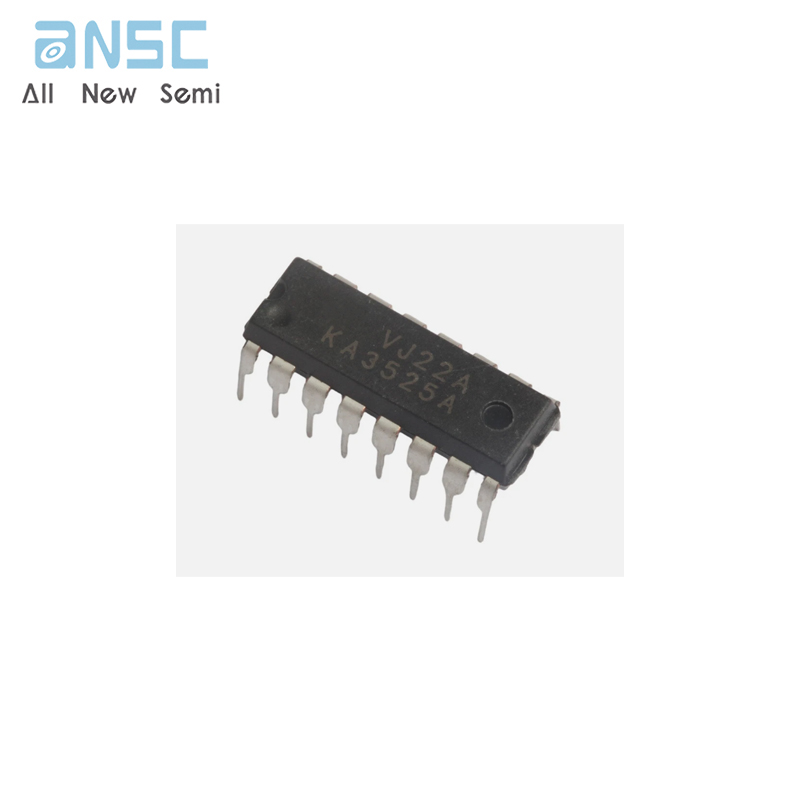

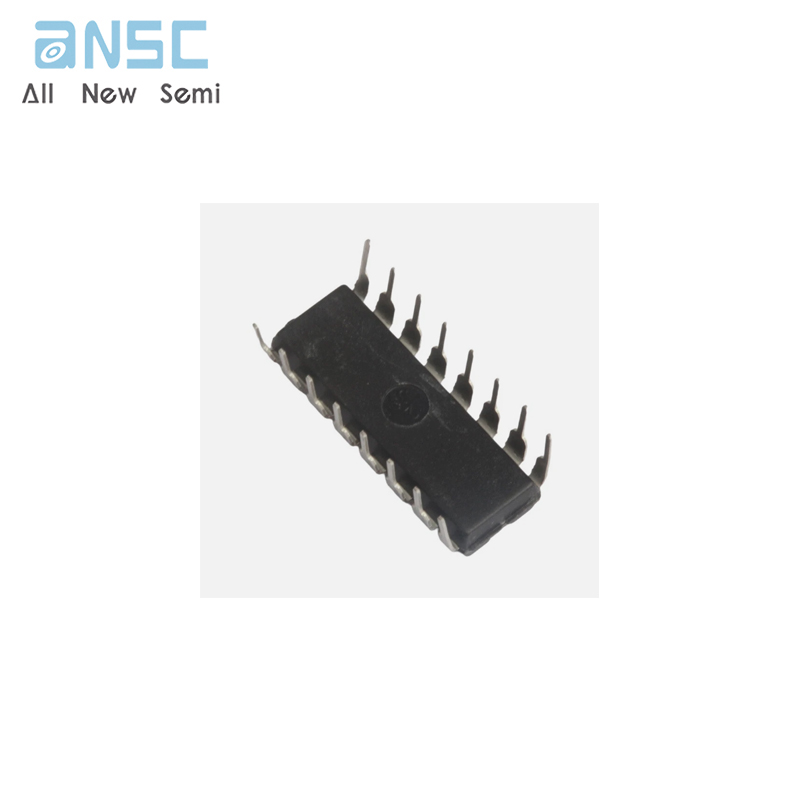

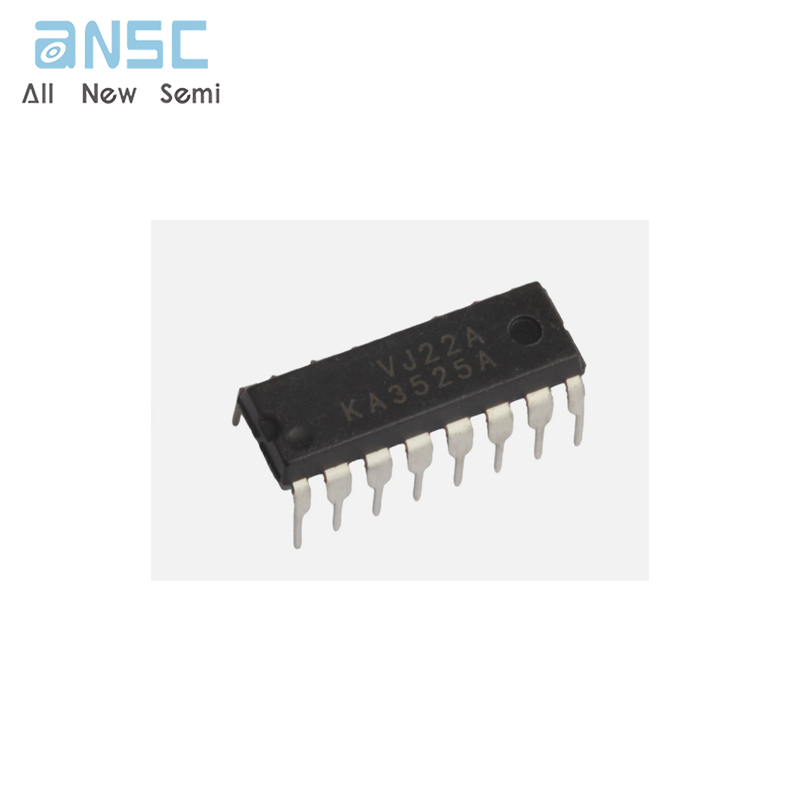

KA3525A SMPS Controller IC DIP16 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The KA3525A is a monolithic integrated circuit that includes all of the control circuits necessary for a pulse width modulating regulator. There are a voltage reference, an error amplifier, a pulse width modulator, an oscillator, an under voltage lockout, a soft start circuit, and the output driver in the chip.
Product Features
• 5V ±1% Reference
• Oscillator Sync Terminal
• Internal Soft Start
• Deadtime Control
• Under Voltage Lockout
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-KA3525A |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Output Type | Transistor Driver |
| Output Configuration | Positive |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 20V |
| Frequency - Switching | 60Hz ~ 430kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Control Features | Enable, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| Base Product Number | KA3525 |
