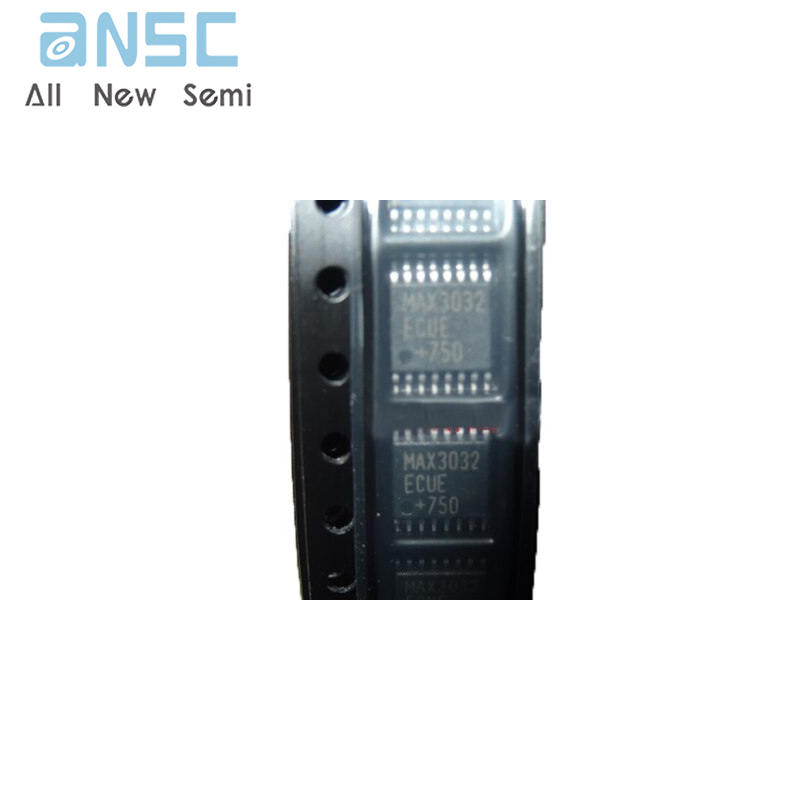

Hot-selling and scarce MAX3032ECUE+T +15,kV ESD-Protected, 3.3V Quad RS-422 Transmitters TSSOP16 spot stock

Product Descriptions

The MAX3030E–MAX3033E family of quad RS-422 transmitters send digital data transmission signals over twisted-pair balanced lines in accordance with TIA/EIA- 422-B and ITU-T V.11 standards. All transmitter outputs are protected to ±15kV using the Human Body Model. The MAX3030E–MAX3033E are available with either a 2Mbps or 20Mbps guaranteed baud rate. The 2Mbps baud rate transmitters feature slew-rate-limiting to minimize EMI and reduce reflections caused by improperly terminated cables.

The 20Mbps baud rate transmitters feature low-static current consumption (ICC < 100µA), making them ideal for battery-powered and power-conscious applications. They have a maximum propagation delay of 16ns and a part-to-part skew less than 5ns, making these devices ideal for driving parallel data. The MAX3030E– MAX3033E feature hot-swap capability that eliminates false transitions on the data cable during power-up or hot insertion.

The MAX3030E–MAX3033E are low-power, ESD-protected, pin-compatible upgrades to the industry-standard 26LS31 and SN75174. They are available in space-saving 16-pin TSSOP and SO packages.

Product Features

♦ Meet TIA/EIA-422-B (RS-422) and ITU-T V.11 Recommendation

♦ ±15kV ESD Protection on Tx Outputs

♦ Hot-Swap Functionality

♦ Guaranteed 20Mbps Data Rate (MAX3030E, MAX3032E)

♦ Slew-Rate-Controlled 2Mbps Data Rate (MAX3031E, MAX3033E)

♦ Available in 16-Pin TSSOP and Narrow SO Packages

♦ Low-Power Design (<330µW, VCC = 3.3V Static)

♦ +3.3V Operation

♦ Industry-Standard Pinout

♦ Thermal Shutdown

Product Applications

Telecom Backplanes

V.11/X.21 Interface

Industrial PLCs

Motor Control

Product Specification

Product Photos

、

For more product information, please download the PDF
