Hot-selling and scarce AD7665ASTZ 16-Bit 570 kSPS CMOS ADC QFP48 spot stock

Product Descriptions

The AD7665 is a 16-bit, 570 kSPS, charge redistribution SAR, analog-to-digital converter that operates from a single 5 V power supply. It contains a high speed 16-bit sampling ADC, a resistor input scaler that allows various input ranges, an internal conversion clock, error correction circuits, and both serial and parallel system interface ports.

The AD7665 is hardware factory-calibrated and is comprehensively tested to ensure such ac parameters as signal-to-noise ratio (SNR) and total harmonic distortion (THD), in addition to the more traditional dc parameters of gain, offset, and linearity.

It features a very high sampling rate mode (Warp), a fast mode (Normal) for asynchronous conversion rate applications, and for low power applications, a reduced power mode (Impulse) where the power is scaled with the throughput.

Product Features

Throughput

570 kSPS (Warp Mode)

500 kSPS (Normal Mode)

INL:  2.5 LSB Max (  0.0038% of Full Scale)

16-Bit Resolution with No Missing Codes

S/(N+D): 90 dB Typ @ 180 kHz

THD: –100 dB Typ @ 180 kHz

Analog Input Voltage Ranges

Bipolar:   10 V,  5 V,  2.5 V

Unipolar: 0 V to 10 V, 0 V to 5 V, 0 V to 2.5 V

Both AC and DC Specifications

No Pipeline Delay

Parallel (8/16 Bits) and Serial 5 V/3 V Interface

SPI®/QSPI™/MICROWIRE™/DSP Compatible

Single 5 V Supply Operation

Power Dissipation

64 mW Typical

15  W @ 100 SPS

Power-Down Mode: 7  W Max

Package: 48-Lead Quad Flatpack (LQFP)

Package: 48-Lead Chip Scale (LFCSP)

Pin-to-Pin Compatible Upgrade of the AD7664/AD7663

Product Applications

Data Acquisition

Communication

Instrumentation

Spectrum Analysis

Medical Instruments

Process Control

Product Specification

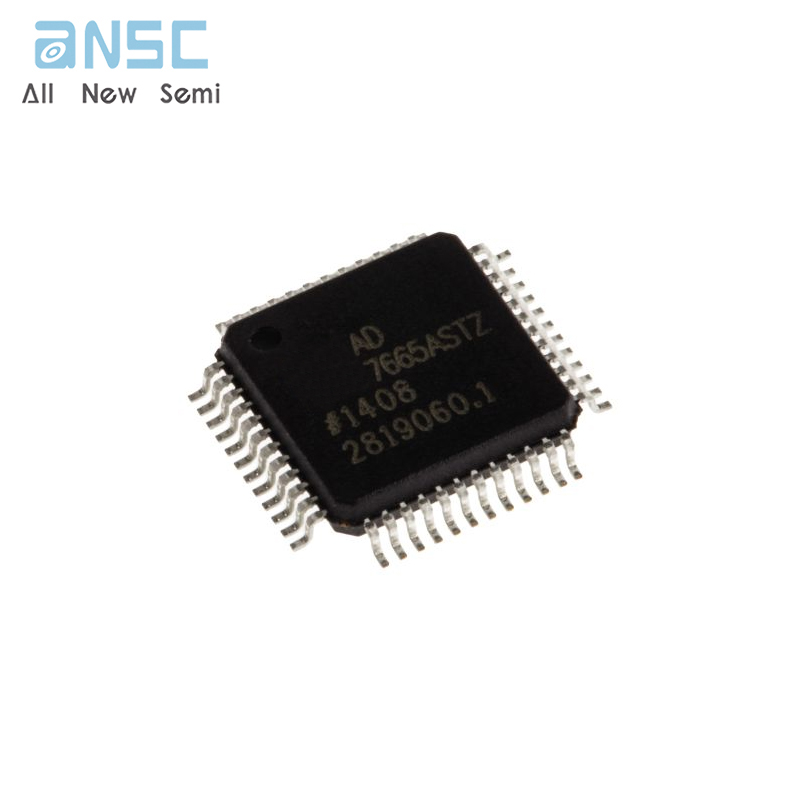

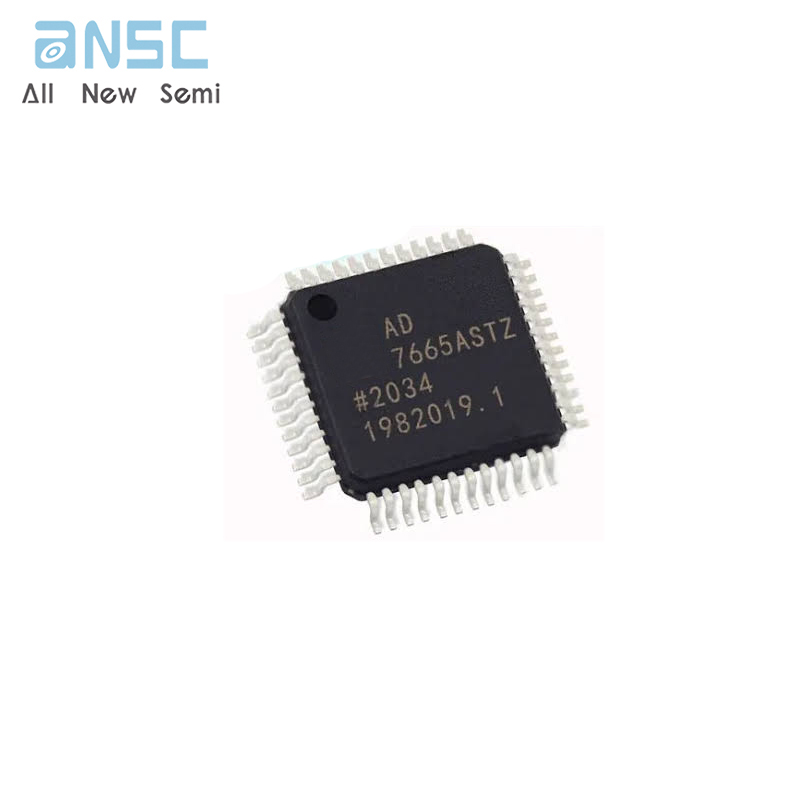

Product Photos

For more product information, please download the PDF
