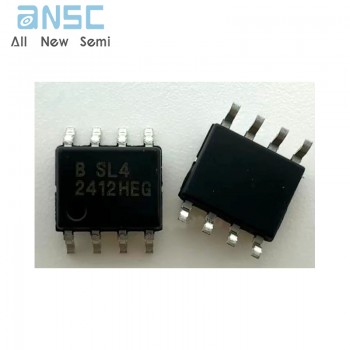

Hot-selling and scarce CDNBS08-SLVU2.8-4 Low Capacitance TVS Array SOP8
Manufacturer Product Number
CDNBS08-SLVU2.8-4
Description
CDNBS08-SLVU2.8-4 Low Capacitance TVS Array SOP8
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components.
offers Transient Voltage Suppressor Array combination diodes for surge and ESD protection applications in an eight lead narrow body SOIC package size format. Chip Diodes conform to JEDEC standards, are easy to handle on standard pick and place equipment and their flat configuration minimizes roll away.
The device will meet IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT) and IEC 61000-4-5 (Surge) requirements.
Product Features
■ RoHS compliant*
■ Protects up to four I/O ports
■ Surge protection
■ ESD protection
■ Low capacitance: 6 pF
Product Applications
■ Ethernet - 10/100 Base T
■ Personal digital assistants
■ LAN devices
■ Instrumentation
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CDNBS08-SLVU2.8-4 |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 2.8V (Max) |
| Voltage - Breakdown (Min) | 3V |
| Voltage - Clamping (Max) @ Ipp | 21V |
| Current - Peak Pulse (10/1000µs) | 30A 8/20µs) |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Ethernet |
| Capacitance @ Frequency | 6pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | CDNBS08 |

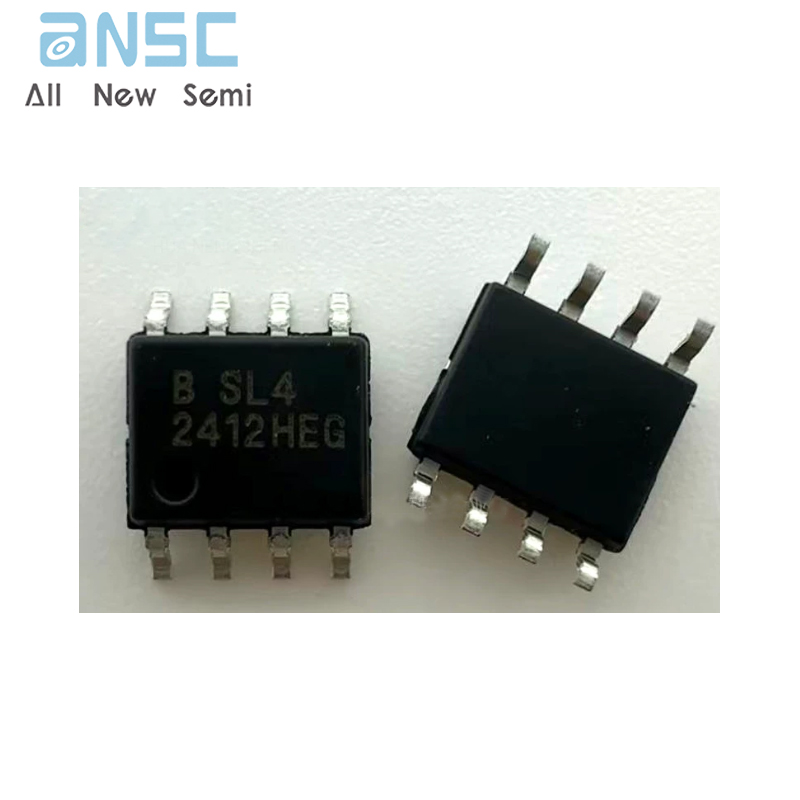

Product Photos
For more product information, please download the PDF
