Hot-selling and scarce AD8345AREZ-RL7 140 MHz to 1000 MHz Quadrature Modulator TSSOP16 spot stock
Manufacturer Product Number
AD8345AREZ-RL7
Description
AD8345AREZ-RL7 140 MHz to 1000 MHz Quadrature Modulator TSSOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AD8345 is a silicon RFIC quadrature modulator, designed for use from 140 MHz to 1000 MHz. Its excellent phase accuracy and amplitude balance enable the high performance direct modulation of an IF carrier.
The AD8345 accurately splits the external LO signal into two quadrature components through the polyphase phase splitter network. The I and Q LO components are mixed with the baseband I and Q differential input signals. Finally, the outputs of the two mixers are combined in the output stage to provide a single-ended 50 Ω drive at VOUT.
Product Features
140 MHz to 1000 MHz operating frequency
+2.5 dBm P1dB @ 800 MHz
−155 dBm/Hz noise floor
0.5 degree RMS phase error (IS95)
0.2 dB amplitude balance
Single 2.7 V to 5.5 V supply
Pin-compatible with AD8346 and AD8349
16-lead TSSOP_EP package
Product Applications
Cellular communication systems
W-CDMA/CDMA/GSM/PCS/ISM transceivers
Fixed broadband access systems LMDS/MMDS
Wireless LAN
Wireless local loop
Digital TV/CATV modulators
Single sideband upconverter
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-AD8345AREZ-RL7 |
| Category | RF and Wireless |
| RF Modulators | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Discontinued at DigiKey |
| Function | Modulator |
| LO Frequency | 140MHz ~ 1GHz |
| RF Frequency | 140MHz ~ 1GHz |
| P1dB | 2.5dBm |
| Noise Floor | -155dBm/Hz |
| Output Power | 2dBm |
| Current - Supply | 78 mA |
| Voltage - Supply | 2.7V ~ 5.5V |
| Test Frequency | 800MHz |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
| Base Product Number | AD8345 |

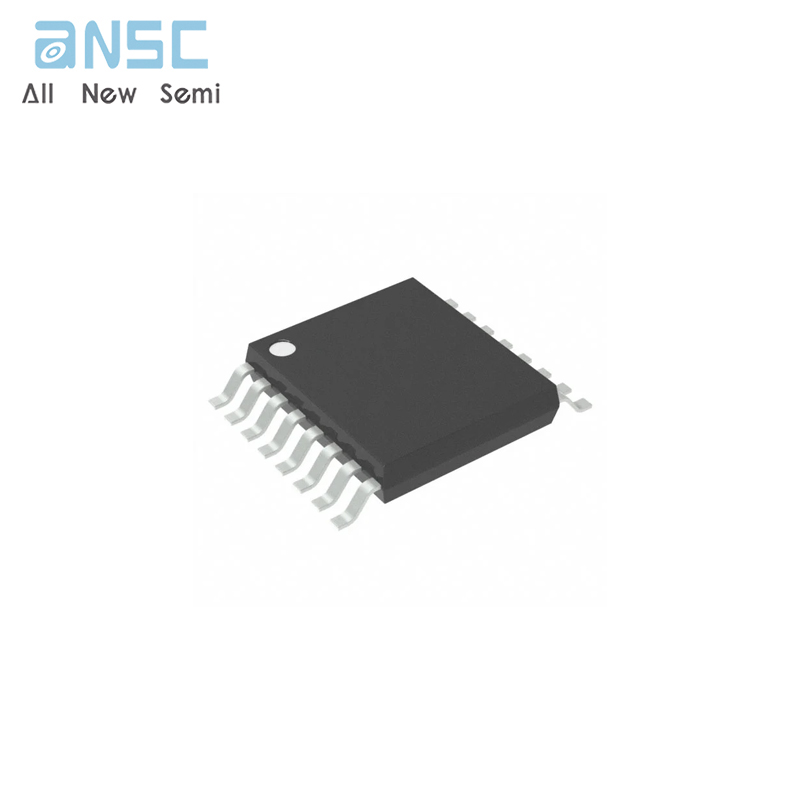

Product Photos
