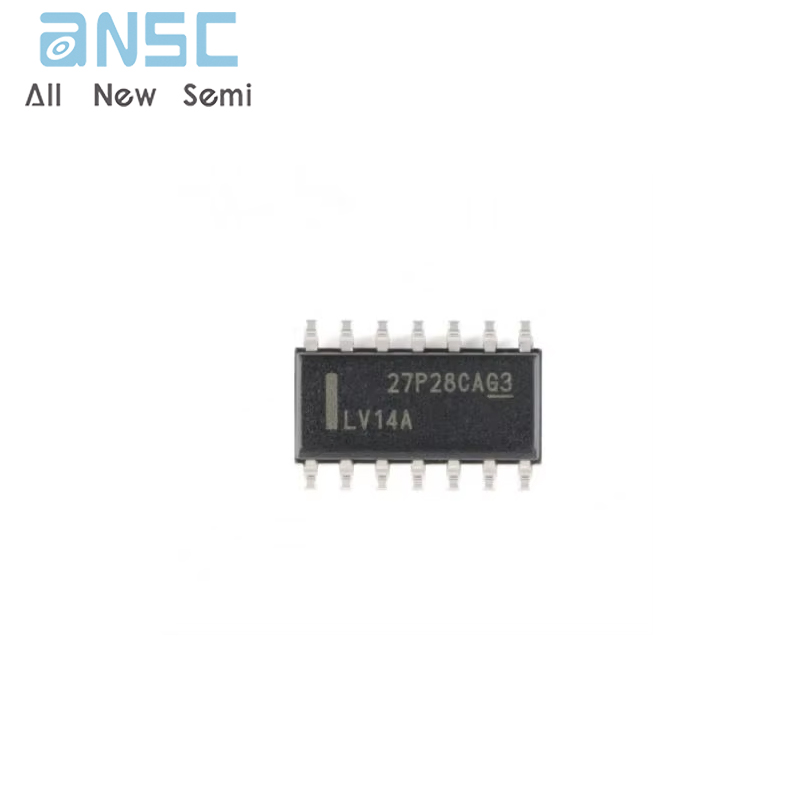

Hot-selling and scarce SN74LV14ADR HEX SCHMITT-TRIGGER INVERTERS SOP14
Manufacturer Product Number
SN74LV14ADR
Description
SN74LV14ADR HEX SCHMITT-TRIGGER INVERTERS SOP14
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These hex Schmitt-trigger inverters are designed for 2-V to 5.5-V VCC operation.
The ’LV14A devices contain six independent inverters. These devices perform the Boolean function Y = A
These devices are fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when they are powered down.
Product Features
2-V to 5.5-V VCC Operation
Max tpd of 10 ns at 5 V
Typical VOLP (Output Ground Bounce) <0.8 V at VCC = 3.3 V, TA = 25°C
Typical VOHV (Output VOH Undershoot) >2.3 V at VCC = 3.3 V, TA = 25°C
Support Mixed-Mode Voltage Operation on All Ports
Ioff Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 250 mA Per JESD 17
ESD Protection Exceeds JESD 22
− 2000-V Human-Body Model (A114-A)
− 200-V Machine Model (A115-A)
− 1000-V Charged-Device Model (C101)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74LV14ADR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74LV |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 20 µA |
| Current - Output High, Low | 12mA, 12mA |
| Input Logic Level - Low | 0.75V ~ 1.5V |
| Input Logic Level - High | 1.75V ~ 3.5V |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74LV14 |
