Product Descriptions

The MAX976/MAX978/MAX998 dual/quad/single, highspeed, low-power comparators are optimized for +3V/+5V single-supply applications. They achieve a 20ns propagation delay while consuming only 225µA supply current per comparator. The MAX998 features a low-power shutdown mode that places the output in a high-impedance state and reduces supply current to 1nA.

The MAX976/MAX978/MAX998 inputs have a commonmode voltage range that extends 200mV below ground. Their outputs are capable of Rail-to-Rail® operation without external pull-up circuitry, making these devices ideal for interface with CMOS/TTL logic. All inputs and outputs can tolerate a continuous short-circuit fault condition to either rail. The comparators’ internal hysteresis ensures clean output switching, even with slow-moving input signals.

For space-critical applications, the single MAX998 is available in a 6-pin SOT23 package, the dual MAX976 is available in an 8-pin µMAX package, and the quad MAX978 is available in a 16-pin QSOP package.

Product Features

♦ Single-Supply Operation Down to 2.7V

♦ 20ns Propagation Delay

♦ 225µA Supply Current

♦ 1nA Shutdown Supply Current

♦ Rail-to-Rail Outputs

♦ Ground-Sensing Inputs

♦ Internal Hysteresis Ensures Clean Switching

♦ Available in Space-Saving Packages:

SOT23-6 (MAX998)

µMAX (MAX976)

QSOP-16 (MAX978)

Product Applications

Battery-Powered Systems

Threshold Detectors/Discriminators

3V Systems

IR Receivers

Digital Line Receivers

​

Product Specification

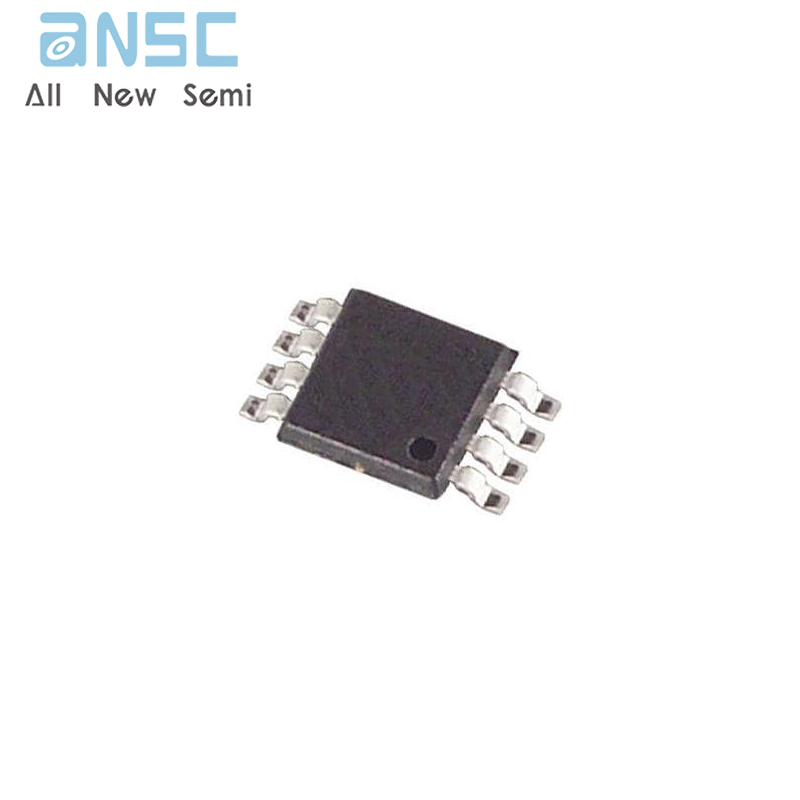

Product Photos

、
