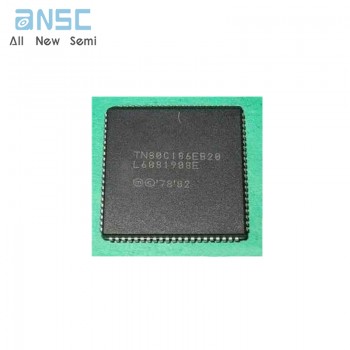

Hot-selling and scarce TN80C186EB20 16-BIT HIGH-INTEGRATION EMBEDDED PROCESSORS PLCC84 spot stock

Product Features

Y Integrated Feature Set

Ð Low-Power Static CPU Core

Ð Two Independent UARTs each with an Integral Baud Rate Generator

Ð Two 8-Bit Multiplexed I/O Ports

Ð Programmable Interrupt Controller

Ð Three Programmable 16-Bit Timer/Counters

Ð Clock Generator

Ð Ten Programmable Chip Selects with Integral Wait-State Generator

Ð Memory Refresh Control Unit

Ð System Level Testing Support (ONCE Mode)

Y Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O

Y Speed Versions Available (5V):

Ð 25 MHz (80C186EB25/80C188EB25)

Ð 20 MHz (80C186EB20/80C188EB20)

Ð 13 MHz (80C186EB13/80C188EB13)

Y Available in Extended Temperature Range (b40§ C to a85§ C)

Y Speed Versions Available (3V):

Ð 16 MHz (80L186EB16/80L188EB16)

Ð 13 MHz (80L186EB13/80L188EB13)

Ð 8 MHz (80L186EB8/80L188EB8)

Y Low-Power Operating Modes:

Ð Idle Mode Freezes CPU Clocks but keeps Peripherals Active

Ð Powerdown Mode Freezes All Internal Clocks

Y Supports 80C187 Numeric Coprocessor Interface (80C186EB PLCC Only)

Y Available In:

Ð 80-Pin Quad Flat Pack (QFP)

Ð 84-Pin Plastic Leaded Chip Carrier (PLCC)

Ð 80-Pin Shrink Quad Flat Pack (SQFP)

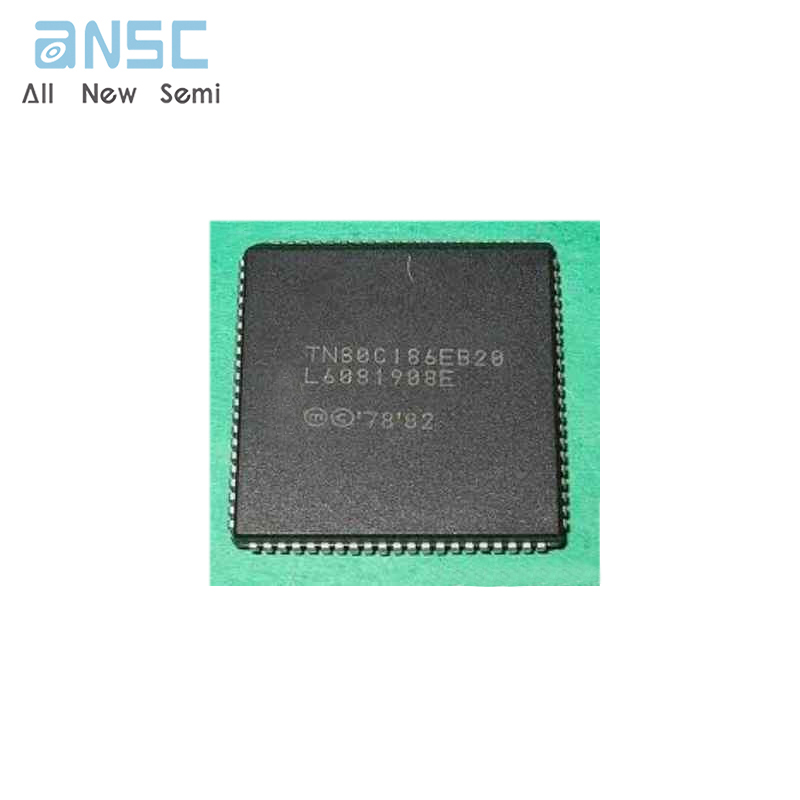

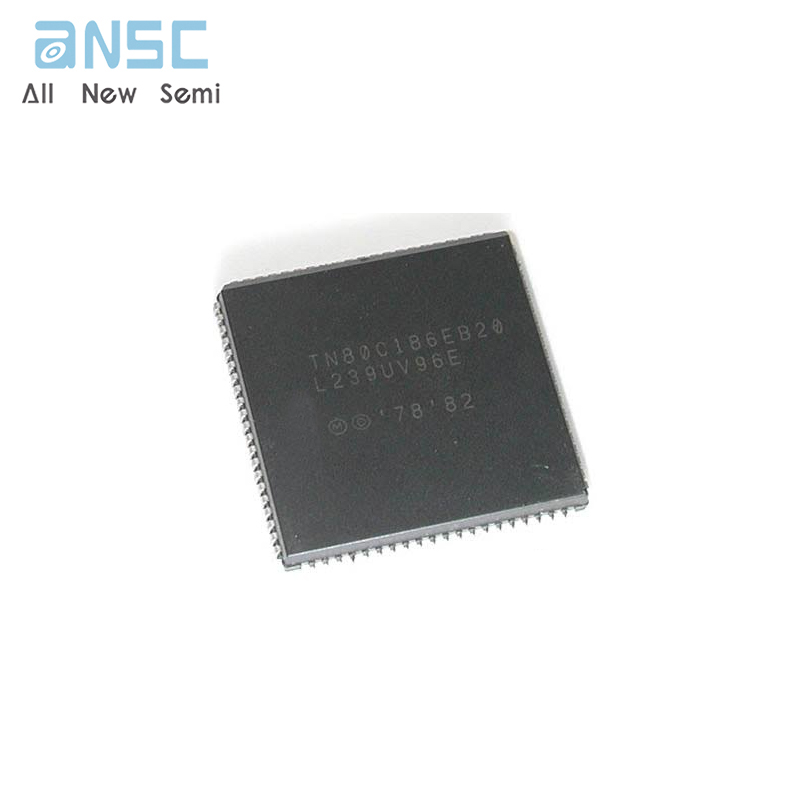

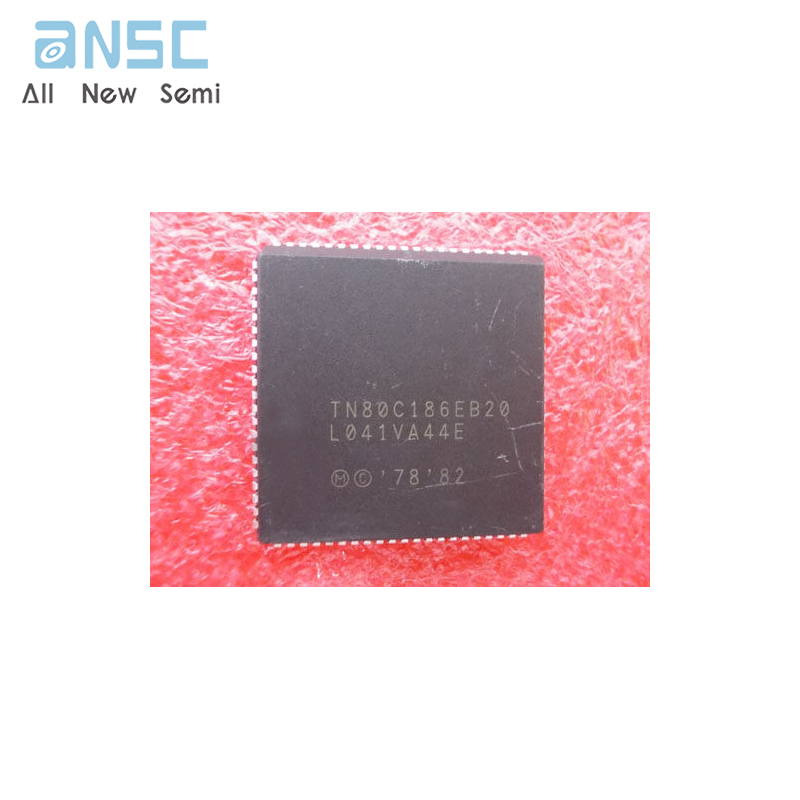

Product Photos

For more product information, please download the PDF
