Hot-selling and scarce XCF16PFSG48C In System Programmable Configuration PROM for FPGAs 16Mb 48-CSP spot stock
Manufacturer Product Number
XCF16PFSG48C
Description
XCF16PFSG48C In System Programmable Configuration PROM for FPGAs 16Mb 48-CSP spot stock
Package Condition
TRAY
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Low-Power Advanced CMOS NOR Flash Process
• Endurance of 20,000 Program/Erase Cycles
• Operation over Full Industrial Temperature Range (–40°C to +85°C)
• IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing
• JTAG Command Initiation of Standard FPGA Configuration
• Cascadable for Storing Longer or Multiple Bitstreams
• Dedicated Boundary-Scan (JTAG) I/O Power Supply (VCCJ)
• I/O Pins Compatible with Voltage Levels Ranging From 1.8V to 3.3V
• Design Support Using the Xilinx ISE® Alliance and Foundation™ Software Packages
• XCF01S/XCF02S/XCF04S
• 3.3V Supply Voltage
• Serial FPGA Configuration Interface
• Available in Small-Footprint VO20 and VOG20 Packages
• XCF08P/XCF16P/XCF32P
• 1.8V Supply Voltage
• Serial or Parallel FPGA Configuration Interface
• Available in Small-Footprint VOG48, FS48, and FSG48 Packages
• Design Revision Technology Enables Storing and Accessing Multiple Design Revisions for Configuration
• Built-In Data Decompressor Compatible with Xilinx Advanced Compression Technology
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-XCF16PFSG48C |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Configuration PROMs for FPGAs | |
| Manufacturer | - |
| Packaging | Tray |
| Part Status | Obsolete |
| DigiKey Programmable | Not Verified |
| Programmable Type | In System Programmable |
| Memory Size | 16Mb |
| Voltage - Supply | 1.65V ~ 2V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFBGA, CSPBGA |
| Supplier Device Package | 48-CSP (8x9) |
| Base Product Number | XCF16 |

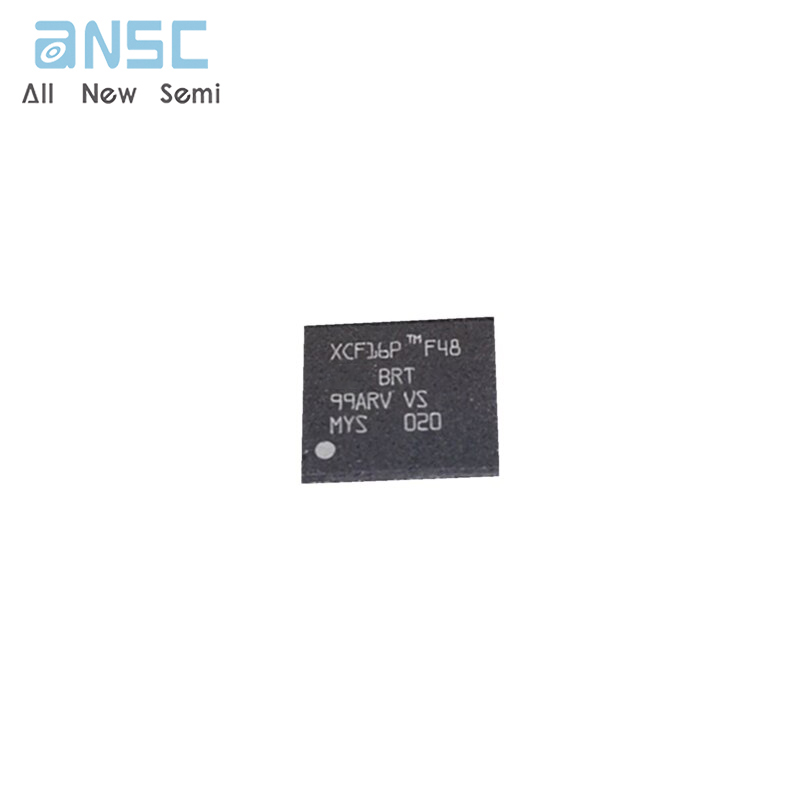

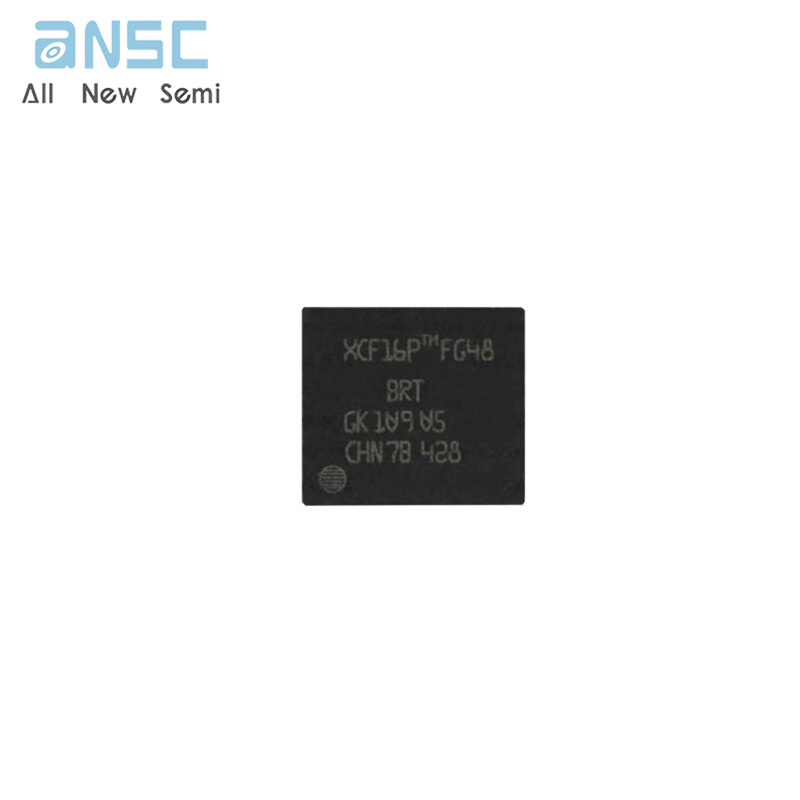

Product Photos
