Hot-selling and scarce ADL5534ACPZ-R7 20 MHz to 500 MHz IF Gain Block QFN16 spot stock

Product Descriptions

The ADL5534 contains two broadband, fixed-gain, linear amplifiers in an 4x4 mm LFCSP package and operates at frequencies up to 500 MHz. The device can be used in a wide variety of wired and wireless devices including cellular, GSM and WCDMA, and broadband applications.

The ADL5534 has a fixed gain 20 dB and is stable over frequency, temperature, power supply and from device to device. It achieves an OIP3 of 41.8 dBm with an output compression point of +20.2 dBm and a noise figure of 2.5 dB. The ADL5534 is single-ended and internally matched to 50 Ω with an input return loss of 10 dB. Only input/output ac-

coupling capacitors, a power supply decoupling capacitor and external inductor are required for operation.

​

This IF amplifier operates with supply voltage of +5V, consuming 90 mA of supply current per amplifier.

Fabricated on a GaAs HBT process and has an ESD rating of1000 V (Class 1C). The device is packaged in a 4mm x 4mm LFCSP that uses an exposed paddle for excellent thermal impedance and operates from −40°C to +85°C. A fully populated evaluation board is available.

Product Features

Fixed gain of 20 dB

Operation up to 500 MHz

+41.8 dBmOIP3 at 70 MHz

Noise Figure 2.5 dB at 70 MHz

Temperature and power supply stable

Power supply: 5 V

Power supply current: 90 mA per amplifier

1000 V ESD (Class 1C)

Product Specifications

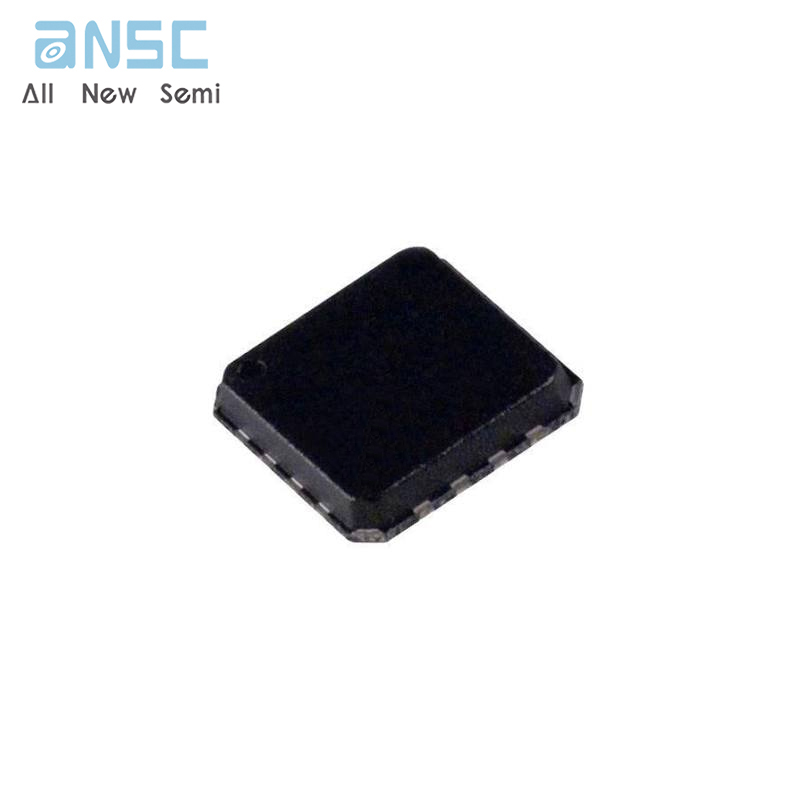

Product Photos

For more product information, please download the PDF
