Hot-selling and scarce AD9066JR-REEL Dual 6-Bit, 60 MSPS Monolithic A/D Converter SOP28 spot stock

Product Descriptions

The AD9066 is a dual 6-bit ADC that has been optimized for low-cost in-phase and quadrature (I and Q) demodulators. Primary applications include digital direct broadcast satellite applications where broadband quadrature phase shift keying(QPSK) modulation is used. In these receivers the recovered signal is separated into I and Q vector components and digitized.

To reduce total system cost and power dissipation, the AD9066 provides an internal voltage reference and operates from a single +5 volt power supply. Digital outputs are CMOS compatible and rated to 60 MSPS conversion rates. The digital input (ENCODE) utilizes a CMOS input stage with a TTL compatible (1.4 V) threshold.

The AD9066 is housed in a 28-lead SOIC and a 28-lead SSOP package and is available in two temperature grades. The AD9066JR is rated for operation over the 0°C to 70°C commercial temperature range. The AD9066AR/ARS is rated for the–40°C to +85°C industrial temperature range.

The internal voltage reference insures that the analog input is biased to midscale with low offset when driven from an accoupled source. In dc-coupled applications, the midscale voltage reference can be used to control external biasing amplifiers to minimize offsets due to variations in temperature or supply voltage.

Product Features

Two Matched ADCs on Single Chip

CMOS-Compatible I/O

Low-Power (400 mW) Dissipation

Single +5 V Supply

On-Chip Voltage Reference

Self-Biased for AC-Coupled Inputs

28-Lead SOIC and SSOP Packages

Product Applications

Direct Broadcast Satellite (DBS) Receivers

QAM Demodulators

Wireless LANs

VSAT Receivers

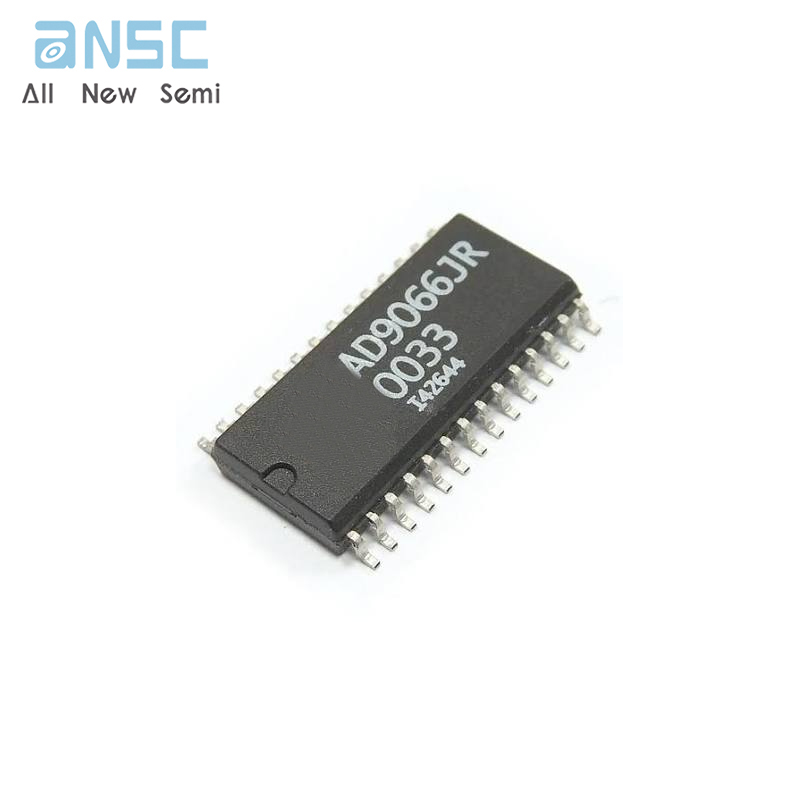

Product Photos
