TC74ACT14F CMOS Digital Integrated Circuit Silicon Monolithic Hex Schmitt Inverter SOP14 spot stock

Product Descriptions

The TC74ACT14 is an advanced high speed CMOS SCHMITT  INVERTER fabricated with silicon gate and double-layer metal  wiring C2MOS technology.

​

It achieves the high speed operation similar to equivalent  Bipolar Schottky TTL while maintaining the CMOS low power  dissipation.

This device may be used as a level converter for interfacing  TTL or NMOS to High Speed CMOS. The inputs are compatible  with TTL, NMOS and CMOS output voltage levels.

Pin configuration and function are the same as the  TC74ACT04 but the inputs have hysteresis and with its schmitt  trigger function, the TC74ACT14 can be used as a line receivers  which will receive slow input signals.

All inputs are equipped with protection circuits against static  discharge or transient excess voltage.

Product Features

• High speed: tpd = 6.5 ns (typ.) at VCC = 5 V

• Low power dissipation: ICC = 4 μA (max) at Ta = 25°C

• Compatible with TTL outputs: VIL = 0.8 V (max) VIH = 2.0 V (min)

• Symmetrical output impedance: |IOH| = IOL = 24 mA (min) Capability of driving 50 Ω transmission lines.

• Balanced propagation delays: tpLH ∼− tpHL

• Wide operating voltage range: VCC (opr) = 2 V to 5.5 V

• Pin and function compatible with 74F14

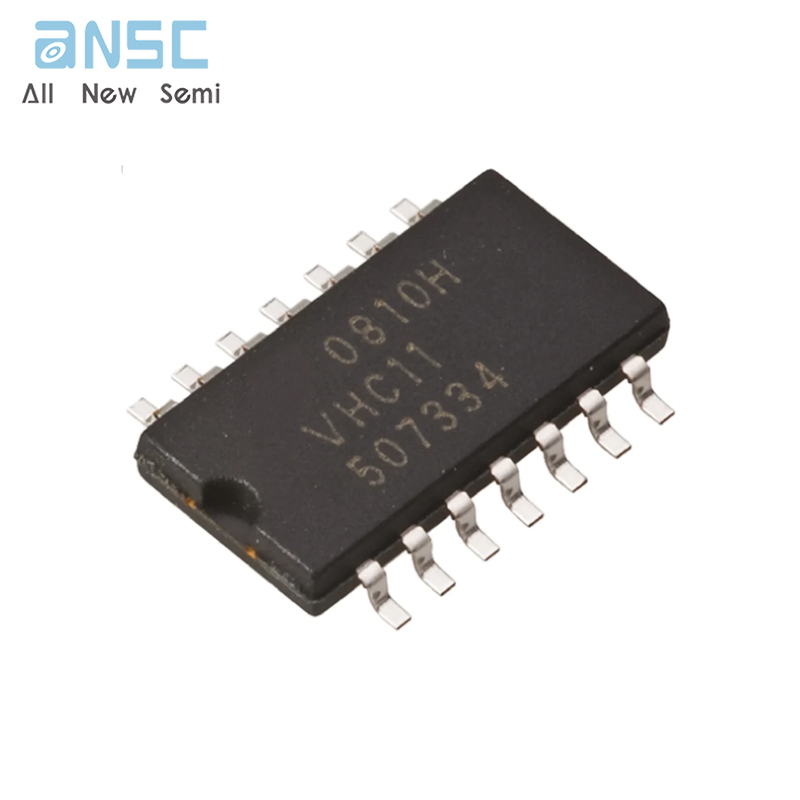

Product Photos

For more product information, please download the PDF
