TLP124(F) Office Machine Programmable Controllers AC / DC.Input Module Telecommunication SOP4 spot stock
Manufacturer Product Number
TLP124(F)
Description
TLP124(F) Office Machine Programmable Controllers
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The TOSHIBA mini flat coupler TLP124 is a small outline coupler, suitable for surface mount assembly.
TLP124 consists of a photo transistor optically coupled to a gallium arsenide infrared emitting diode.
Product Features
Collector−emitter voltage: 80 V min.
Current transfer ratio: 100% min.
Rank BV: 200% min.
Isolation voltage: 3750Vrms min.
UL recognized: UL1577, file No. E67349
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TLP124(F) |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Transistor, Photovoltaic Output Optoisolators | |
| Manufacturer | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 100% @ 1mA |
| Current Transfer Ratio (Max) | 1200% @ 1mA |
| Turn On / Turn Off Time (Typ) | 10µs, 8µs |
| Rise / Fall Time (Typ) | 8µs, 8µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (4 Leads), Gull Wing |
| Supplier Device Package | 6-MFSOP, 4 Lead |
| Base Product Number | TLP124F |

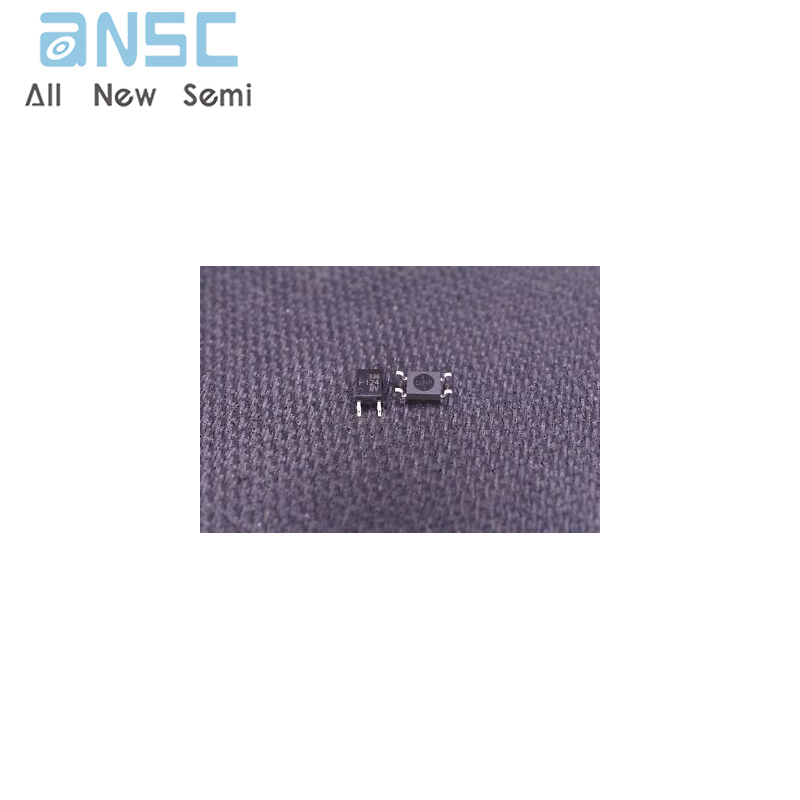

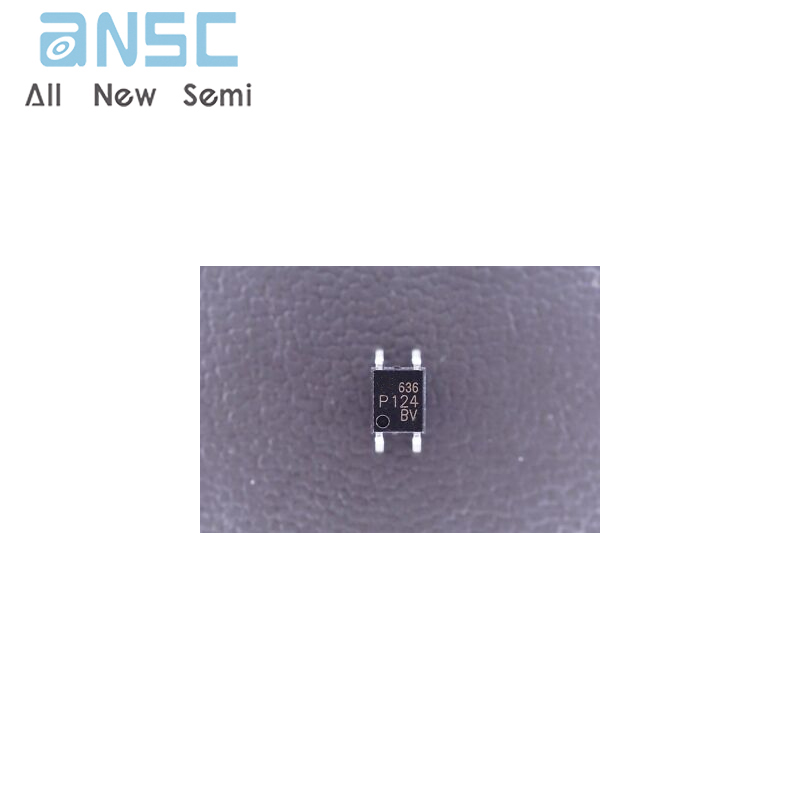

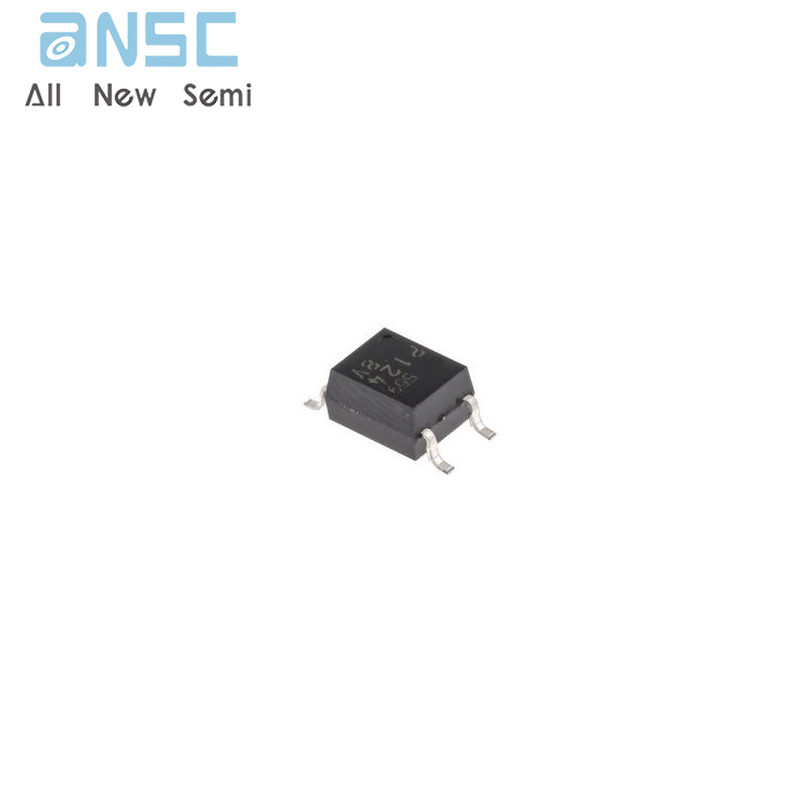

Product Photos
