Hot-selling and scarce TPIC5421L H-BRIDGE GATE-PROTECTED LOGIC-LEVEL POWER DMOS ARRAY DIP16 spot stock

Product Descriptions

The TPIC5421L is a monolithic gate-protected logic-level power DMOS array that consists of four electrically isolated N-channel enhancementmode DMOS transistors, two of which are configured with common source. Each transistor features integrated high-current zener diodes (ZCXa and ZCXb) to prevent gate damage in the event that an overstress condition occurs. These zener diodes also provide up to 4000 V of ESD protection when tested using the human-body model of a 100-pF capacitor in series with a 1.5-kΩ resistor.

The TPIC5421L is offered in a 20-pin wide-body surface-mount (DW) package and a 16-pin thermally-enhanced dual-in-line (NE) package and is characterized for operation over the case temperature of −40°C to 125°C.

Product Features

• Low rDS(on) . . . 0.4 Ω Typ

• Voltage Output . . . 60 V

• Input Protection Circuitry . . . 18 V

• Pulsed Current . . . 3 A Per Channel

• Extended ESD Capability . . . 4000 V

• Direct Logic-Level Interface

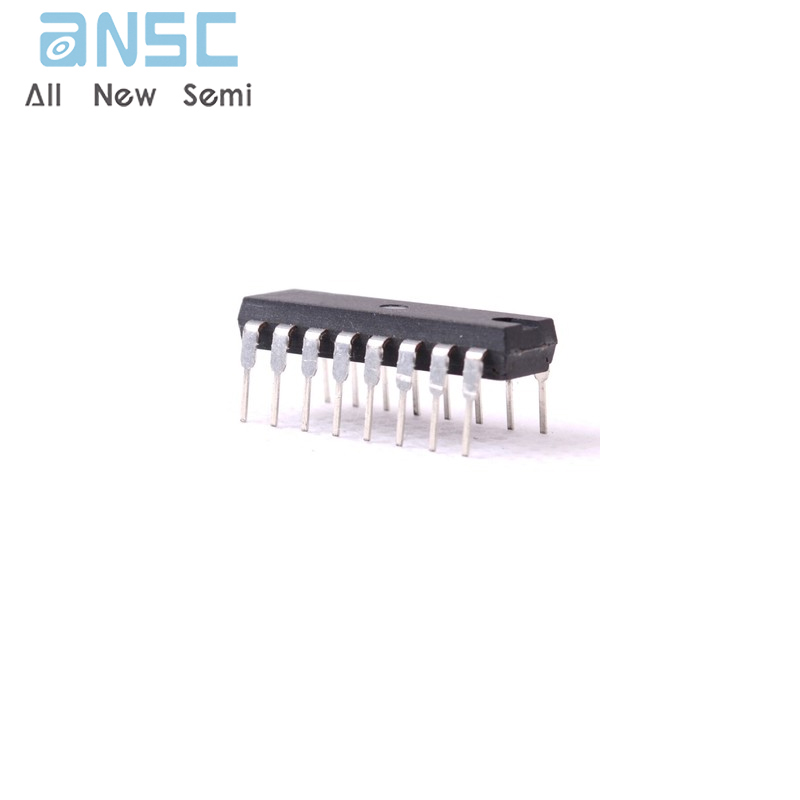

Product Photos

For more product information, please download the PDF
