Hot-selling and scarce BMR4613001/001C Input 4.5-14 V, Output up to 12A / 60W LGA spot stock
Manufacturer Product Number
BMR4613001/001C
Description
BMR4613001/001C Input 4.5-14 V, Output up to 12A / 60W LGA spot stock
Package Condition
TaPe & Reel
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
• For narrow board pitch applications (15 mm/0.6 in)
• Pre-bias start-up and shut down
• Monotonic & Soft start Power up
• Input under voltage shutdown
• OTP, output OVP, OCP
• Remote control & Power Good
• Differential sense pins
• Voltage setting via pin-strap or PMBus
• Advanced Configurable via Graphical User Interface
• ISO 9001/14001 certified supplier
• Highly automated manufacturing ensures quality
Product Features
• Small package
12.2 x 12.2 x 8.0 mm (0.48 x 0.48 x 0.315 in)
• 0.6 V - 5.0 V output voltage range
• High efficiency, typ. 96 % at 12Vin, 5Vout and 80% load
• Configuration Control and Monitoring via PMBus
• Adaptive compensation of PWM control loop & fast loop transient response
• Synchonization input & phase spreading/interleaving
• Voltage Tracking & Voltage margining
• MTBF 24 Mh
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BMR4613001/001C |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | - |
| Series | BMR461 (60W) |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Non-Isolated PoL Module, Digital |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.6 ~ 5V |
| Current - Output (Max) | 12A |
| Power (Watts) | 60 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, PMBus™, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 120°C (With Derating) |
| Efficiency | 95.8% |
| Mounting Type | Surface Mount |
| Package / Case | 32-BLGA Module |
| Size / Dimension | 0.48" L x 0.48" W x 0.31" H (12.2mm x 12.2mm x 8.0mm) |
| Control Features | Enable, Active Low |
| Approval Agency | CB, CSA, IEC, TUV, UL |
| Standard Number | 62368-1 |
| Base Product Number | BMR461 |

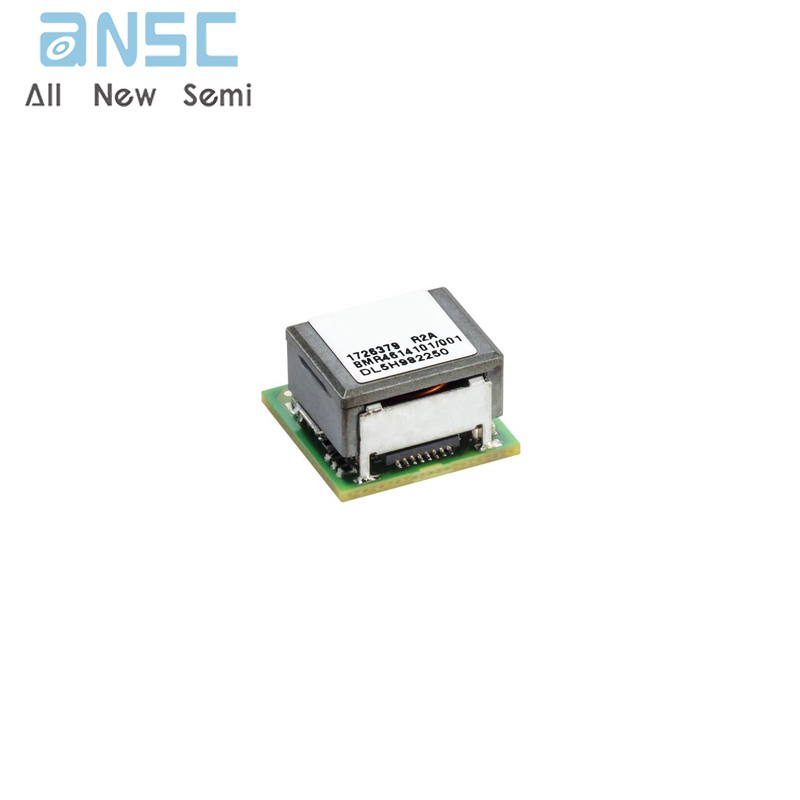

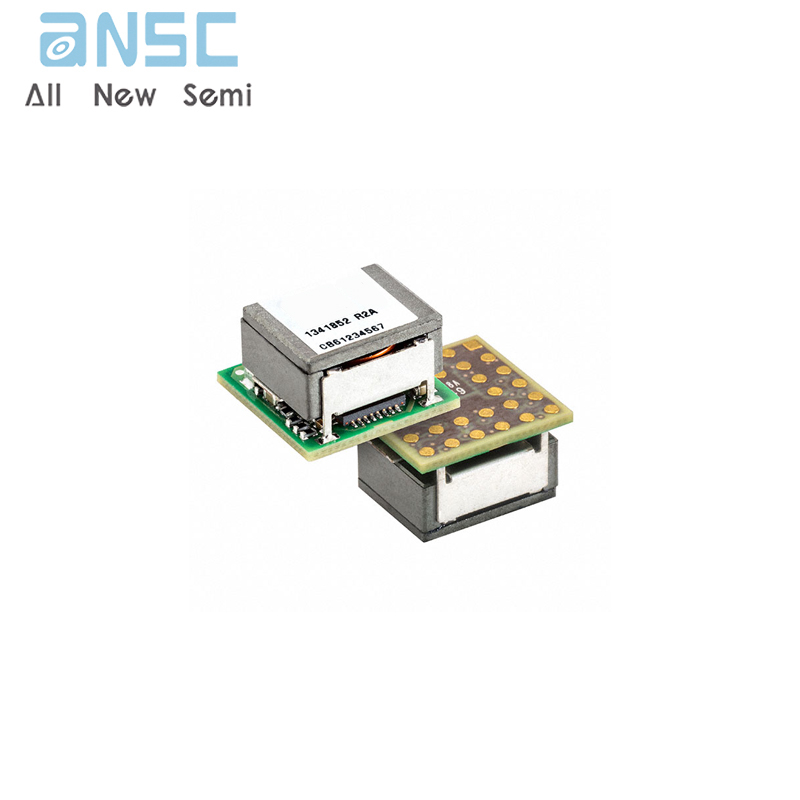

Product Photos
For more product information, please download the PDF
